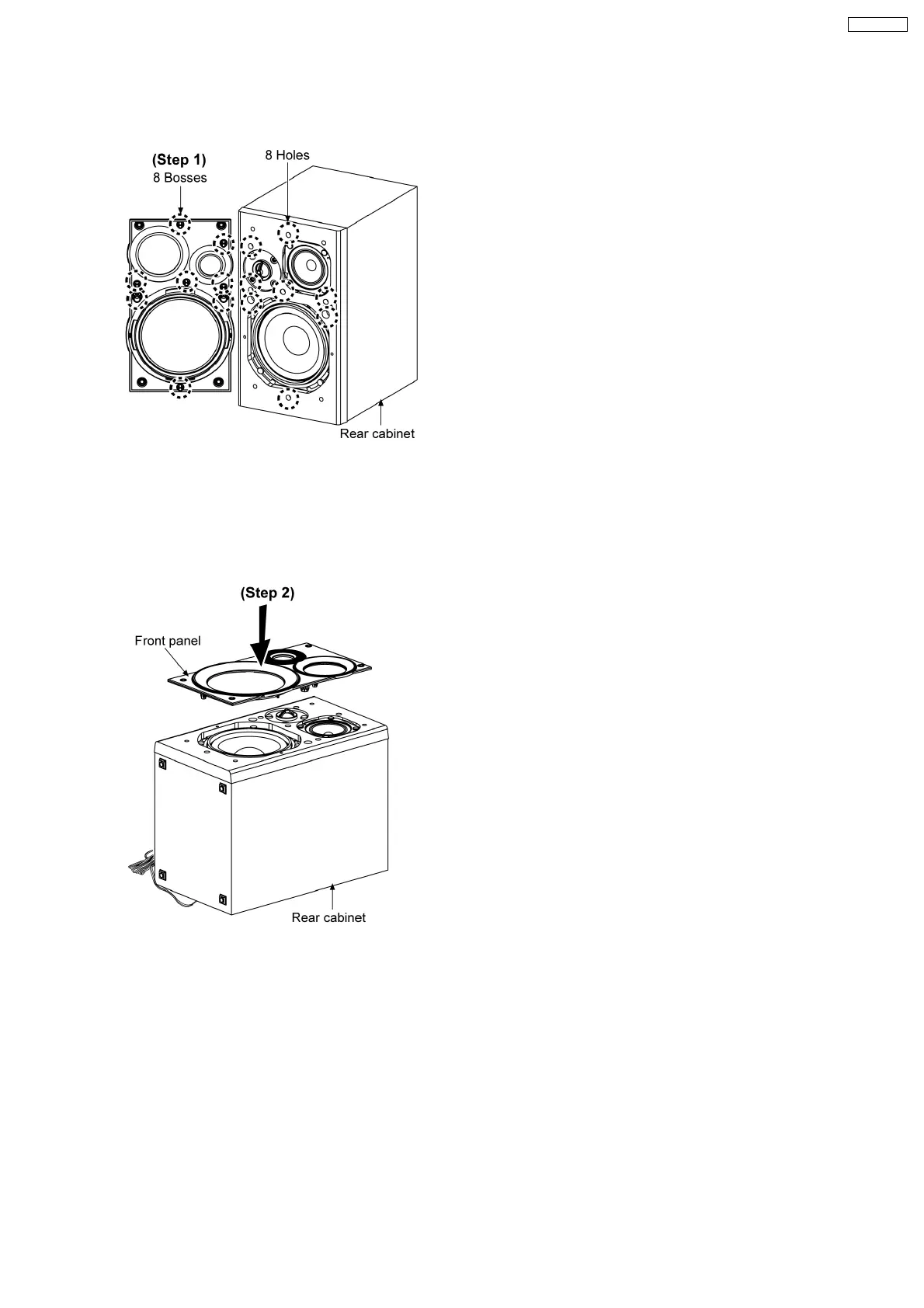

2.7. Assembly of Speaker Unit
Step 1: Scrape off using the scriber and clean up the remaining
glue at the 8 bosses and 8 holes of the front panel and rear
cabinet and replace with new glue.
Step 2: Fix the front panel firmly back to the rear cabinet.
9
SB-PM54GN
