Panasonic SC-AK45 - Optional Antenna Connections; External Unit Connectivity

For Australia and NewZealand
750 coxial cable
(not included)
r" JA “ r ~|
[ jaLOof of s ,"
i xMk
For others
FM outdoor antenna
(not included)
Shield braid
n 15mm
Core wire
FM outdoor antenna [;
(not included) r

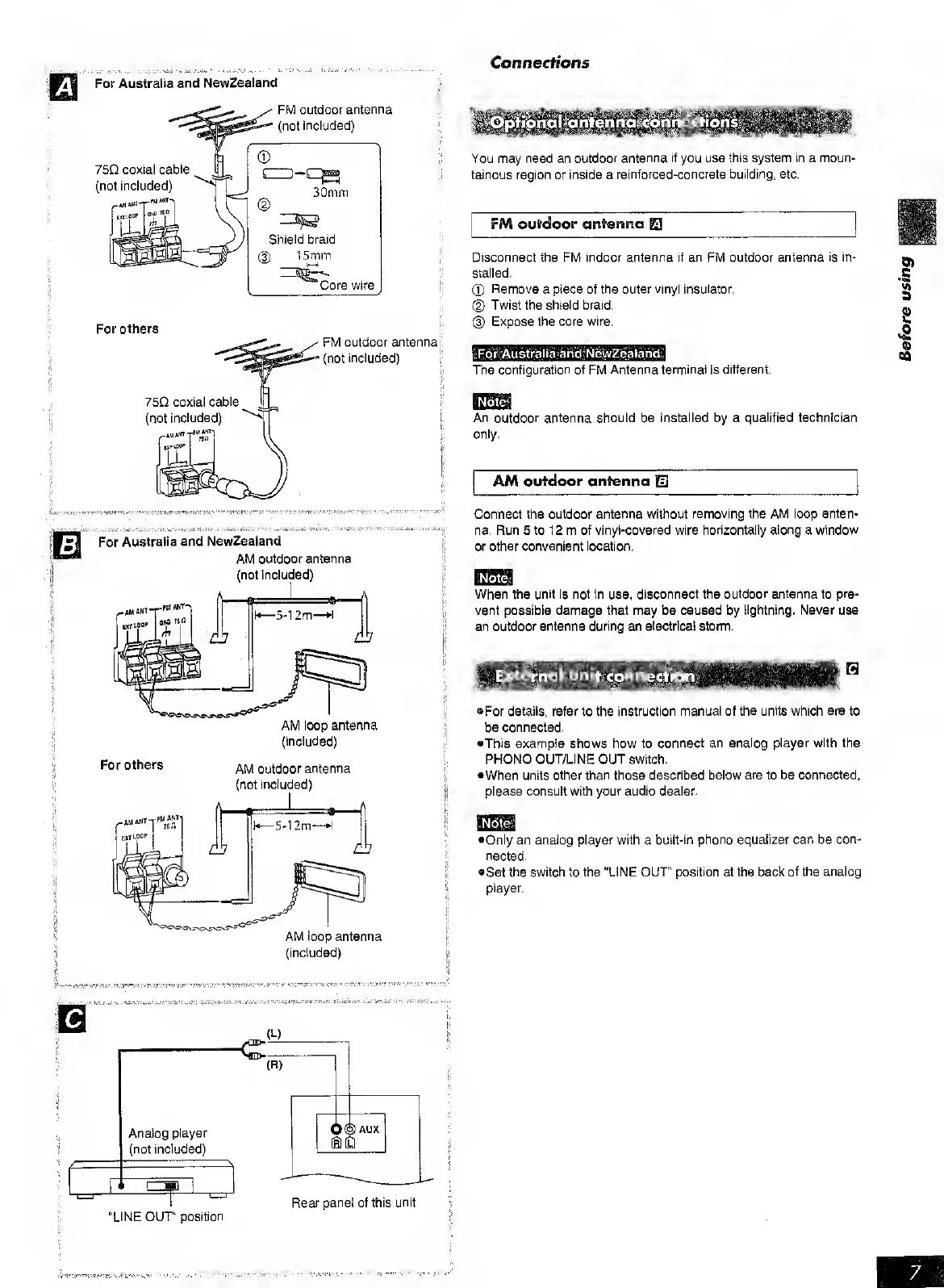

Connections
Optional antenna ccihiiections
You may need an outdoor antenna if you use this system in a moun¬
tainous region or inside a reinforced-concrete building, etc.
Disconnect the FM indoor antenna if an FM outdoor antenna is in¬
stalled.
<D Remove a piece of the outer vinyl insulator.
(2) Twist the shield braid.
(3) Expose the core wire.
I For Australia and NewZealand
The configuration of FM Antenna terminal is different.
750 coxial cable
(not included) An outdoor antenna should be installed by a qualified technician
only.
AM outdoor antenna El]
For Australia and NewZealand
AM outdoor antenna
(not included)
I ^
For others
AM loop antenna
(included)
AM outdoor antenna
(not included)
tn—5-12m— ^ fl
Connect the outdoor antenna without removing the AM loop anten¬
na. Run 5 to 12 m of vinyl-covered wire horizontally along a window
or other convenient location.
When the unit is not in use, disconnect the outdoor antenna to pre¬
vent possible damage that may be caused by lightning. Never use
an outdoor antenna during an electrical storm.
External unit connection
®For details, refer to the instruction manual of the units which are to
be connected.
•This example shows how to connect an analog player with the
PHONO OUT/LINE OUT switch.
•When units other than those described below are to be connected,
please consult with your audio dealer.
•Only an analog player with a built-in phono equalizer can be con¬
nected.
• Set the switch to the “LINE OUT” position at the back of the analog
player.
AM loop antenna
(included)
Analog player
(not included)
"LINE OUT’ position
Rear panel of this unit
Before
using
