Panasonic SC-HT17 - Control Guide and Display Indicators

Operations
16
RQT7953

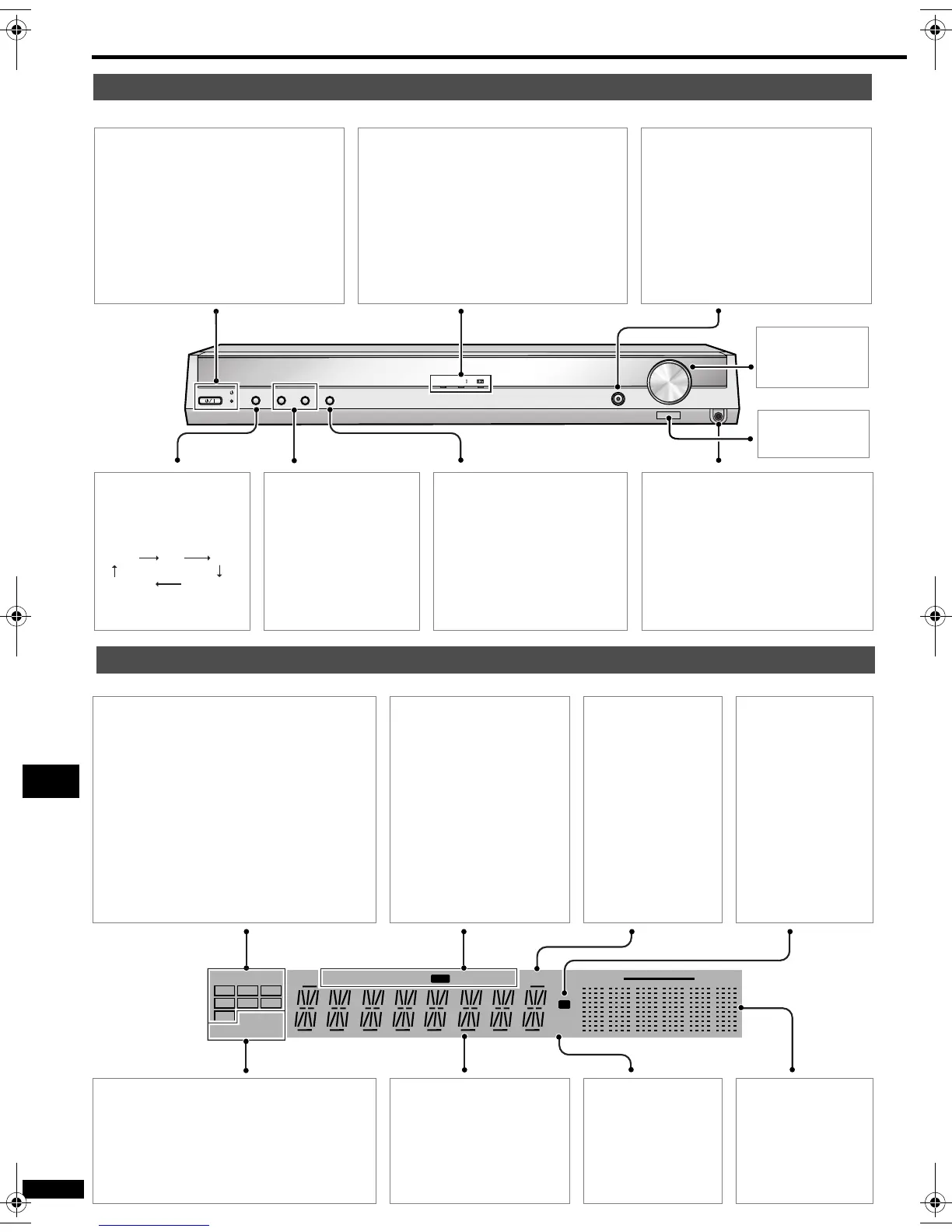

Control guide
Main unit
Display
[DIGITAL INPUT]
Program format indicators
Show the channels contained in the digital
input signal.
They do not light when input is analogue.
L: Front left channel
C: Center channel
R: Front right channel
LS: Surround left channel
S: If the surround channel is monaural
RS: Surround right channel
LFE (Low Frequency Effects): Deep-bass
effect.
[TUNED, ST, MONO]
Radio indicators
TUNED: A station is tuned.
ST: A stereo FM broadcast
is tuned.
MONO: You have switched
to monaural mode to
improve reception.
[RDS, PS, PTY]
(For continental Europe
and the United Kingdom)
Shows the current RDS
display mode.
[SLEEP]
Sleep timer indicator.
[M]
Flashes or lights
during presetting.
[C.FOCUS, 2CH MIX, SFC]
C.FOCUS: Appears when you are using
Center Focus
2CH MIX: Appears when you are listening to a
multi-channel source with headphones
SFC: Appears when you are using an SFC
mode
General display
Shows the input mode, radio
frequency and other general
information.
[kHz, MHz]
Frequency unit
indicators
kHz: AM, or PCM
sampling frequency
MHz: FM
Spectrum
analyzer display
TUNED
MONO PS PTY SLEEP ST
kHz
MHz
DIGITAL INPUT
SFC
M
C.FOCUS
L
C
R
LS RS
S
LFE
100Hz
10kHz
2CH MIX
RDS
Standby indicator [^]
When the unit is connected to the AC
mains supply, this indicator lights up in
standby mode and goes out when the
unit is turned on.
Standby/on switch [8]
Press to switch the unit from on to
standby mode or vice versa. In standby
mode, the unit is still consuming a small
amount of power.
[% DIGITAL, % PL II, dts]
Lights to indicate the source’s input signal
and decoding format used.
% DIGITAL: Dolby Digital sources
% PL II: Dolby Pro LogicII decoder is
being used
dts: DTS sources
[H.BASS]
For enhancing the bass sound.
The indicator lights when the feature
is on.
[INPUT SELECTOR]
For selecting input.
The display changes as
follows:
[2 TUNE 1]
For tuning the radio and
presetting channels.
[MENU]
• For entering various
settings.
• Press and hold to exit the
MENU mode.
[PHONES]
Headphone jack
Plug type: 3.5 mm stereo
• Sound does not come from the
speakers if you connect
headphones.
• Avoid listening for prolonged
periods of time to prevent hearing
damage.
INPUT SELECTOR
2
2
TUNE
MENU
%DIGITAL
%PL
H. BASS
DOWN
VOLUME
PHONES
UP
Remote control
signal sensor
[VOLUME]
Volume control.
TUNER TVDVD
DVR/VCRGAME/AUX
