Simple Setup
∫ Preventing the speakers from falling
≥ You will need to obtain the appropriate screw eyes to match the
walls or pillars to which they are going to be fastened.
≥ Consult a qualified housing contractor concerning the
appropriate procedure when attaching to a concrete wall or a
surface that may not have strong enough support. Improper
attachment may result in damage to the wall or speakers.

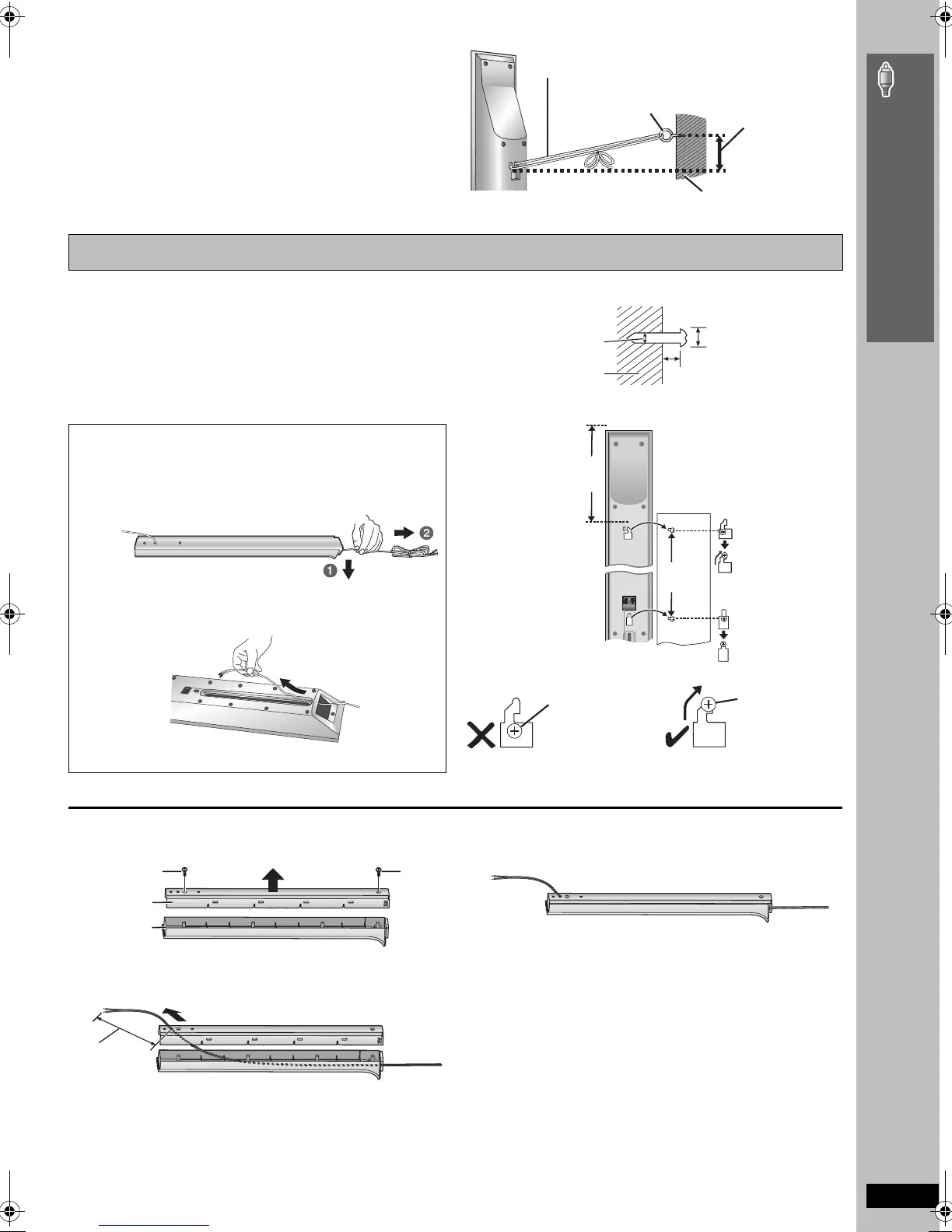

∫ Attaching to a wall
You can attach the front speakers to a wall.
≥ The wall or pillar on which the speakers are to be attached
should be capable of supporting over 15 kg per screw. Consult a
qualified building contractor when attaching the speakers to a
wall. Improper attachment may result in damage to the wall and
speakers.
≥ When mounting the speakers to a wall, we recommend using a
string (not included) to prevent it from falling.
1 Drive a screw (not included) into the wall.
2 Fit the speaker securely onto the screw(s) with the hole(s).
Reattaching the speaker cable to the stand
1 Remove the two screws from the stand, and remove the metal cover.
2 Pull the cable out about 40 cm from the hole in the metal cover, and
insert the plastic cover.
3 Insert the metal cover so it does not disturb the cable and close tightly
with the two screws.
String (not included)
Thread from the wall to the speaker and tie tightly.
Rear of the speaker
Wall
Approx.
150 mm
Screw eye
(not included)
Speaker installation options
Preparation for front speakers
1 Pull down the longer part of the cable to release the cable from
the groove inside the stand, and then pull the speaker cable out
from the stand.
2
Feed the cable into the bottom of the speaker and through the slot at
the rear.
3 Connect the cable (➜ page 6).
‰7.5 to 9.5 mm
5.0 to 7.0 mm
Wall or pillar
‰4.0 mm
255 mm
320 mm
In this position, the
speaker will likely
fall if moved to the
left or right.
Move the speaker
so that the screw
is in this position.
e.g.
Screw
Metal cover
Screw
Plastic cover
Approx. 40 cm
Assembling the front speakers
