Make sure that the screw used and the wall are strong enough to support the weight of at least 33 kg.
The screws and other items are not supplied as the type and size will vary with each installation.
≥Refer to step 3 for details about the required screws.
≥Be sure to attach the fall prevention cord as a secondary safety measure.
Additionally required accessories (commercially available)
≥Screws for wall mounting ............................................................................................................. k 2
≥Fall prevention cord...................................................................................................................... k 1
≥Screw eye (to attach the fall prevention cord) .............................................................................. k 1
≥ Use a cord that is capable of supporting over 10 kg (with a diameter of about 2 mm).

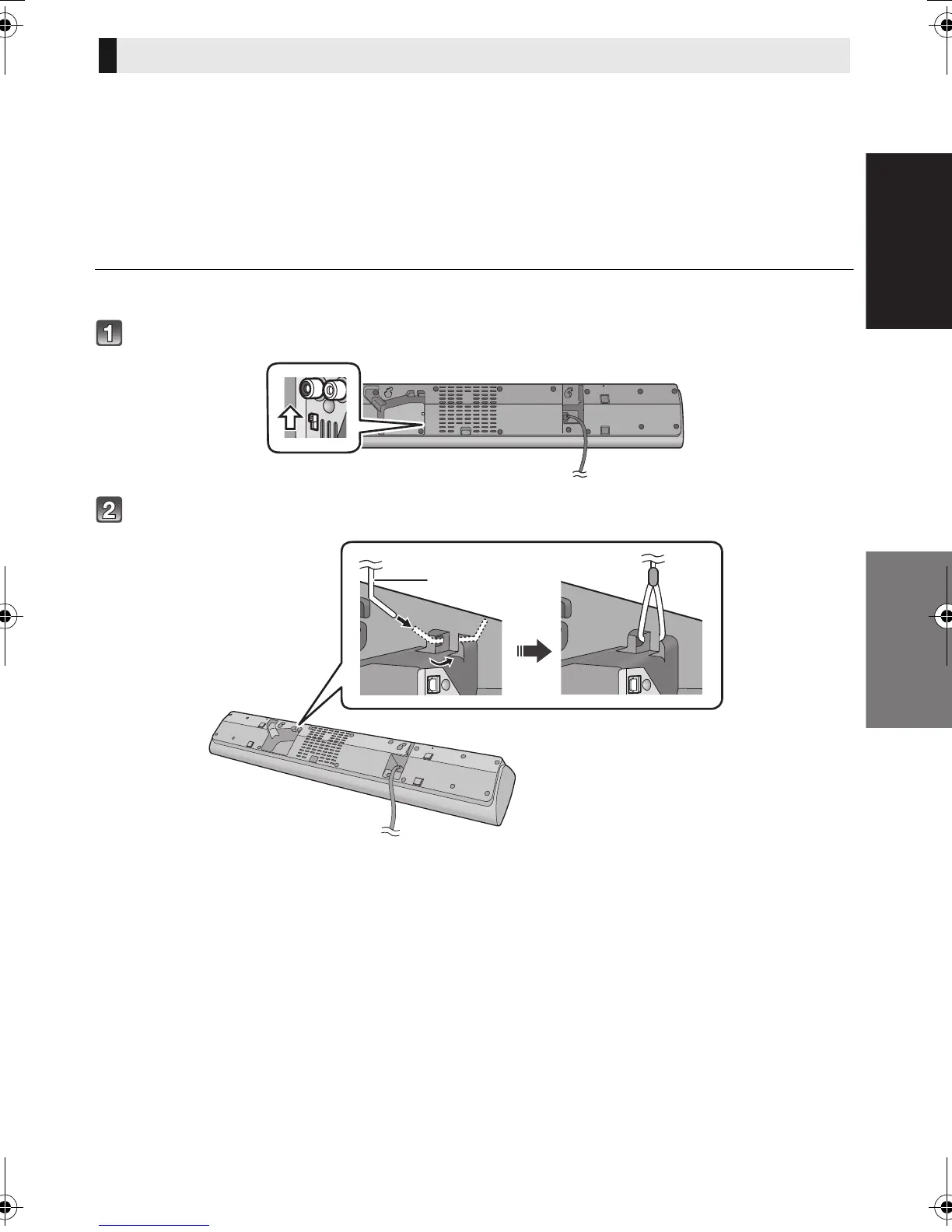

Slide the MULTI ANGLE switch to “WALL MOUNT”.
Attach the cord to the main unit.
A Cord
§
§ If the cord cannot be threaded through the holes, try bending the cord in 2 locations,
about 5 mm apart from the tip, at an angle of 45
o
(as
illustrated above).
When attaching the main unit to a wall
