Panasonic SC-HTB18 User Manual

Getting started
VQT5J46
9
Before use
Getting started

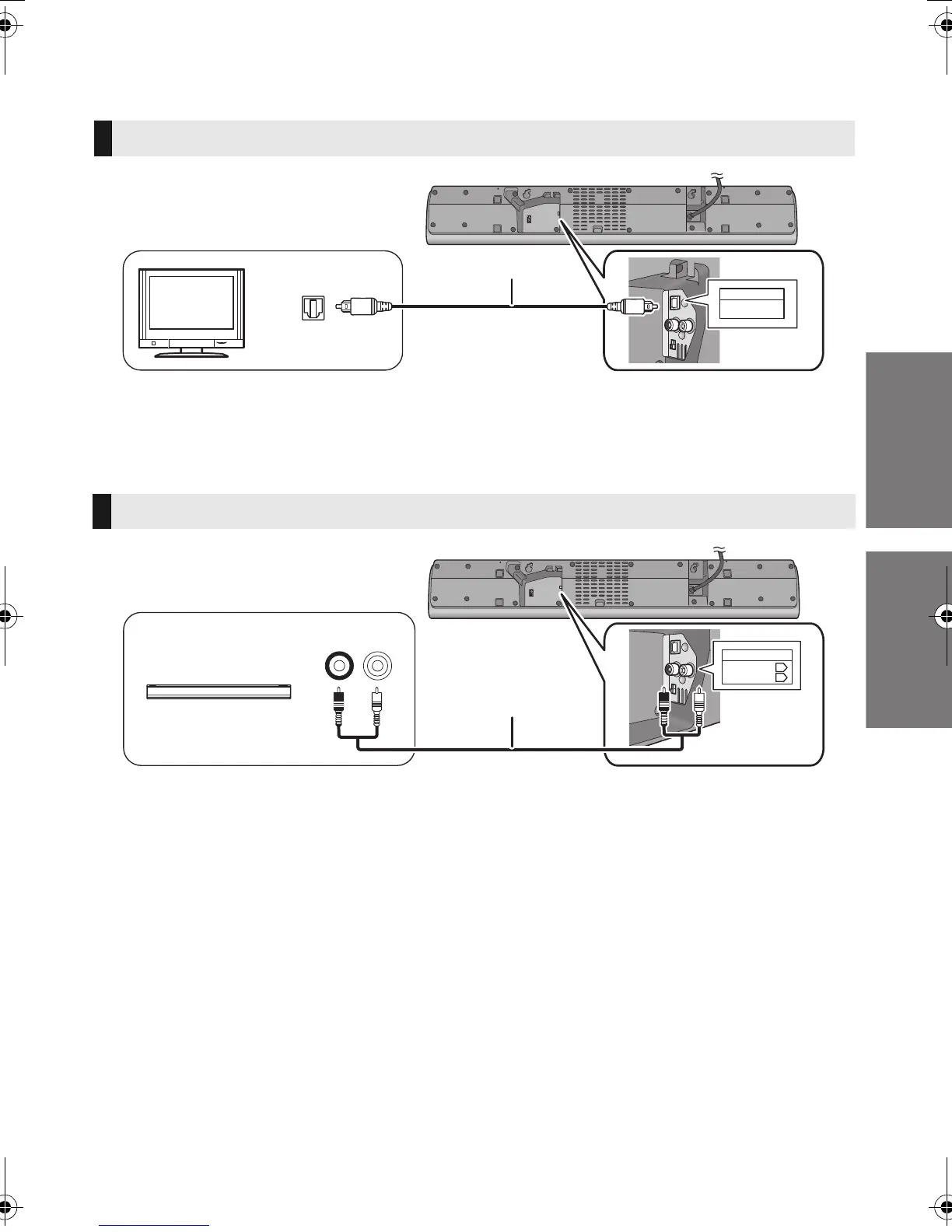

Step 1 Connections
≥Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC mains lead until all other connections are completed.
A Optical digital audio cable
≥ When you use the optical digital audio cable, insert the tip correctly into the terminal.
≥ Do not bend the optical digital audio cable.
≥ The optical input supports PCM only.
B Audio cable
Connection with the TV
Connection with other devices
OPTICAL
OUT
A
TV
OPTICAL
DIGITAL
AUDIO IN
TV
L
R
AUDIO OUT
B
BD/DVD
AUDIO IN
WHITE:
RED:
L
R
e.g., Blu-ray Disc player
SC-HTB18_EB_VQT5J46.book 9 ページ ２０１４年３月１９日 水曜日 午前９時４７分

Panasonic SC-HTB18 Specifications

General

Audio decoders	-
RMS rated power	120 W
Audio output channels	2.1 channels
Subwoofer type	Active subwoofer
Subwoofer included	Yes
Subwoofer location	Separate
Subwoofer connectivity	Wireless
Receiver included	No
Product color	Black
Apple docking compatibility	Not supported
Subwoofer driver diameter (imperial)	6.3 \
HDMI ports quantity	0
AC input voltage	220-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.37 W
Power consumption (typical)	35 W

Weight and Dimensions

Depth	65.5 mm
Width	750 mm
Height	118 mm
Soundbar weight	2300 g
Subwoofer depth	290 mm
Subwoofer width	156 mm
Subwoofer height	263 mm
Subwoofer weight	3000 g
