12
RQT9785

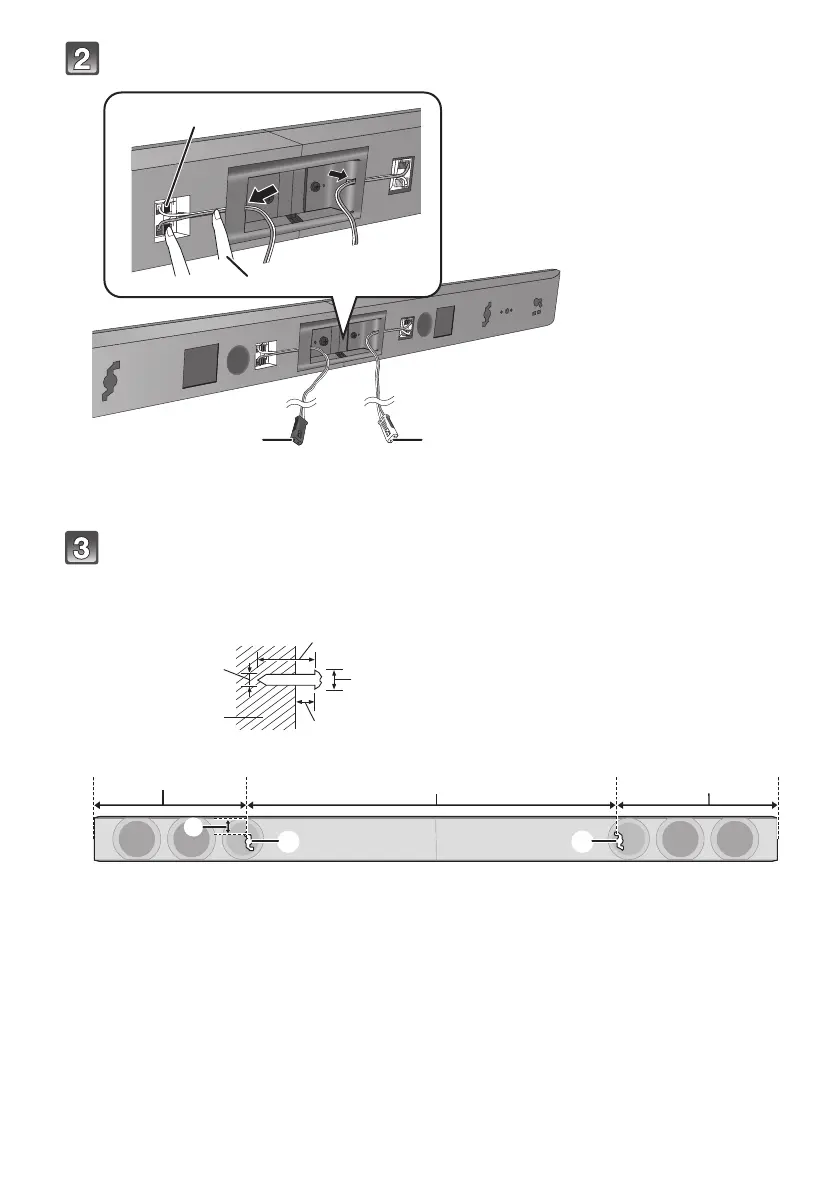

Connect the speaker cables.
≥ If the speaker cable is twisted, it might not fit through the opening. Straighten the speaker cable before inserting.
≥ Insert the wire fully, taking care not to insert beyond the wire insulation.
Drive a screw into the wall.
≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 20 mm of space above and on each side of the speaker to allow enough space for fitting the speaker.
≥ Keep the screws out of reach of children to prevent swallowing.
1 Insert the wire fully.
r: White
s: Blue line
2 Press into the
groove.
A Right speaker
connector
B Left speaker connector
A At least 30 mm
B ‰4.0 mm
C ‰7.0 mm to ‰9.4 mm
D Wall or pillar
E 5.5mm to 6.5mm
F 238 mm G 576 mm H 248 mm I 20 mm
J Wall mounting hole
Front view (semi-transparent image)
SC-HTB570_RQT9785-B_mst.book 12 ページ ２０１３年１月１０日 木曜日 午後２時５６分
