Panasonic SC-HTB570

Before use
RQT9785
7

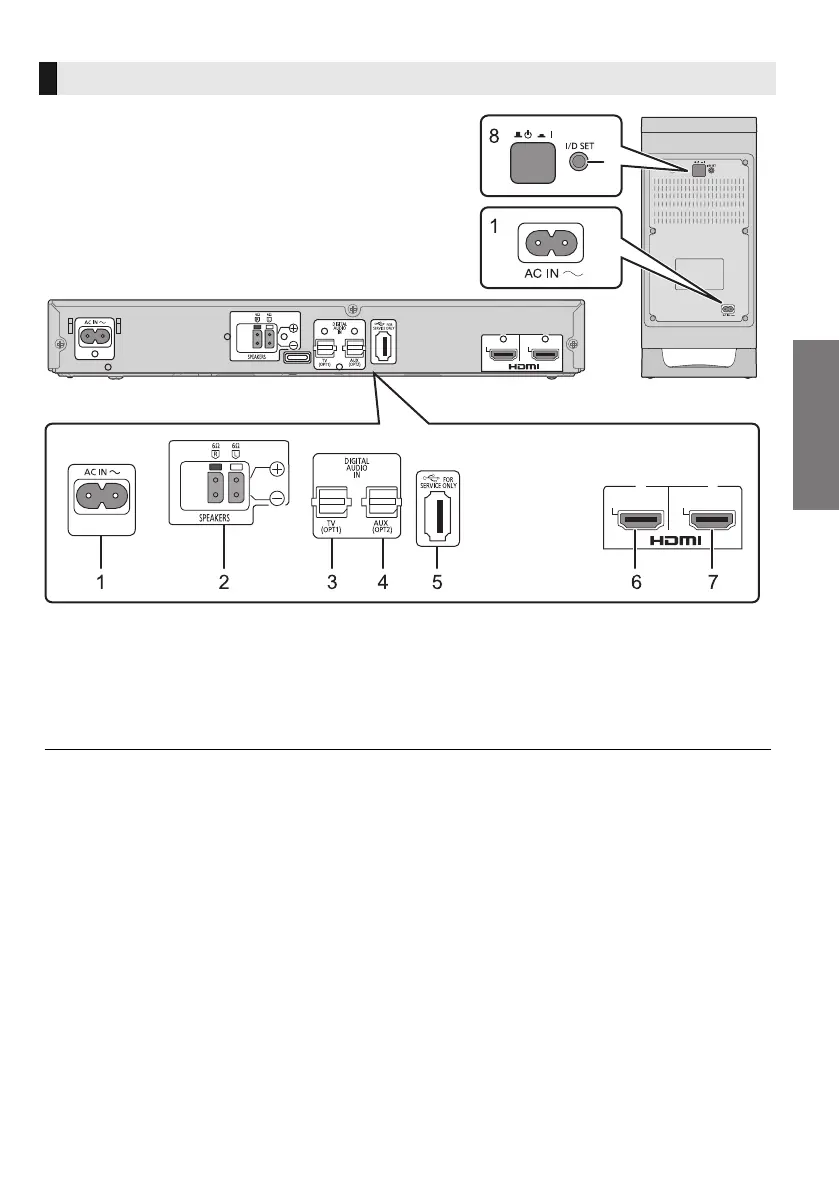

1 AC IN terminal (> 24)
2 Speaker terminals (> 24)
3 OPTICAL DIGITAL AUDIO IN (TV) terminal
(> 22)
4 OPTICAL DIGITAL AUDIO IN (AUX) terminal
(> 23)
5 USB port (for service use only)
6 HDMI IN terminal (> 23)
7 HDMI OUT terminal (ARC compatible)
(> 22)
8 Active subwoofer on/off button (> 25)
* The I/D SET button is only used when the main unit is not paired with the active subwoofer. (> 33)
This system (Rear)
*
AV OUT
TV(ARC)
AV IN
BD/DVD
AV OUT
TV(ARC)
AV IN
BD/DVD
