≥For a safety measure to prevent the speakers from falling, refer to page 20.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Assemble the speakers following steps 1 and 2 of “Place the speakers
horizontally” (> 11, 12).
Attach the leg stands.
≥ Keep the screws out of reach of children to prevent swallowing.

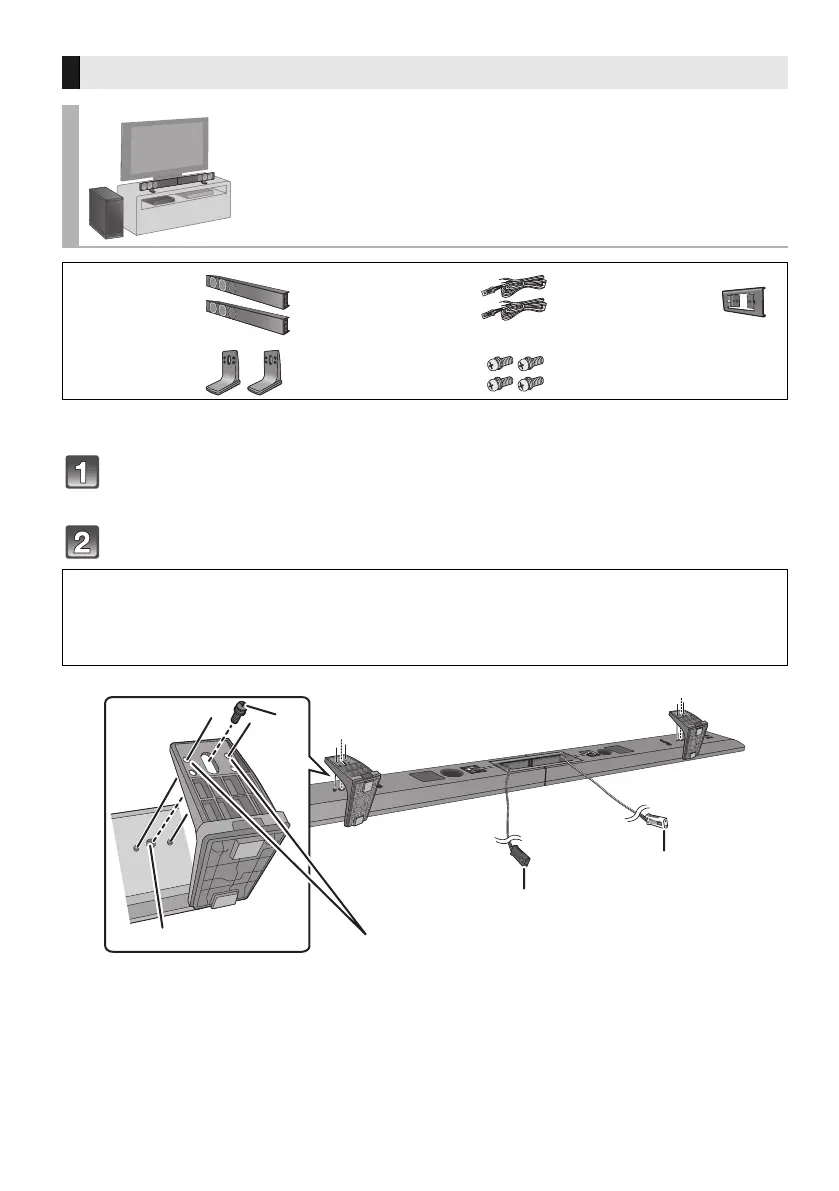

When placing the speakers on a table
Place the speakers using the leg stands
∏ 2 Speakers ∏ 2 Speaker cables
WHITE: Left
RED: Right
∏ 1 Metal bracket
∏ 2 Leg stands ∏ 4 Screws
Red connector:
With the speaker facing down, the speaker attached to the red connector cable is
to be placed on the left side.
White connector:
With the speaker facing down, the speaker attached to the white connector cable
is to be placed on the right side.
A Screw (supplied)
≥ Tighten securely.
B Screw hole
C Right speaker connector
D Left speaker connector
Align the higher or lower holes with the projecting parts on
the speaker.
≥ By changing the position that the stand is attached to the
projecting parts, the height can be adjusted by 9 mm.
White
Red
