Drive a screw into the wall.

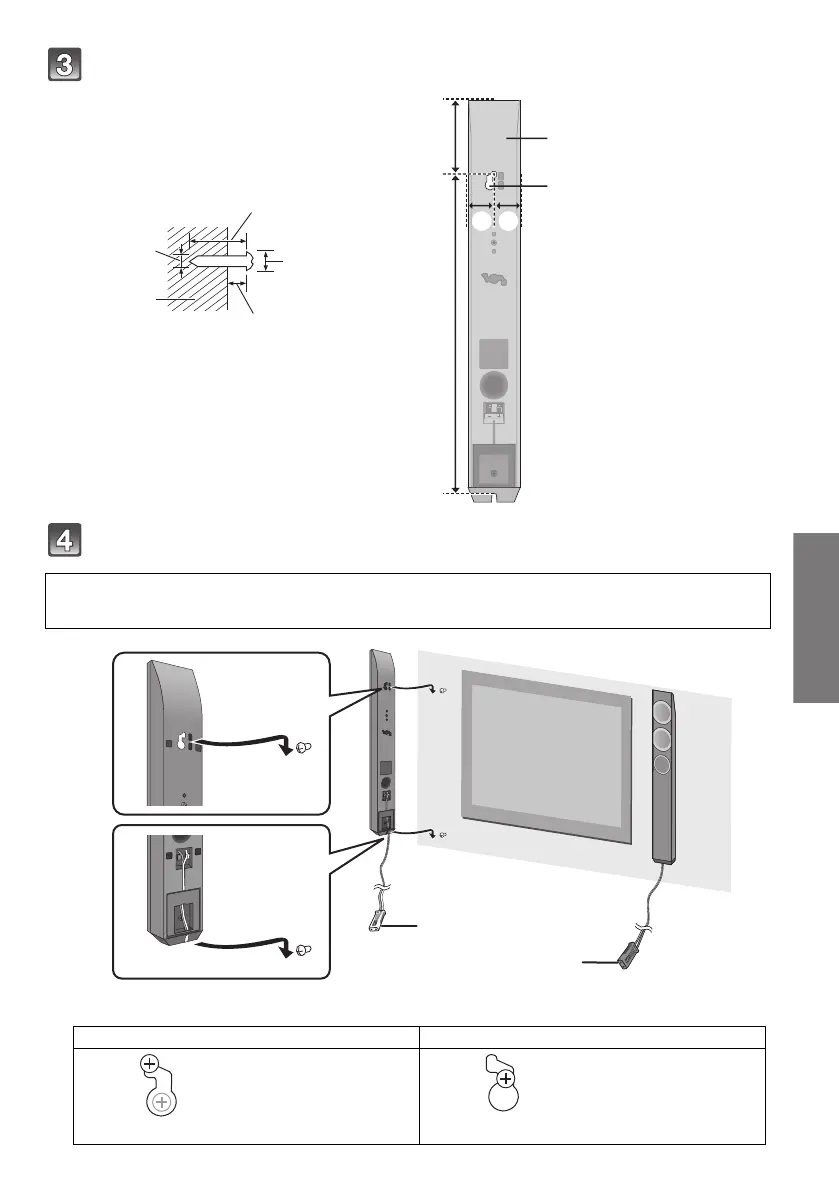

≥ Use the measurements indicated below to identify the
screwing positions on the wall.
≥ Leave at least 20 mm of space above and on each side of
the speaker to allow enough space for fitting the speaker.
≥ Keep the screws out of reach of children to prevent
swallowing.
A At least 30 mm
B ‰4.0 mm
C ‰7.0 mm to ‰9.4 mm
D Wall or pillar
E 5.5 mm to 6.5 mm
Fit the speaker(s) securely onto the screw(s).
F Front speaker
(Rear view)
G 100 mm
H 436 mm
I 34 mm
J Wall mounting hole
Red connector: The speaker attached to the red connector cable is to be placed on the right side.
White connector:The speaker attached to the white connector cable is to be placed on the left side.
K Left speaker connector L Right speaker connector
DO DO NOT
≥ Move the speaker so
that the screw is in this
position.
≥ In this position, the
speaker will likely fall if
moved to the left or
right.
