The speakers can be wall mounted by drilling screws into the wall, etc.
Make sure that the screw used and the wall are strong enough to support the weight of at least 33 kg.
The screws and other items are not supplied as the type and size will vary with each installation.
≥
For details about the required screws, refer to the diagram below the step “Drive a screw into the wall.”.
≥For a safety measure to prevent the speakers from falling, refer to page 20.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.

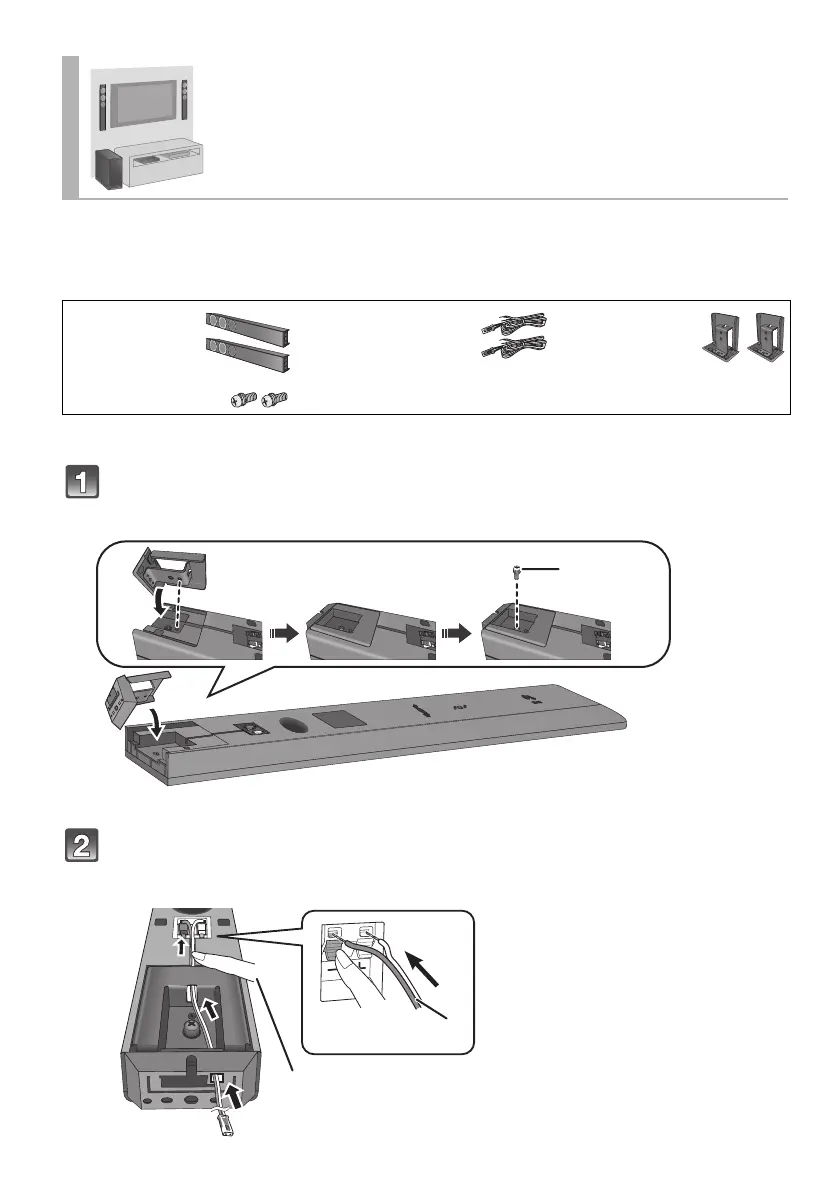

Attach the stand neck.
≥ The two speakers are interchangeable.
≥ Keep the screws out of reach of children to prevent swallowing.
A Screw (supplied)
≥ Tighten securely.
Connect the speaker cables.
≥ If the speaker cable is twisted, it might not fit through the opening. Straighten the speaker cable before inserting.
≥ Insert the wire fully, taking care not to insert beyond the wire insulation.
Place the speakers vertically
∏ 2 Speakers ∏ 2 Speaker cables
WHITE: Left
RED: Right
∏ 2 Stand
necks
∏ 2 Screws
1 Insert the wire fully.
r: White
s: Blue line
2 Press into the groove.
