Attach the wall mount brackets to the wall.
Complete all the necessary connections to the main unit. (> 15 to 16)
≥ Connect the AC mains lead cord to the main unit, but do not connect it to the household mains socket until the installation is
completed.
Attach the cord to the main unit.

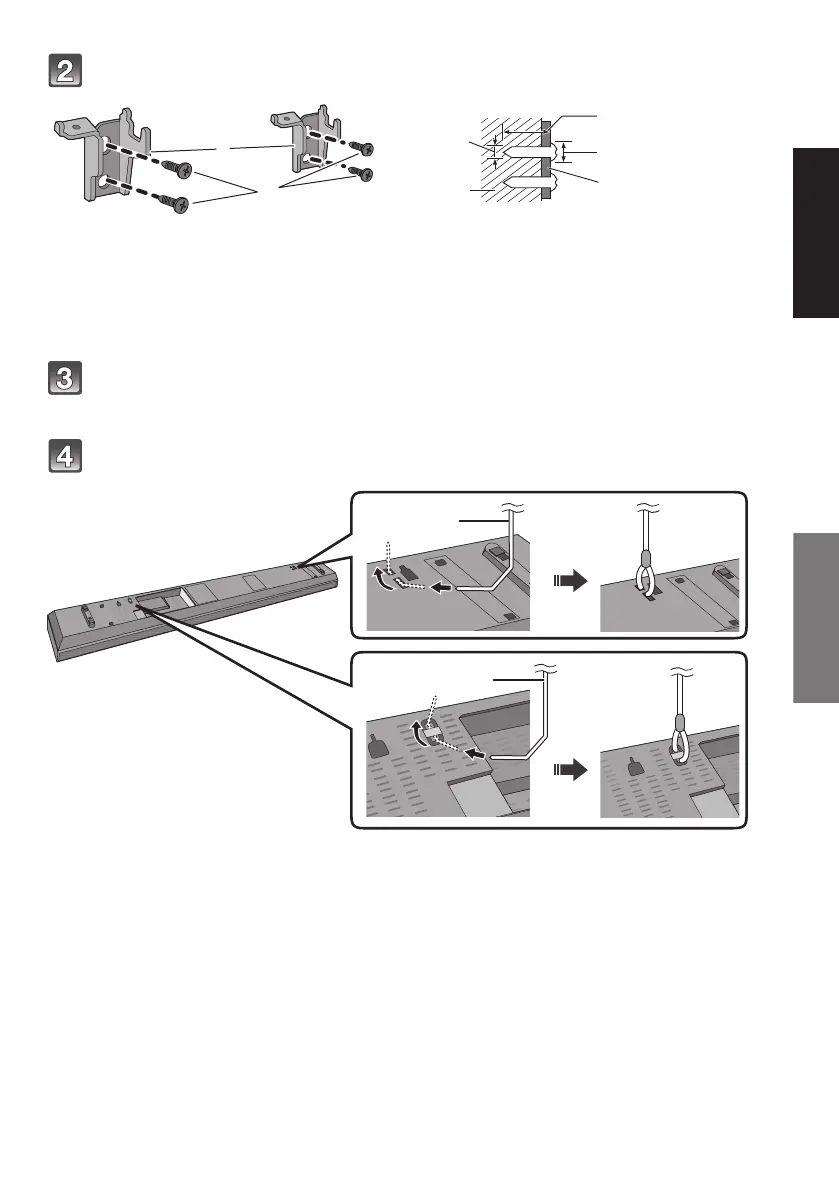

A Wall mount bracket (supplied)
B Screws
C At least 30 mm
D ‰4.0 mm
E ‰7.5 mm to ‰9.4 mm
F Wall
G Wall mount bracket (supplied)
H Cord*
* If the cord cannot be threaded through the holes, try bending the cord in 2 locations,
about 5 mm apart from the tip, at an angle of 45
o
(as
illustrated above).
