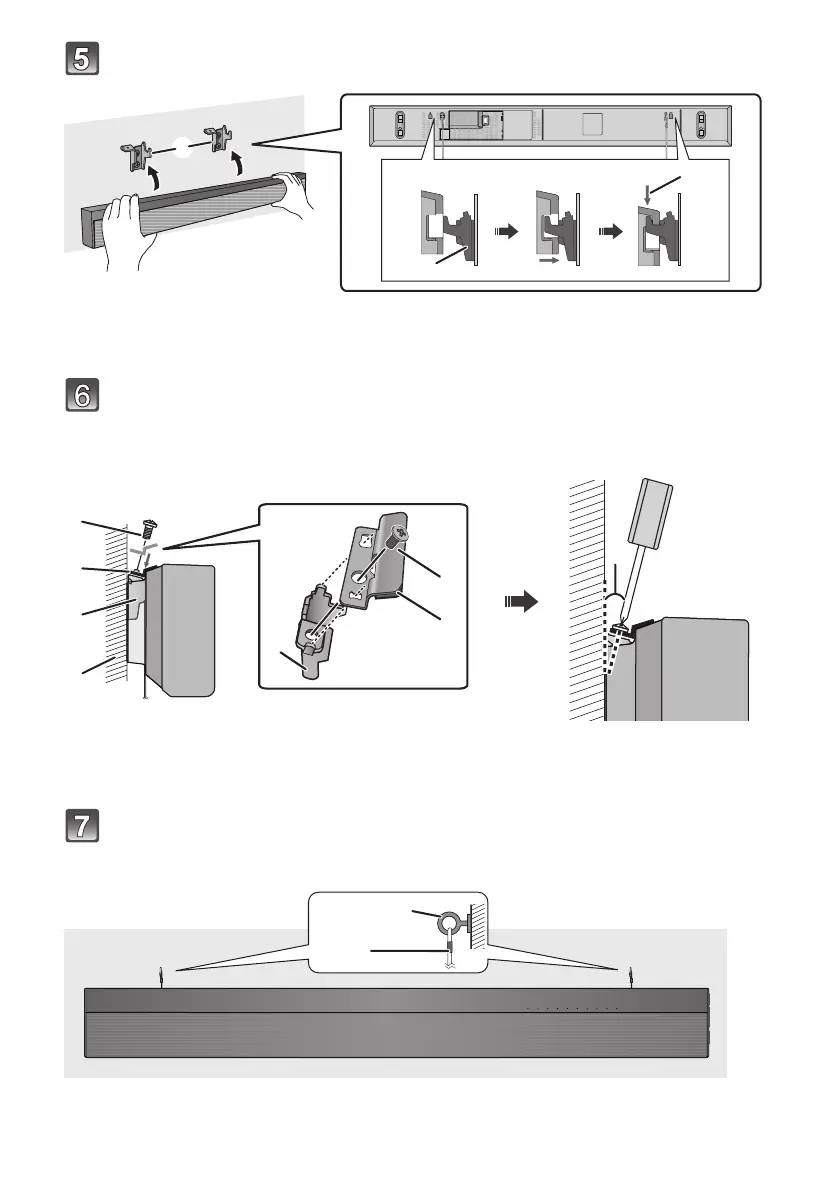

Attach the main unit to the wall mount brackets.
Screw the safety holder onto the wall mount brackets.
≥ Screw tightening torque: 80 N0cm to 120 N0cm.
≥ The safety holders are designed to prevent the main unit from falling off the wall mount bracket.
Secure the cord to the wall.
≥ Make sure that the slack of the cord is minimal.
A Wall mount bracket (supplied)
B Gently move the main unit down onto the wall mount bracket.
C Screw without washer (supplied)
D Safety holder (supplied)
E Wall mount bracket (supplied)
F Wall
G About 15
o
≥ Tilt about 15
o
from the wall and tighten the screw.
H Screw eye
I Cord
