A Optical digital audio cable
≥ When you use the optical digital audio cable, insert
the tip correctly into the terminal.
B HDMI cable
This system cannot pass-through the 4K content of a 4K compatible equipment to a 4K Ultra HD TV.
However, you can connect the system to a 4K Ultra HD TV to enjoy the 4K content.
A HDMI cable

≥ Refer to the operating instructions of the 4K Ultra HD TV (VIERA) and the 4K/60p compatible equipment for setup and for
playing the 4K content.
≥ To enjoy multi-channel output from this system, set the audio output of other equipment to Bitstream.
≥ The audio signal input to this system is up to 5.1 channels.
[B] Not labelled “HDMI (ARC)”
HDMI IN
OPTICAL OUT
B
A
TV

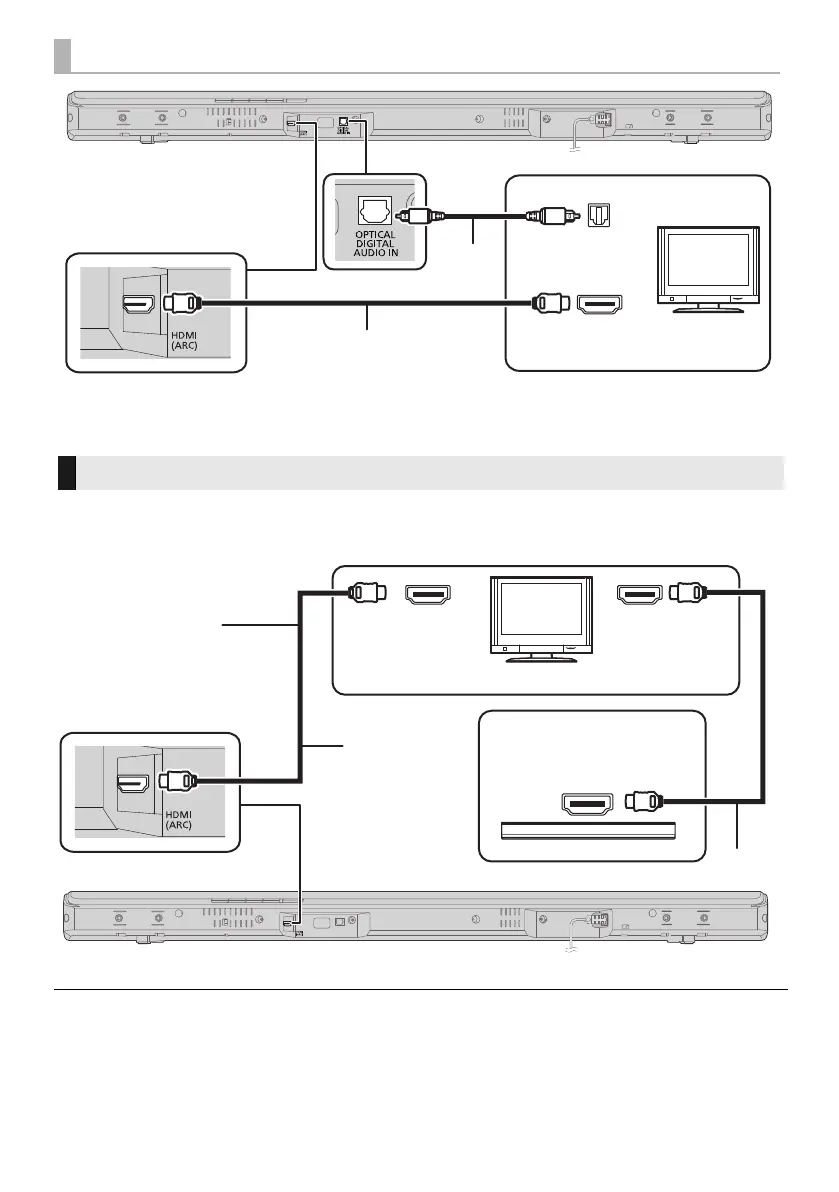

Connection to a 4K Ultra HD TV
HDMI IN (ARC)
HDMI IN (4K)
HDMI OUT
A
A
e.g., Blu-ray Disc player
(4K compatible)
TV
Connect both ends
to ARC compatible
HDMI terminals.
(4K compatible)
SC-HTB488_688_EGEBGN_TQBJ2019.book 10 ページ ２０１７年３月８日 水曜日 午後５時１７分

Panasonic SC-HTB688 Specifications

General

RMS rated power	300 W
Recommended usage	Home theatre
Audio output channels	3.1 channels
Audio decoders	DTS Digital Surround, Dolby Digital
Audio Return Channel (ARC)	Yes
Optical disc player type	Not included
Subwoofer connectivity	Wireless
Impedance	6 Ω
Full-range driver diameter	120 mm
Soundbar speaker RMS power	60 W
Total Harmonic Distortion (THD)	10 %
HDMI ports quantity	3
Connectivity technology	Wired & Wireless
Digital audio coaxial in	0
Digital audio optical out	1
FM radio	No
Product color	Black
AC input voltage	100-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	20 W
Apple docking compatibility	Not supported

Weight and Dimensions

Depth	90 mm
Width	853 mm
Height	60.5 mm
Soundbar weight	2300 g
Subwoofer depth	337 mm
Subwoofer width	185 mm
Subwoofer height	303 mm
Subwoofer weight	4300 g
