Panasonic SC-HTB688 User Manual

6
TQBJ2019

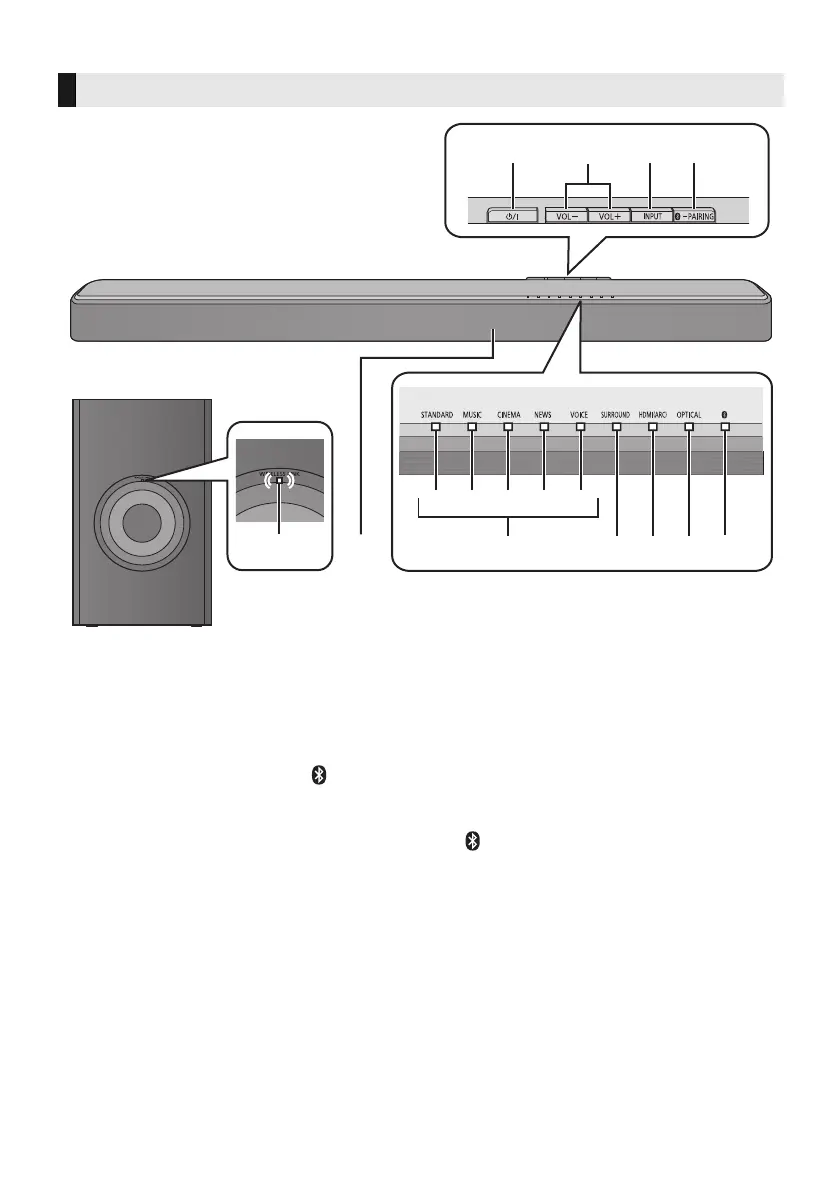

Control reference guide
1 Standby/on switch (Í/I)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Adjust the volume of this system ( 19)
3 Select the input source ( 19)
“ HDMI (ARC) ” # “ OPTICAL ” # “ ” (Bluetooth
®
)
^---------------------------------------------------------------}
4 Select the Bluetooth
®
device as the source
( 19)
Bluetooth
®
pairing ( 18)
Disconnecting a Bluetooth
®
device ( 18)
5 Remote control signal sensor
6 Sound mode indicators
Lights when the corresponding sound mode is
selected
A STANDARD indicator
B MUSIC indicator
C CINEMA indicator
D NEWS indicator
E VOICE indicator
7 SURROUND indicator
Lights when the surround effect is activated
8 HDMI (ARC) indicator
Lights when the device connected to the
HDMI (ARC) terminal is the audio source
9 OPTICAL indicator
Lights when the device connected to the
OPTICAL DIGITAL AUDIO IN terminal is the
audio source
10 (Bluetooth
®
) indicator
Lights when the Bluetooth
®
device is the
audio source
11 WIRELESS LINK indicator ( 18)
This system (Front)
2341
768910
ABCDE
11
5
Main unit
Active subwoofer
SC-HTB488_688_EGEBGN_TQBJ2019.book 6 ページ ２０１７年３月８日 水曜日 午後５時１７分

Panasonic SC-HTB688 Specifications

General

RMS rated power	300 W
Recommended usage	Home theatre
Audio output channels	3.1 channels
Audio decoders	DTS Digital Surround, Dolby Digital
Audio Return Channel (ARC)	Yes
Optical disc player type	Not included
Subwoofer connectivity	Wireless
Impedance	6 Ω
Full-range driver diameter	120 mm
Soundbar speaker RMS power	60 W
Total Harmonic Distortion (THD)	10 %
HDMI ports quantity	3
Connectivity technology	Wired & Wireless
Digital audio coaxial in	0
Digital audio optical out	1
FM radio	No
Product color	Black
AC input voltage	100-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	20 W
Apple docking compatibility	Not supported

Weight and Dimensions

Depth	90 mm
Width	853 mm
Height	60.5 mm
Soundbar weight	2300 g
Subwoofer depth	337 mm
Subwoofer width	185 mm
Subwoofer height	303 mm
Subwoofer weight	4300 g
