Panasonic SC-HTB688 User Manual

8
TQBJ2019

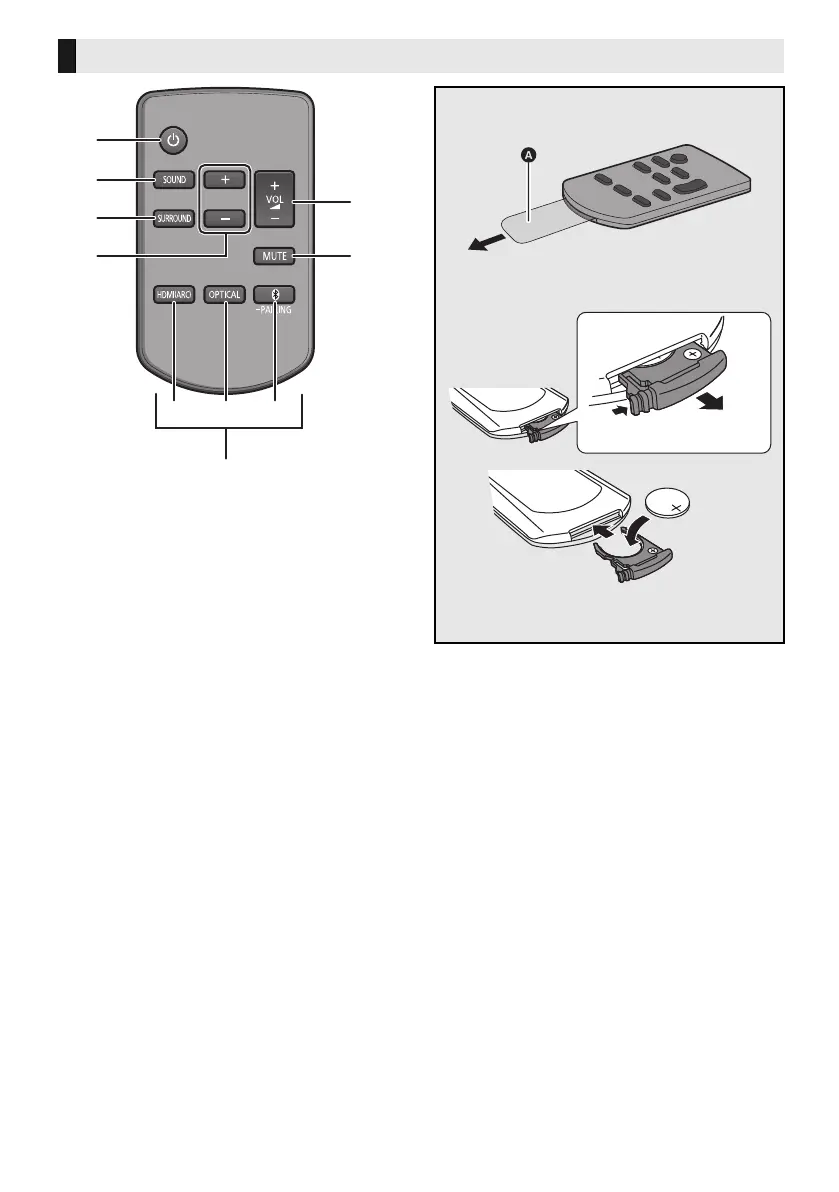

1 Turn the main unit on or off ( 19)
2 Select the sound mode ( 20)
3 Set the surround mode ( 20)
4 Adjust the subwoofer level (  19)
5 Adjust the volume of this system ( 19)
6 Mute the sound ( 20)
7 Select the input source
A Select the HDMI (ARC) device as the
source ( 19)
B Select the Optical device as the source
( 19)
C Select the Bluetooth
®
device as the
source ( 19)
Bluetooth
®
pairing ( 18)
Disconnecting a Bluetooth
®
device ( 18)
∫ About remote control signal sensor
The remote control signal sensor is
located on the main unit.
≥ Use the remote control within the correct
operation range.
Distance: Within approx. 7 m directly in front
Angle: Approx. 30
o
left and right
Remote control
SUBWOOFER
1
5
6
7
3
2
4

∫ Before using for the first time
Remove the insulation sheet A.
∫ To replace a button-type battery
Battery type: CR2025 (Lithium battery)
≥ Set the button-type battery with its (i) mark
facing upward.


SC-HTB488_688_EGEBGN_TQBJ2019.book 8 ページ ２０１７年３月８日 水曜日 午後５時１７分

Panasonic SC-HTB688 Specifications

General

RMS rated power	300 W
Recommended usage	Home theatre
Audio output channels	3.1 channels
Audio decoders	DTS Digital Surround, Dolby Digital
Audio Return Channel (ARC)	Yes
Optical disc player type	Not included
Subwoofer connectivity	Wireless
Impedance	6 Ω
Full-range driver diameter	120 mm
Soundbar speaker RMS power	60 W
Total Harmonic Distortion (THD)	10 %
HDMI ports quantity	3
Connectivity technology	Wired & Wireless
Digital audio coaxial in	0
Digital audio optical out	1
FM radio	No
Product color	Black
AC input voltage	100-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	20 W
Apple docking compatibility	Not supported

Weight and Dimensions

Depth	90 mm
Width	853 mm
Height	60.5 mm
Soundbar weight	2300 g
Subwoofer depth	337 mm
Subwoofer width	185 mm
Subwoofer height	303 mm
Subwoofer weight	4300 g
