Panasonic SC-HTB688 User Manual

16
TQBJ2019

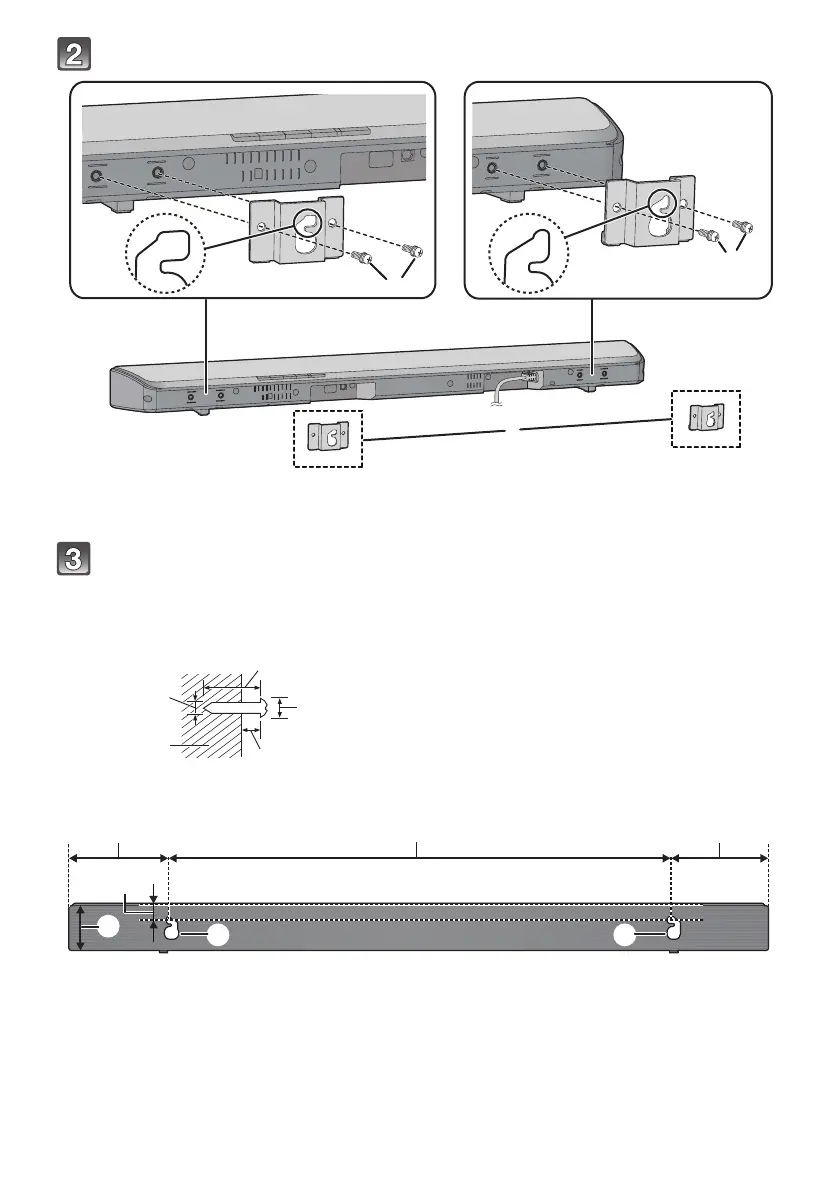

Attach the wall mount brackets to the main unit.
A Wall mount bracket (supplied)
B Screw (supplied)
Drive a screw into the wall.
≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 100 mm of space above of the main unit to allow enough space for fitting the main unit.
≥ Be sure to use a level to ensure that both mounting holes are level to each other.
Front view (semi-transparent image)
C At least 30 mm
D ‰4.0 mm
E ‰7.0 mm to ‰9.4 mm
F Wall or pillar
G 2.5 mm to 3.5 mm
H 616 mm I 118 mm J 118 mm
K 28 mm L 60.5 mm M Wall mounting hole

















SC-HTB488_688_EGEBGN_TQBJ2019.book 16 ページ ２０１７年３月８日 水曜日 午後５時１７分

Panasonic SC-HTB688 Specifications

General

RMS rated power	300 W
Recommended usage	Home theatre
Audio output channels	3.1 channels
Audio decoders	DTS Digital Surround, Dolby Digital
Audio Return Channel (ARC)	Yes
Optical disc player type	Not included
Subwoofer connectivity	Wireless
Impedance	6 Ω
Full-range driver diameter	120 mm
Soundbar speaker RMS power	60 W
Total Harmonic Distortion (THD)	10 %
HDMI ports quantity	3
Connectivity technology	Wired & Wireless
Digital audio coaxial in	0
Digital audio optical out	1
FM radio	No
Product color	Black
AC input voltage	100-240 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	20 W
Apple docking compatibility	Not supported

Weight and Dimensions

Depth	90 mm
Width	853 mm
Height	60.5 mm
Soundbar weight	2300 g
Subwoofer depth	337 mm
Subwoofer width	185 mm
Subwoofer height	303 mm
Subwoofer weight	4300 g
