Panasonic SC-HTB690EB User Manual

27

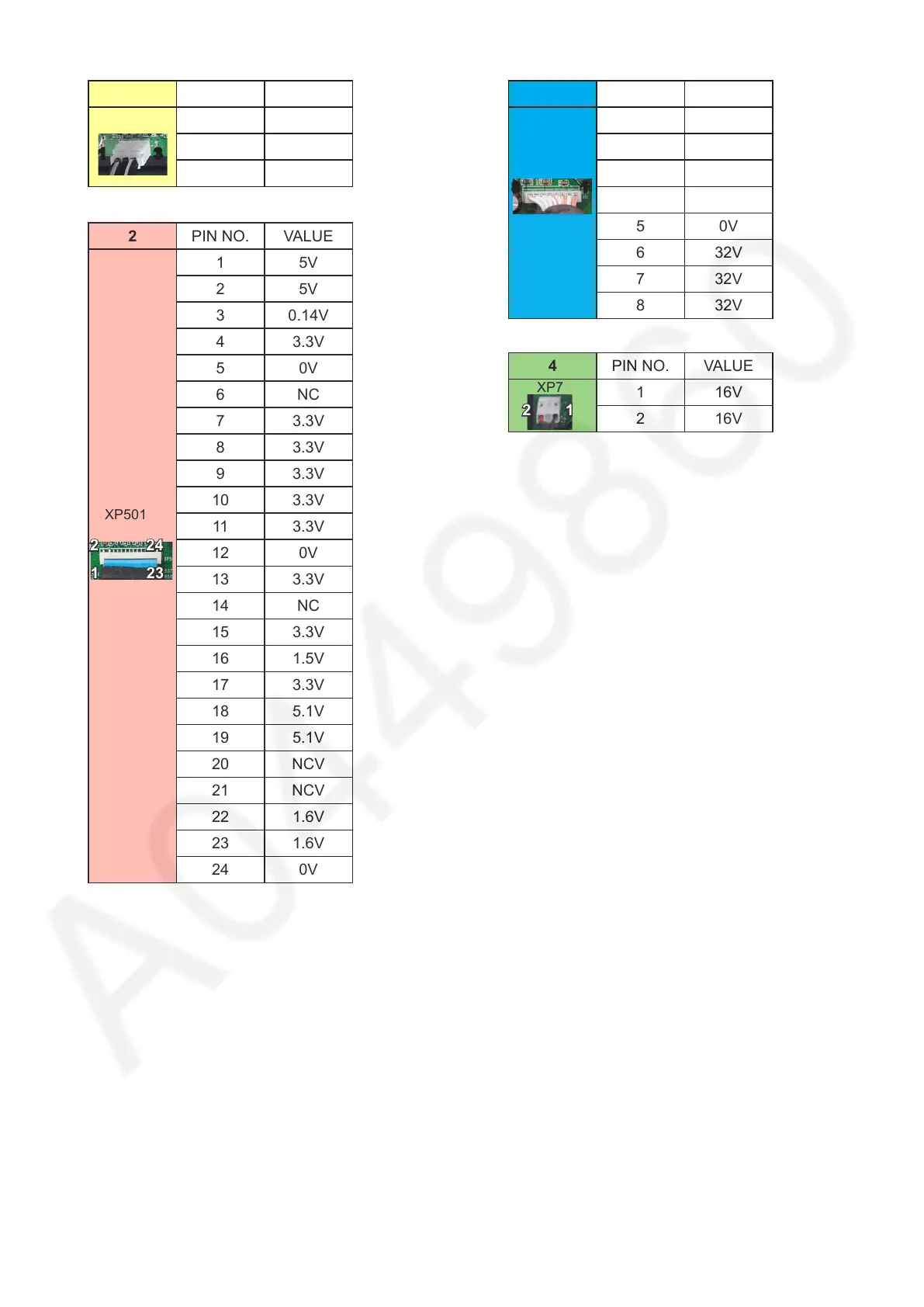

VOLTAGE DATA (measurement status:Power On and No any external signal input )
2 PIN NO. VALUE
1 5V
2 5V
3 0.14V
4 3.3V
5 0V
6 NC
7 3.3V
8 3.3V
9 3.3V
10 3.3V
11 3.3V
12 0V
13 3.3V
14 NC
15 3.3V
16 1.5V
17 3.3V
18 5.1V
19 5.1V
20 NCV
21 NCV
22 1.6V
23 1.6V
24 0V
XP501
1 PIN NO. VALUE
1 0V
2 3.3V
3 3.3V
XP506
1 3
1 23
2 24
3 PIN NO. VALUE
1 0V
2 3.3V
3 0V
4 0V
5 0V
6 32V
7 32V
8 32V
XS1
8 1
4 PIN NO. VALUE
1 16V
2 16V
XP7
2 1
