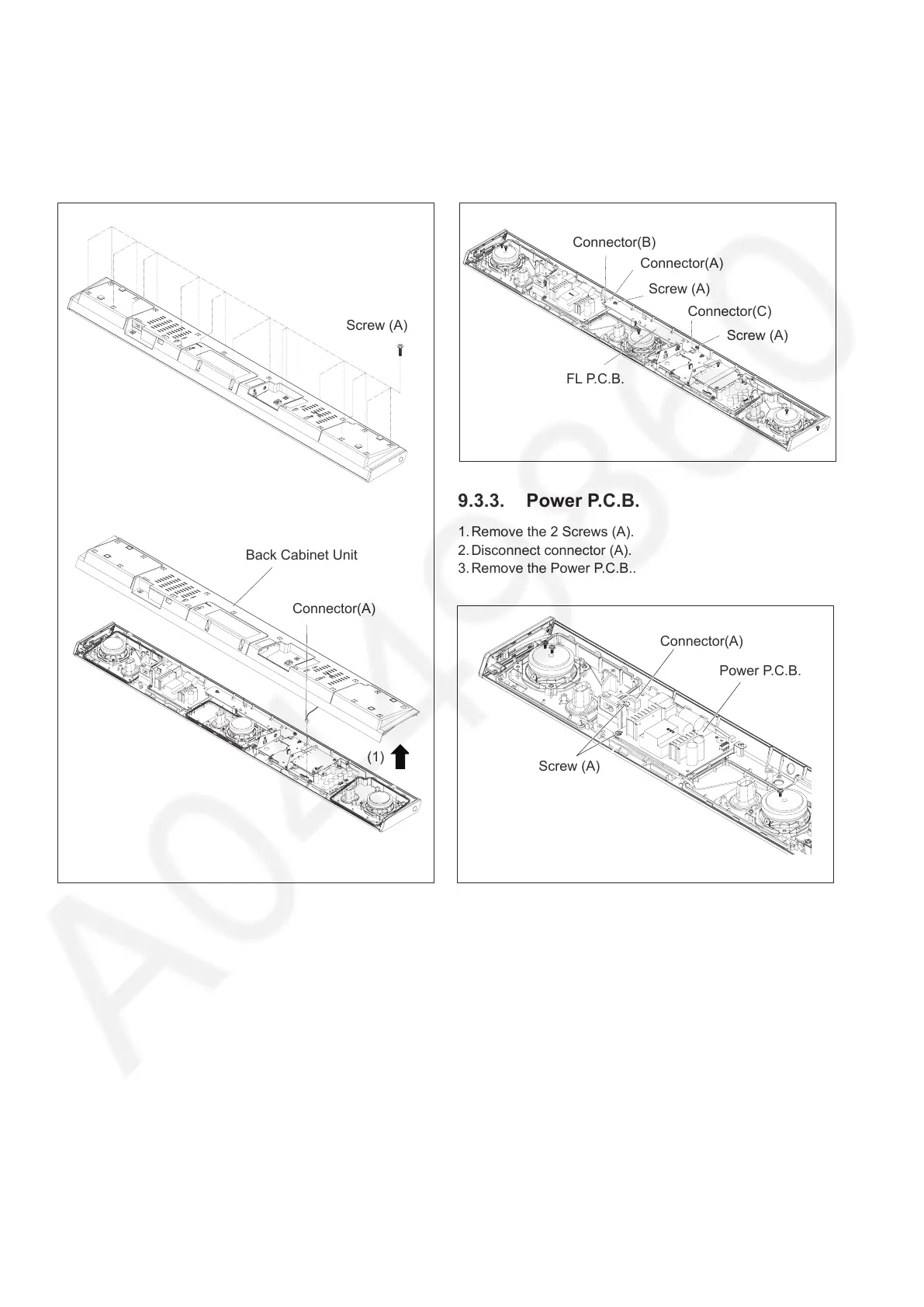

9.3.1. Back Cabinet Unit
1. Remove 20 Screws (A).
2. Disconnect connector (A).
3. Pull the Back Cabinet Unit in the direction of arrow (1).
Screw (A)
Back Cabinet Unit
Connector(A)
Screw (A)
FL P.C.B.
Screw (A)
9.3.2. FL P.C.B.
1. Remove the 2 Screws (A).
2. Disconnect connector (A) .
3. Lift up straight upward the FL P.C.B. and disconnect the
connector (B),(C) to remove the FL P.C.B..
Connector(A)
Connector(C)
(1)
Connector(B)
9.3.3. Power P.C.B.
1. Remove the 2 Screws (A).
2. Disconnect connector (A).
3. Remove the Power P.C.B..
Screw (A)
Power P.C.B.
Connector(A)
