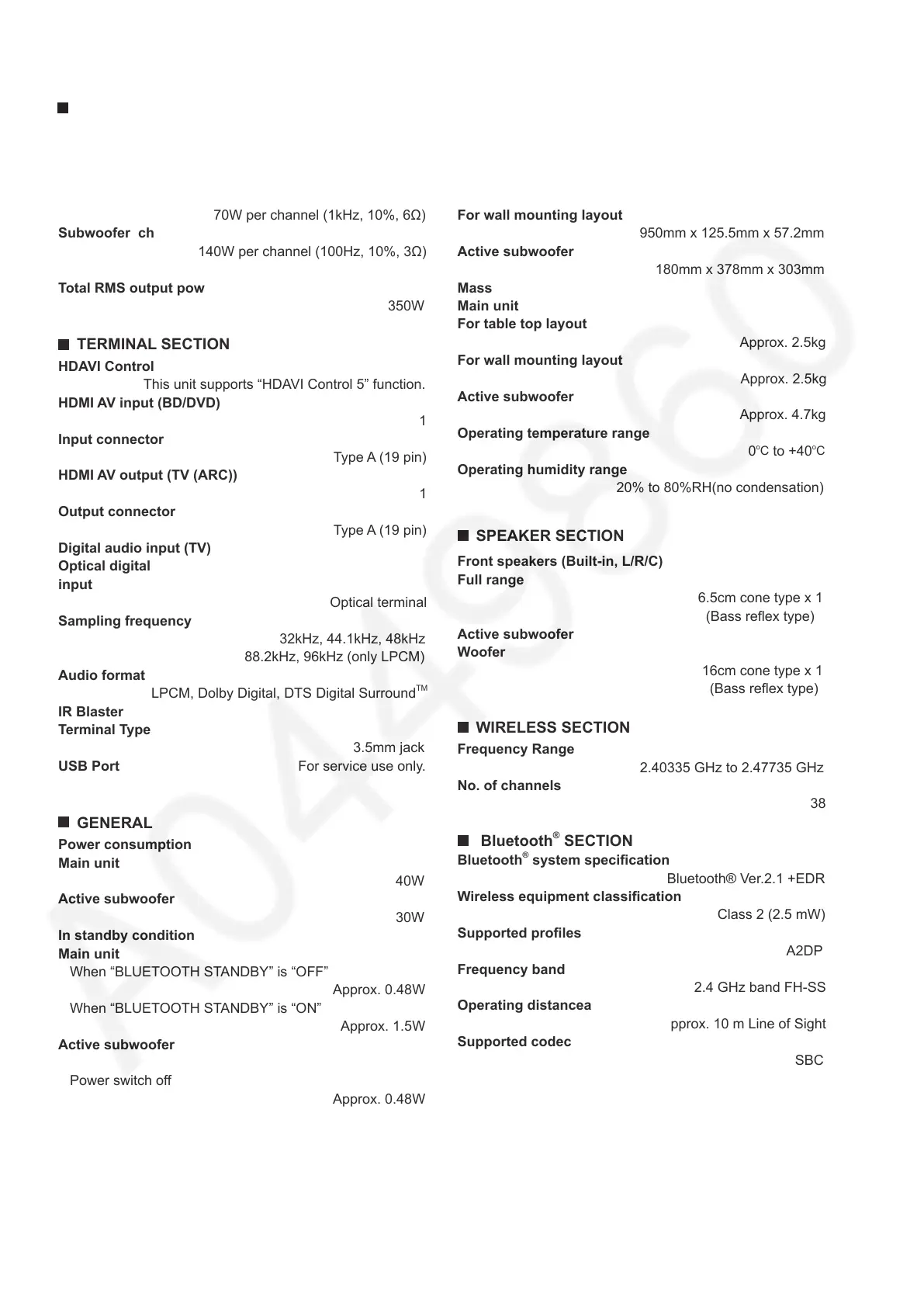

8
AMPLIFIER SECTION
RMS output power (non-simultaneous drive)
Front ch (L, R ch)
70W per channel (1kHz, 10%, 6Ω)
Centre ch (C ch)
70W per channel (1kHz, 10%, 6Ω)
Subwoofer ch
140W per channel (100Hz, 10%, 3Ω)
Total RMS output pow
350W
TERMINAL SECTION
HDAVI Control
This unit supports “HDAVI Control 5” function.
HDMI AV input (BD/DVD)
1
Input connector
Type A (19 pin)
HDMI AV output (TV (ARC))
1
Output connector
Type A (19 pin)
Digital audio input (TV)
Optical digital
input
Optical terminal
Sampling frequency
32kHz, 44.1kHz, 48kHz
88.2kHz, 96kHz (only LPCM)
Audio format
LPCM, Dolby Digital, DTS Digital Surround
TM
IR Blaster
Terminal Type
3.5mm jack
USB Port For service use only.
GENERAL
Power consumption
Main unit
40W
Active subwoofer
30W
In standby condition
Main unit
When “BLUETOOTH STANDBY” is “OFF”
Approx. 0.48W
When “BLUETOOTH STANDBY” is “ON”
Approx. 1.5W
Active subwoofer
Power switch off
Approx. 0.48W
The wireless link is not activated
Approx. 1.0W
4 Specications
Power supply
AC 220V to 240V, 50 Hz
Dimensions (W x H x D)
Main unit
For table top layout
950mm x 55mm x 120mm
For wall mounting layout
950mm x 125.5mm x 57.2mm
Active subwoofer
180mm x 378mm x 303mm
Mass
Main unit
For table top layout
Approx. 2.5kg
For wall mounting layout
Approx. 2.5kg
Active subwoofer
Approx. 4.7kg
Operating temperature range
0
o
C
to +40
o
C
Operating humidity range
20% to 80%RH(no condensation)
SPEAKER SECTION
Front speakers (Built-in, L/R/C)
Full range
6.5cm cone type x 1
(Bass reex type)
Active subwoofer
Woofer
16cm cone type x 1
(Bass reex type)
WIRELESS SECTION
Frequency Range
2.40335 GHz to 2.47735 GHz
No. of channels
38
Bluetooth
®
SECTION
Bluetooth
®
system specication
Bluetooth® Ver.2.1 +EDR
Wireless equipment classication
Class 2 (2.5 mW)
Supported proles
A2DP
Frequency band
2.4 GHz band FH-SS
Operating distancea
pprox. 10 m Line of Sight
Supported codec
SBC
