Panasonic SC-HTB690EB User Manual

29
NFC P.C.B.
Main P.C.B.
Speaker 2
Speaker
1
Touch P.C.B.
Speaker 3
HDMI P.C.B.
Power P.C.B.
Switch P.C.B.
Optical P.C.B
.
FL P.C.B.

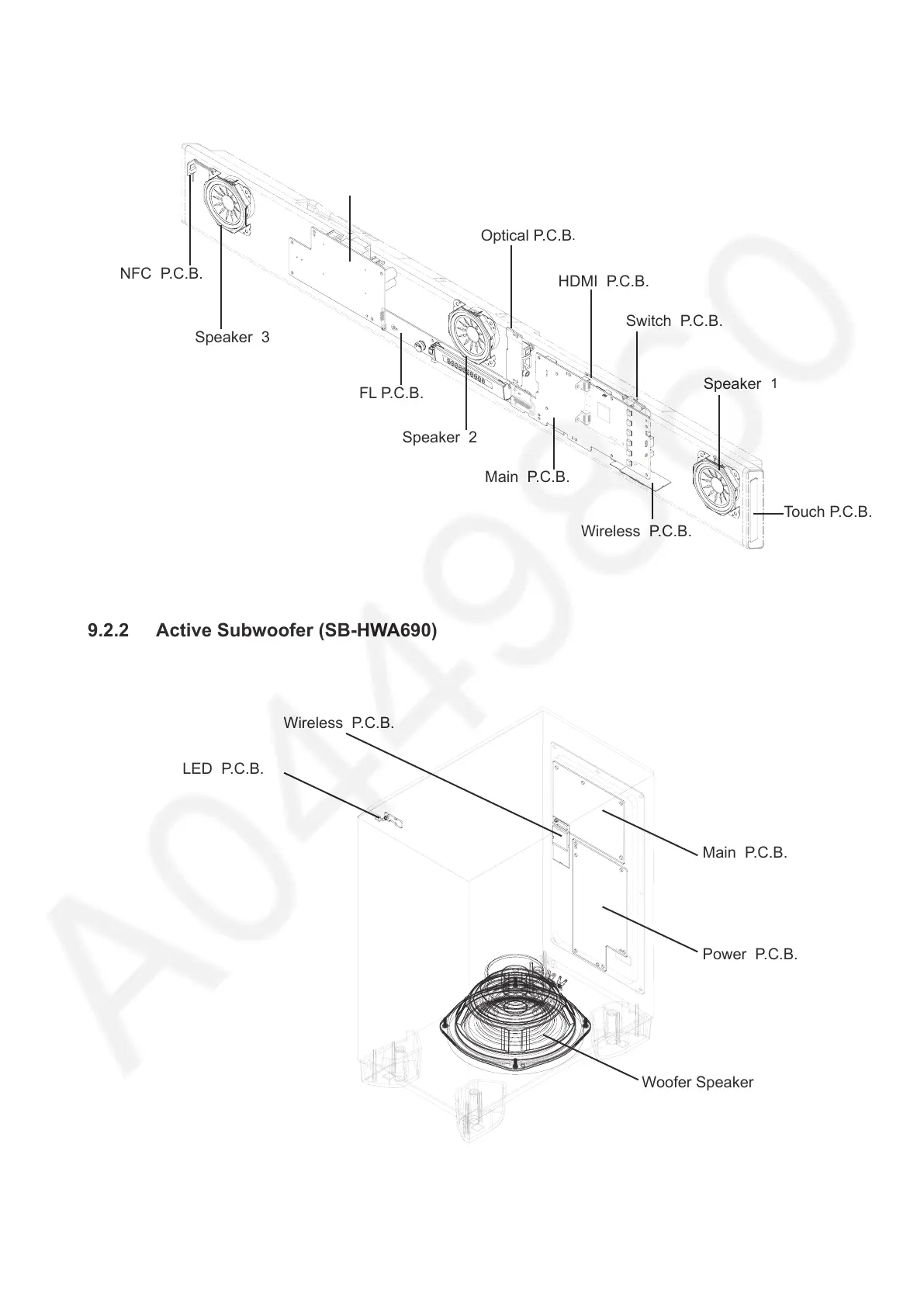

9.2. P.C.B. Positions
9.2.1 Main Unit (SU-HTB690)
Wireless P.C.B.
9.2.2 Active Subwoofer (SB-HWA690)
Power P.C.B.
Woofer Speaker
Main P.C.B.
LED P.C.B.
Wireless P.C.B.

Panasonic SC-HTB690EB Specifications

General

Brand	Panasonic
Model	SC-HTB690EB
Category	Home Cinema speakers
Language	English
