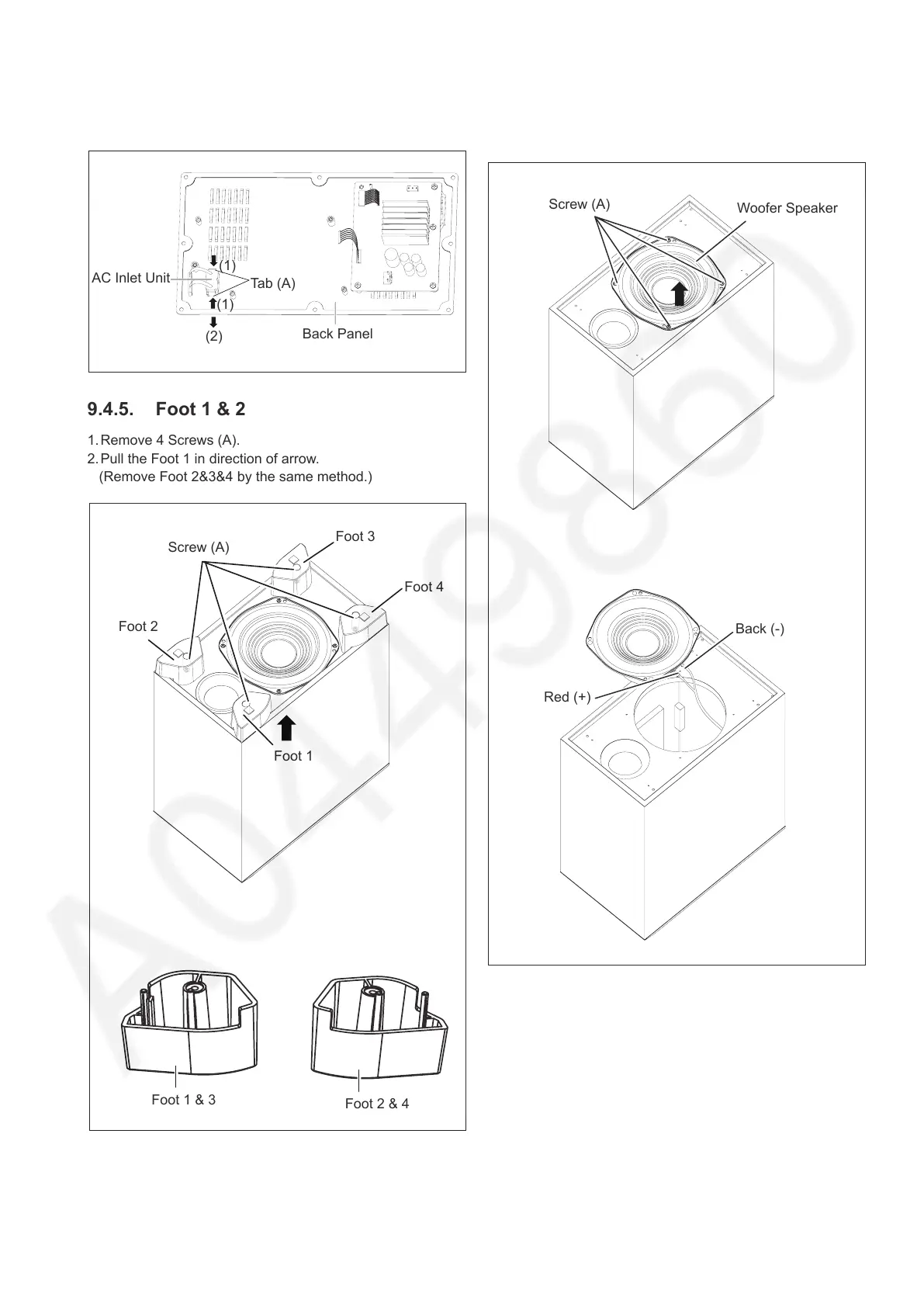

9.4.6. Woofer Speaker
1. Remove 4 Screws (A).
2. Slightly lift up Woofer Speaker in the direction of arrow.
3.Disconnect speaker wire.
4.Remove Woofer Speaker
9.4.4. AC Inlet Unit
1. Press tab (A) on the AC cord connector simultaneously in
the direction of arrows (1) to pull the AC Inlet Unit out from
the Back Panel in the direction of arrow (2).
Back Panel
AC Inlet Unit
Tab (A)
(1)
(2)
(1)
9.4.5. Foot 1 & 2
1. Remove 4 Screws (A).
2. Pull the Foot 1 in direction of arrow.
(Remove Foot 2&3&4 by the same method.)
Foot 3
Foot 1
Foot 2
Foot 4
Screw (A)
Foot 1 & 3
Foot 2 & 4
Screw (A)
Woofer Speaker
Red (+)
Back (-)
