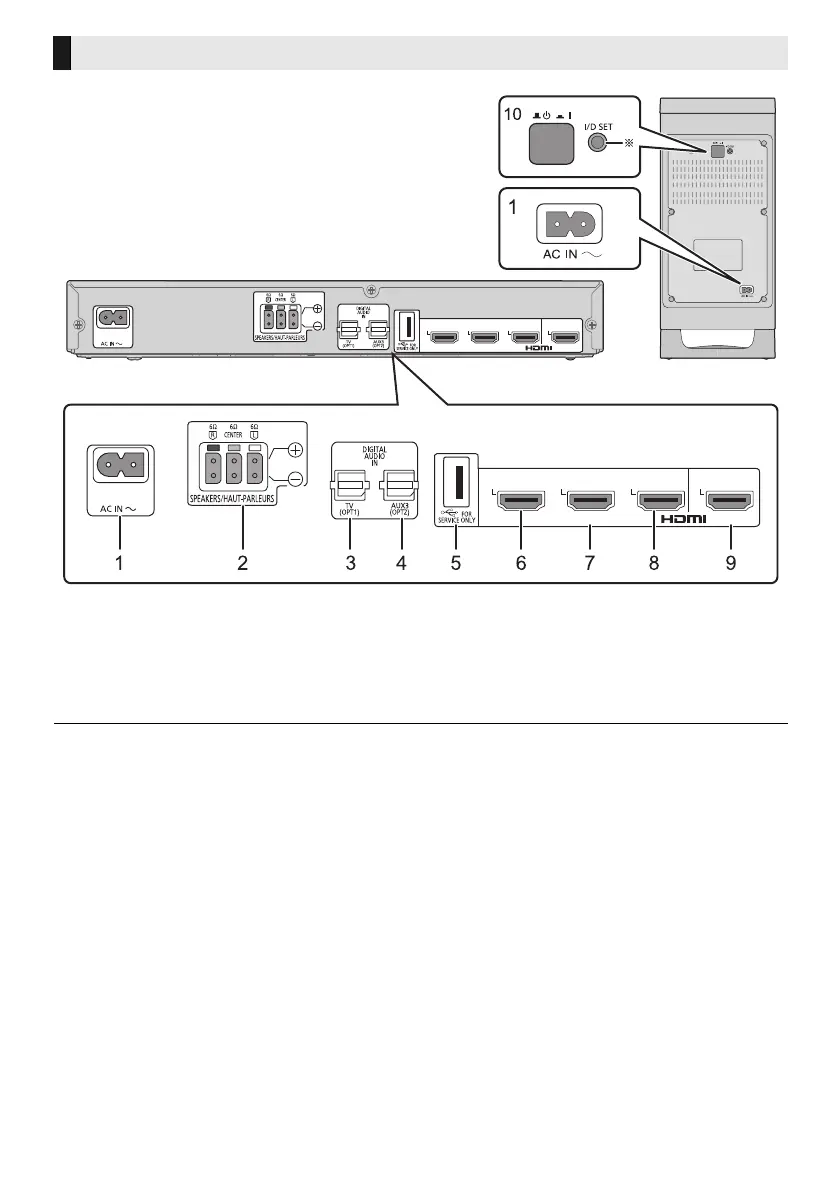

1 AC IN terminal (> 28)
2 Speaker terminals (> 28)
3 TV terminal (> 26)
4 AUX3 terminal (> 27)
5 USB port (for service use only)
6 AUX2 terminal (> 27)
7 AUX1 terminal (> 27)
8 BD/DVD terminal (> 27)
9 HDMI OUT terminal (ARC compatible) (> 26)
10 Active subwoofer on/off button (> 29)
§ The I/D SET button is only used when the main unit is not paired with the active subwoofer. (> 37)
This system (Rear)
AV IN
TV
(ARC)
BD/DVD
AUX1
(HDMI1)
(HDMI2)
AUX2
(HDMI3)
AV OUT
AV IN
TV
(ARC)
BD/DVD
AUX1
(HDMI1)
(HDMI2)
AUX2
(HDMI3)
AV OUT
