Step 2 Assembling the speakers
The speakers can be wall mounted by drilling screws into the wall, etc.
Make sure that the screw used and the wall are strong enough to support the weight of at least 33 k
g
(72.8 lbs).
The screws and other items are not supplied as the type and size will vary with each installation.
≥
For details about the required screws, refer to the diagram below the step “Drive a screw into the wall.”
(
>
13).
≥For a safety measure to prevent the speakers from falling, refer to page 24.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.

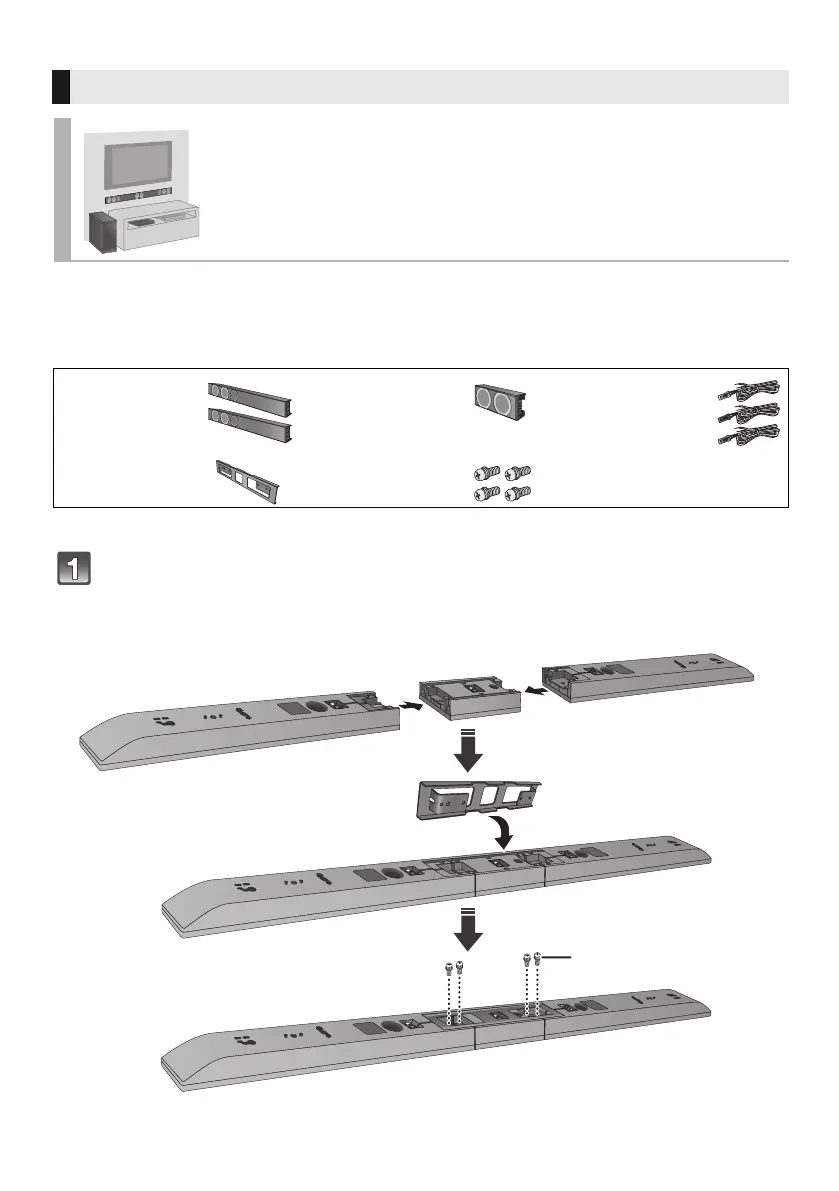

Assemble the speakers.
≥ There is no left and right for the center speaker.
≥ The two front speakers are interchangeable.
≥ Keep the screws out of reach of children to prevent swallowing.
When attaching the speakers to a wall
Place the speakers horizontally
∏ 2 Front
speakers
∏ 1 Center speaker ∏ 3 Speaker cables
WHITE: Left
RED: Right
GREEN: Center
∏ 1 Metal bracket ∏ 4 Screws
A Screw (supplied)
≥ Tighten securely.
