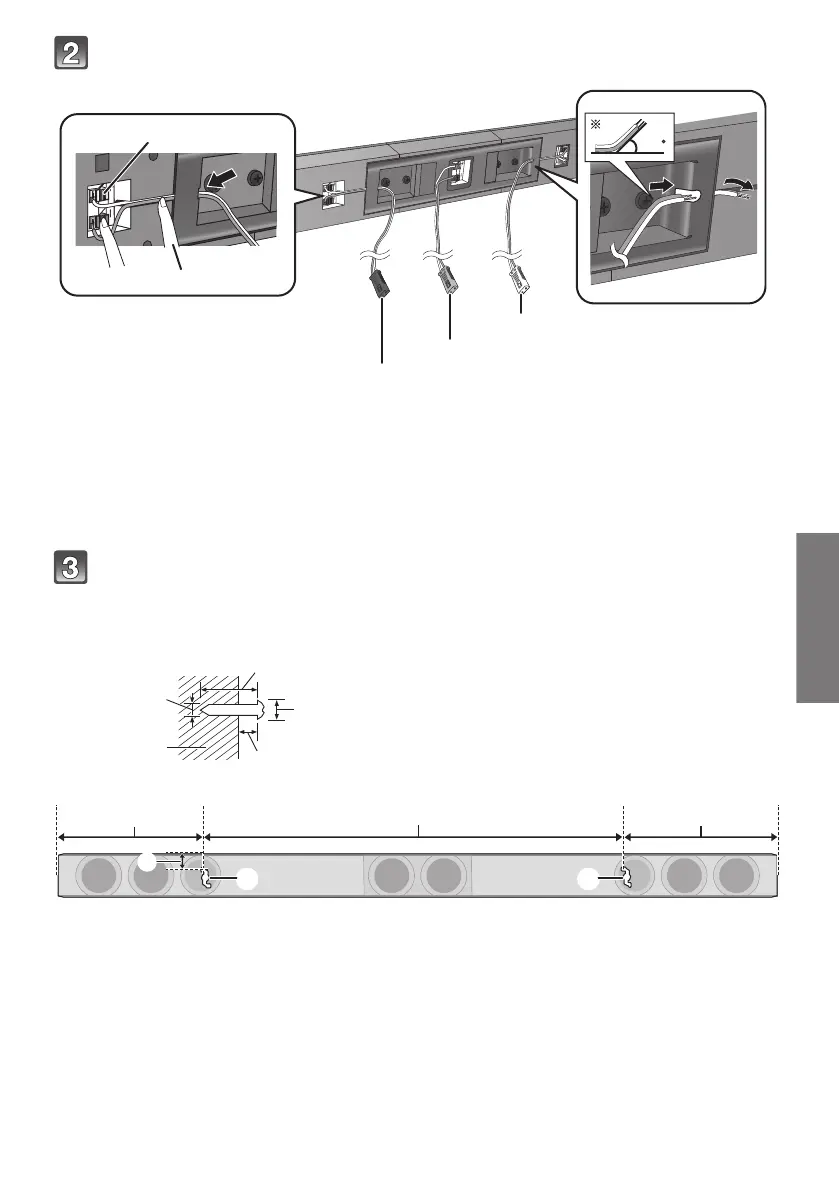

Connect the speaker cables.
§ If you have difficulty inserting the cable, try straightening the speaker cable and then bending the
cable about 20 mm (
25
/32q) from the tip, at an angle of approx. 45
o
(as illustrated above).
Drive a screw into the wall.
≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 20 mm (
25
/32q) of space above and on each side of the speaker to allow enough space for fitting the speaker.
≥ Keep the screws out of reach of children to prevent swallowing.
1 Insert the wire fully.
r: White
s: Blue line
≥ Insert the wire fully, taking care not to insert
beyond the wire insulation.
2 Press into the groove.
A Right speaker connector
B Center speaker connector
C Left speaker connector
A At least 30 mm (1
3
/16q)
B ‰4.0 mm (
5
/32q)
C ‰7.0 mm to ‰9.4 mm (
9
/32q to
3
/8q)
D Wall or pillar
E 5.5 mm to 6.5 mm (
7
/32q to
1
/4q)
F 238 mm (9
3
/8q) G 745 mm (29
11
/32q) H 248 mm (9
3
/4q) I 20 mm (
25
/32q)
J Wall mounting hole
Front view (semi-transparent image)
