Step 1 Connections
Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC mains lead until all other connections are completed.
A HDMI cable
A HDMI cable
B Optical digital audio cable
≥ When you use the optical digital audio cable, insert
the tip correctly into the terminal.
When connecting to 4K compatible equipment and 4K Ultra HD TV, use High Speed HDMI cables
which support 18 Gbps bandwidth.

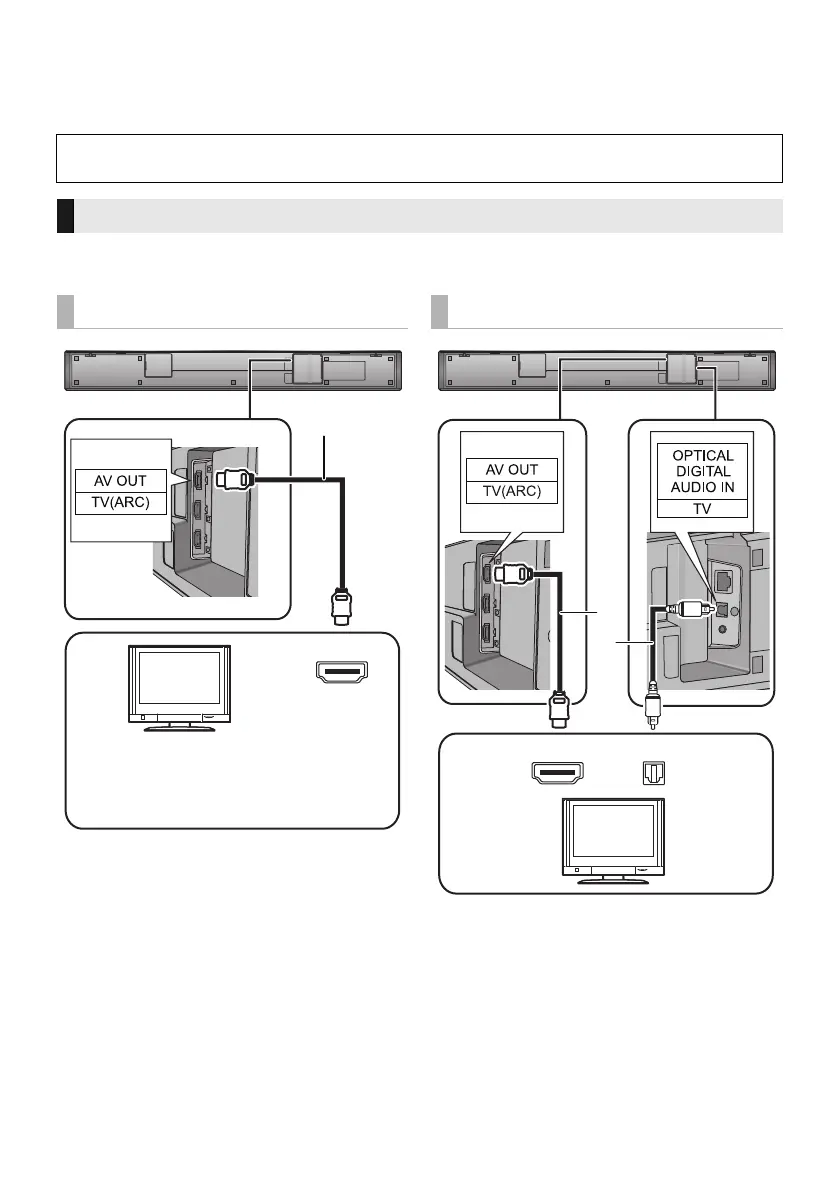

Connection with the TV
Verify if the TV’s HDMI terminal is labelled “HDMI (ARC)”.
Labelled “HDMI (ARC)”
HDMI IN (ARC)

TV
Be sure to connect to the TV’s ARC
compatible terminal. (Refer to the operating
instructions for the TV.)
Not Labelled “HDMI (ARC)”
HDMI IN
OPTICAL
OUT


TV
∫ What is ARC?
ARC is an abbreviation of Audio Return Channel, also known as HDMI ARC. It refers to one of the HDMI functions. When you
connect the main unit to the terminal labelled “HDMI (ARC)” on the TV, the optical digital audio cable that is usually required in
order to listen to sound from a TV is no longer required, and TV pictures and sound can be enjoyed with a single HDMI cable.
