Appliance inlet
Connector
Approx. 6mm
Connect the AC mains lead only after all the other connections have been made.

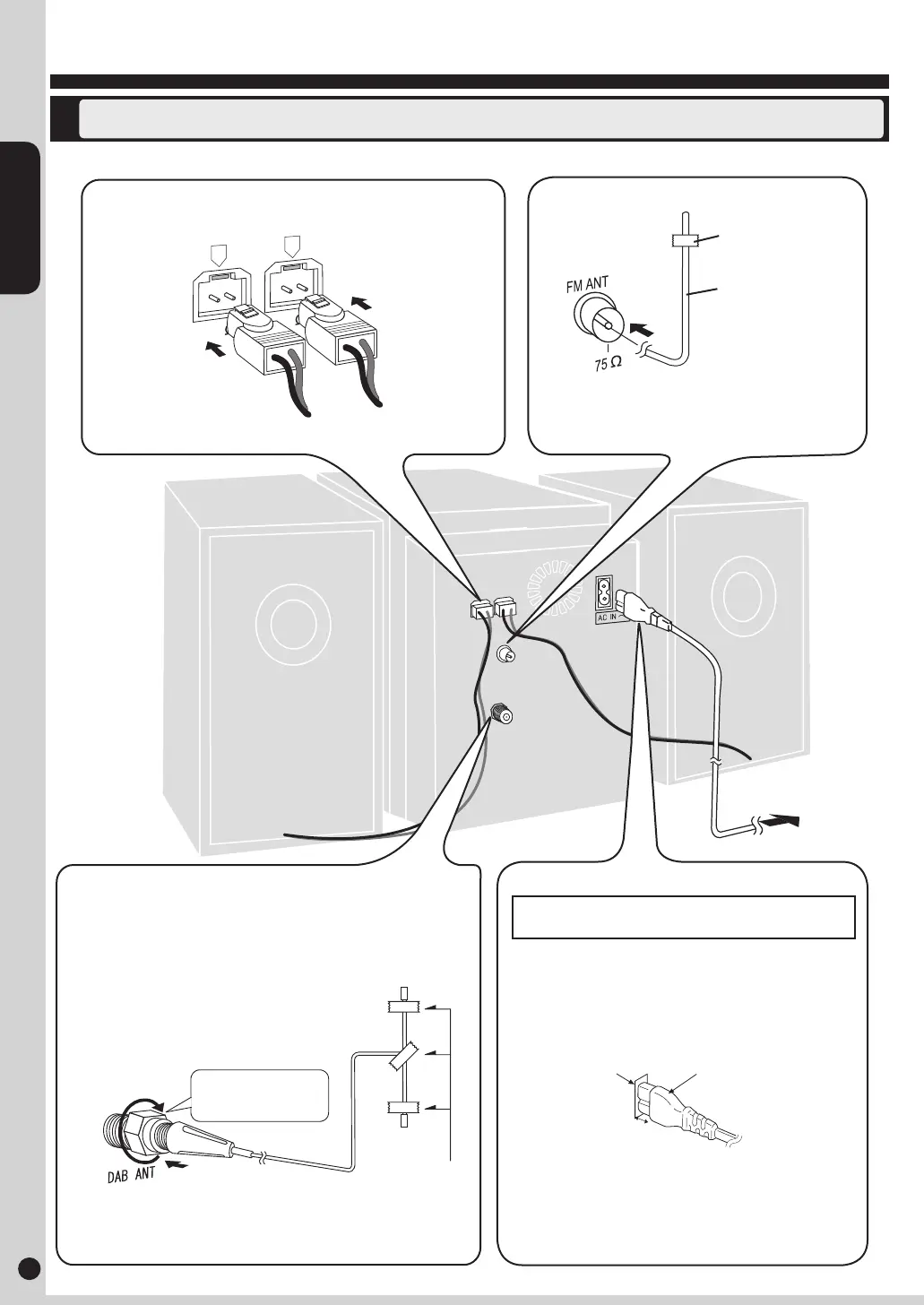

Connect the DAB “T” antenna.
The cross bar of the T should be kept firmly
stretched.
Find a position with good reception.
There is a function on the unit to check
signal quality.
Connect the FM indoor antenna.
Adhesive tape
FM indoor antenna
Tape the antenna to a wall or column,
in a position with the least amount of
interference.
To household
mains socket
Connect the speaker cables.
Insert fully
Connect the AC mains lead.
The included AC mains lead is for use with this
unit only. Do not use it with other equipment.
Do not use an AC mains lead from other
equipment.
Insertion of connector
Even when the connector is perfectly inserted,
depending on the type of inlet used, the front
part of the connector may jut out as shown in
the drawing. However there is no problem using
the unit.
For best reception
A DAB outdoor antenna is recommended (
➡
page 5).
Making the connections
Be sure to fully
tighten the screw.
Adhesive tape
Simple setup
READ THE CAUTION FOR THE AC MAINS LEAD
ON PAGE 2 BEFORE CONNECTION.
