9
LSQT1473
Preparation
Before using
1

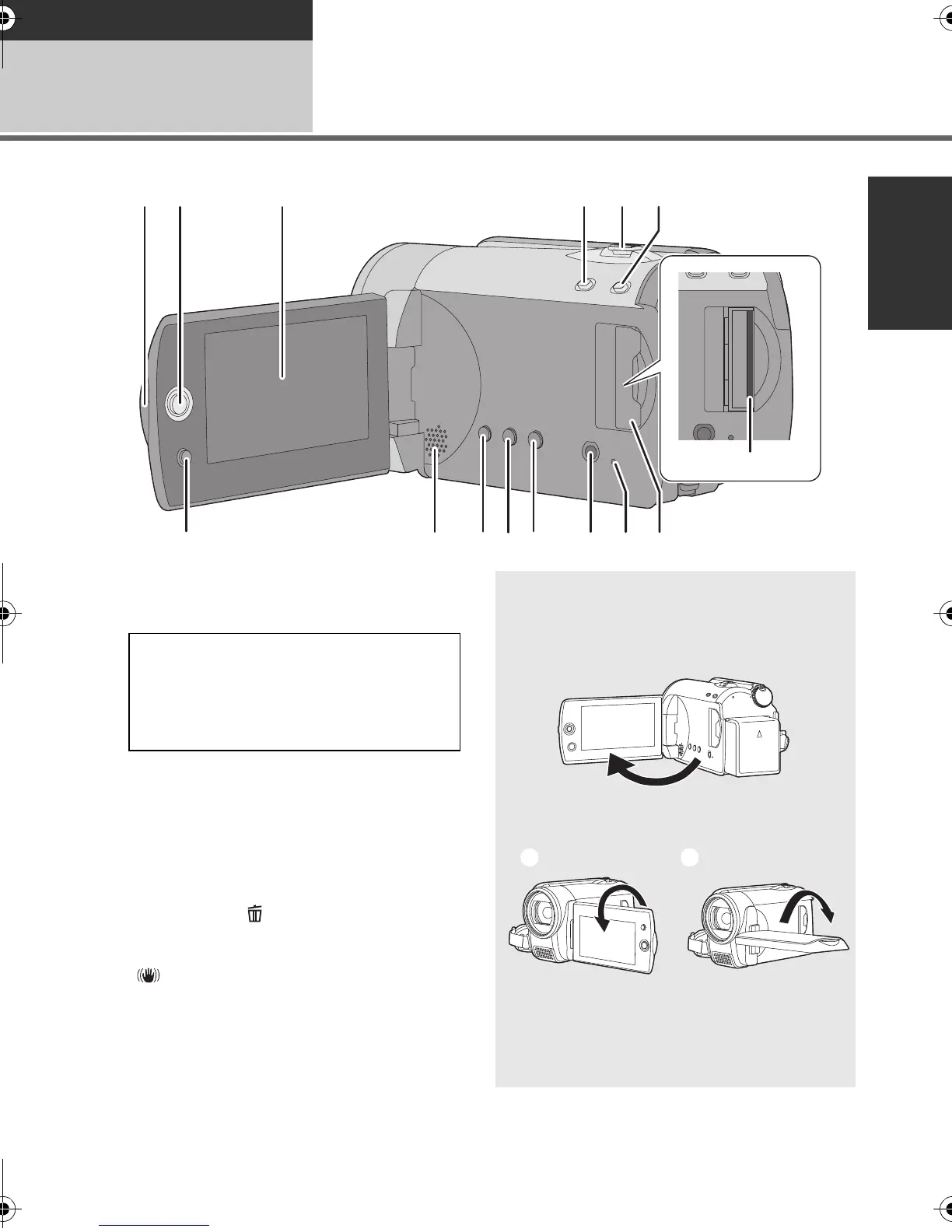

Parts identification and
handling
1 LCD monitor open part
2 Joystick
3 LCD monitor
4 Web mode button [WEB MODE] (l 31)
5 When recording: Zoom lever [W/T] (l 35)
When playing back: Volume lever
[sVOLr] (l 51)
6 Intelligent auto button [iA] (l 28)
7 Menu button [MENU] (l 22)
8 Speaker
9 Delete button [ ] (l 55)
10 Manual button [MANUAL AF/MF] (l 46)
11 Optical image stabilizer button
[ , O.I.S.] (l 37)
12 Audio-video output terminal [A/V]
(l 68, 77)
13 SD Card access lamp [ACCESS]
(l 19)
14 SD Card slot cover [SD CARD] (l 20)
15 SD card slot (l 20)
8
6
7
9
10
11
12 13 14
12 3 54
15
Due to limitations in LCD production
technology, there may be some tiny bright
or dark spots on the LCD monitor screen.
However, this is not a malfunction and
does not affect the recorded picture.
LCD monitor
Pull the LCD monitor out in the direction of
the arrow with your fingers.
≥ It can open up to 90o.
≥ It can rotate up to 180o A towards the lens
or 90o B towards the opposite direction.
≥ The brightness and colour level of the LCD
monitor can be adjusted. (l 27)
