Panasonic SF2H Series

19
English

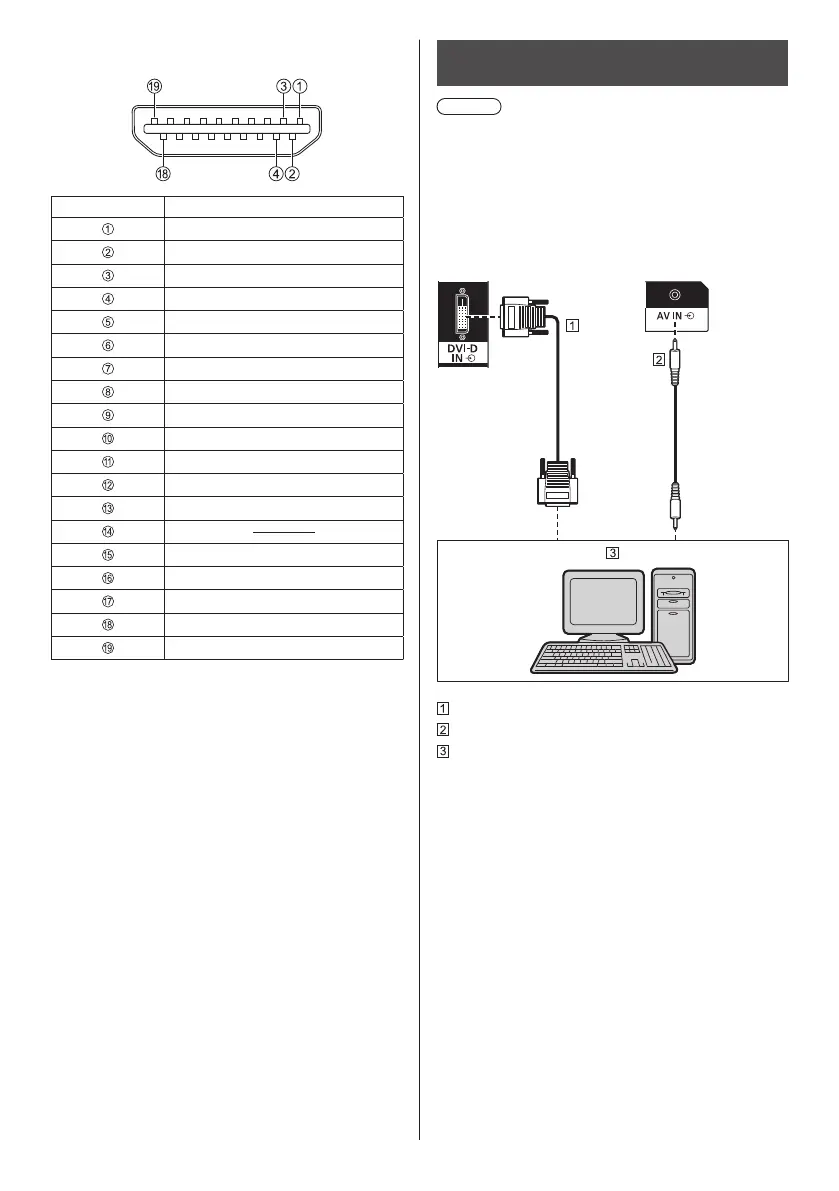

Pin assignments and signal names for HDMI
Terminal
Pin No. Signal name
T.M.D.S Data2 +
T.M.D.S Data2 Shield
T.M.D.S Data2 -
T.M.D.S Data1 +
T.M.D.S Data1 Shield
T.M.D.S Data1 -
T.M.D.S Data0 +
T.M.D.S Data0 Shield
T.M.D.S Data0 -
T.M.D.S Clock +
T.M.D.S Clock Shield
T.M.D.S Clock -
CEC
SCL
SDA
DDC/CEC Ground
+5V DC
Hot Plug Detect
DVI-D IN / DVI-D OUT terminal
connection
Note
●
Video equipment and cables shown are not supplied
with this unit.
●
DVI-D IN terminal is for Single Link only.
●
Audio input is shared with AV IN terminal.
●
Use the DVI-D cable complying with the DVI
standard. (Depending on the cable length or its
quality, noise may occur on images, or the image
quality may deteriorate.)
DIGITAL LINK
DVI-D cable (within 5 m) (commercially available)
Stereo mini plug (M3) cable (commercially available)
PC with DVI-D out
