Basic Connection (TV + DVD Recorder or VCR)
(Antenna + TV)
To connect the antenna terminal and DVD recorder or VCR
ANT OUTANT IN
ANTENNA
Cable In
Y
P
R
PB
R
L
AUDIO
R
L
AUDIO
VIDEO
HDMI 1 HDMI 2
COMPONENT IN
VIDEO IN 1
AUDIO IN
PC
DIGITAL
AUDIO OUT
A
B
C
Example 2

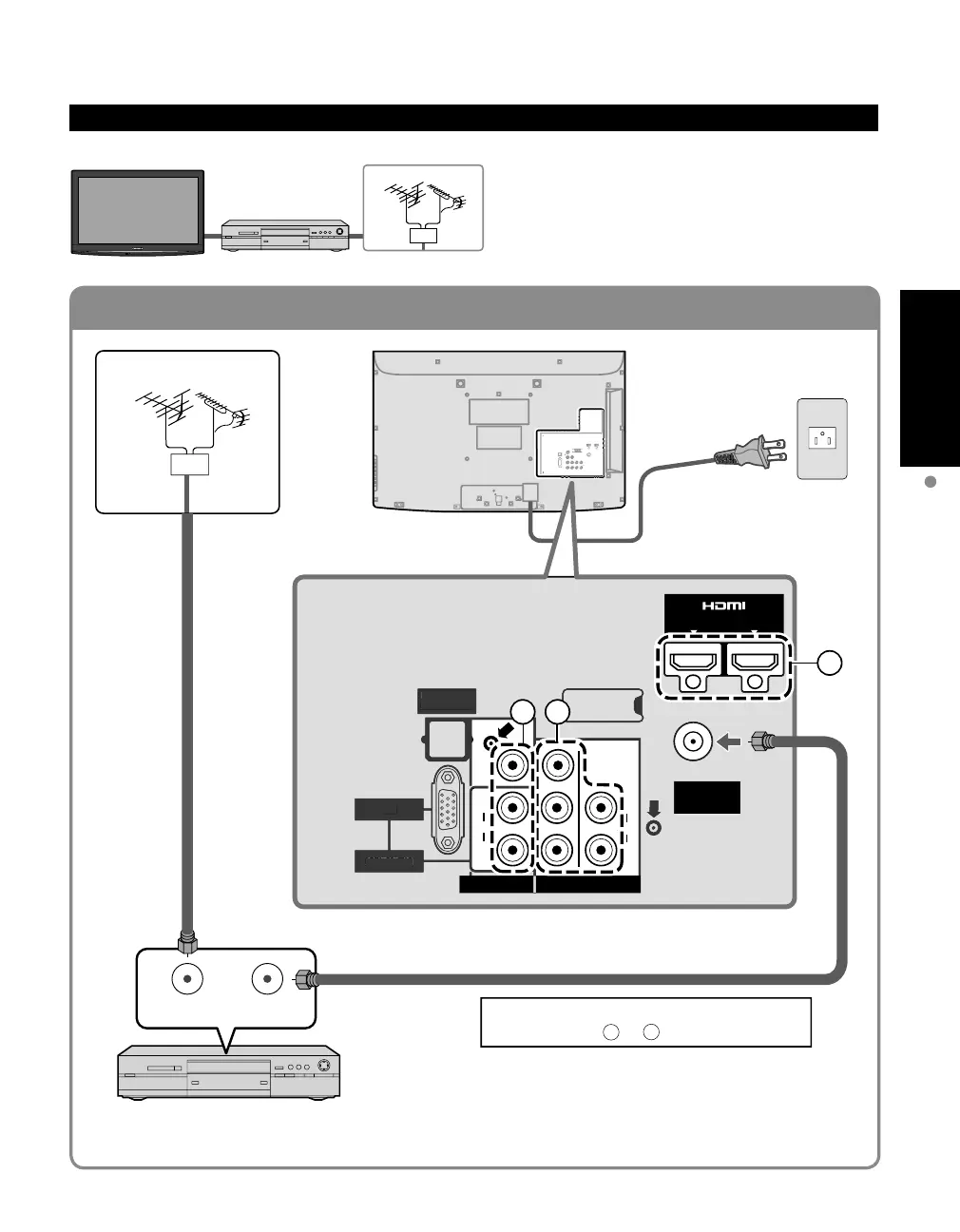

Connecting DVD recorder (VCR) (To record/playback)
DVD Recorder
If the source has a higher resolution signal
(480p/720p/1080i/1080p), connection can be made
with the use of a Component Video or HDMI cable.
VCR
Connection can be made with the use of an RF
cable and Composite Video/S Video cable. (p. 13)
VHF/UHF Antenna
TV
AV Equipment
(e.g. DVD Recorder
or VCR)
Back of the TV
Power Cord
AC 110-127 V
60 Hz
VHF/UHF Antenna
AV Equipment
(e.g. DVD Recorder or VCR)
(with TV tuner)
Connecting TV and AV equipment
Please refer to
A
-
C
on p. 13
