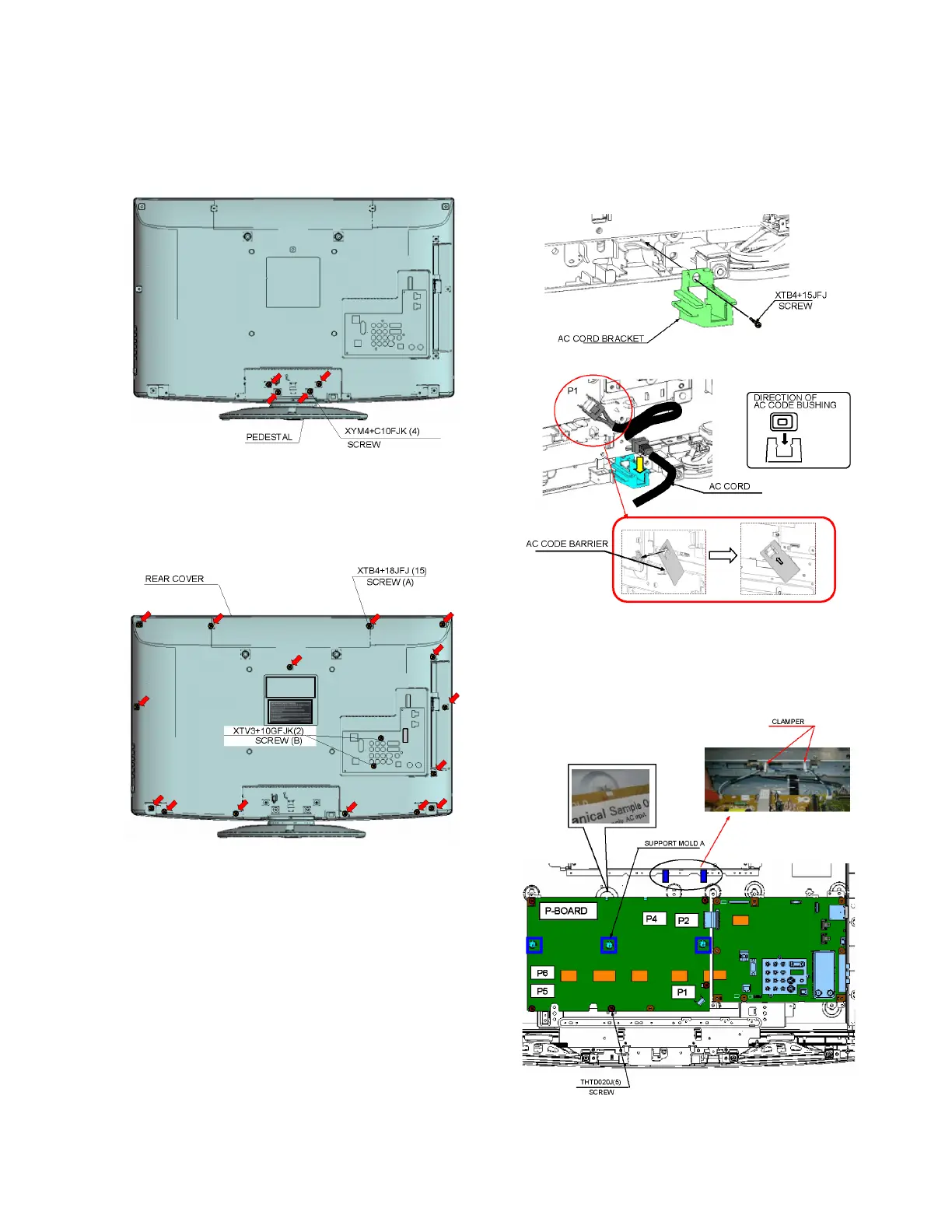

7 Disassembly and Assembly Instructions
7.1. Pedestal assy
1. Lay down the unit so that the rear cover faces upward.
2. Remove the 4 screws.
3. Remove the pedestal assy.
7.2. Rear cover
1. Remove the 15 screws (A).
2. Remove the 2 screws (B).
3. Remove the rear cover.
7.3. AC cord
1. Remove the bushing of the AC cord from the AC cord
cover.
2. Disconnect the connector (P1) of AC cord.
3. Remove the 1 screw and AC cord cover.
7.4. P-Board
1. Remove the 5 screws.
2. Disconnect the connectors (P1/P2/P4/P5/P6).
3. Remove the P-Board.
