Panasonic TC-L37S1

14

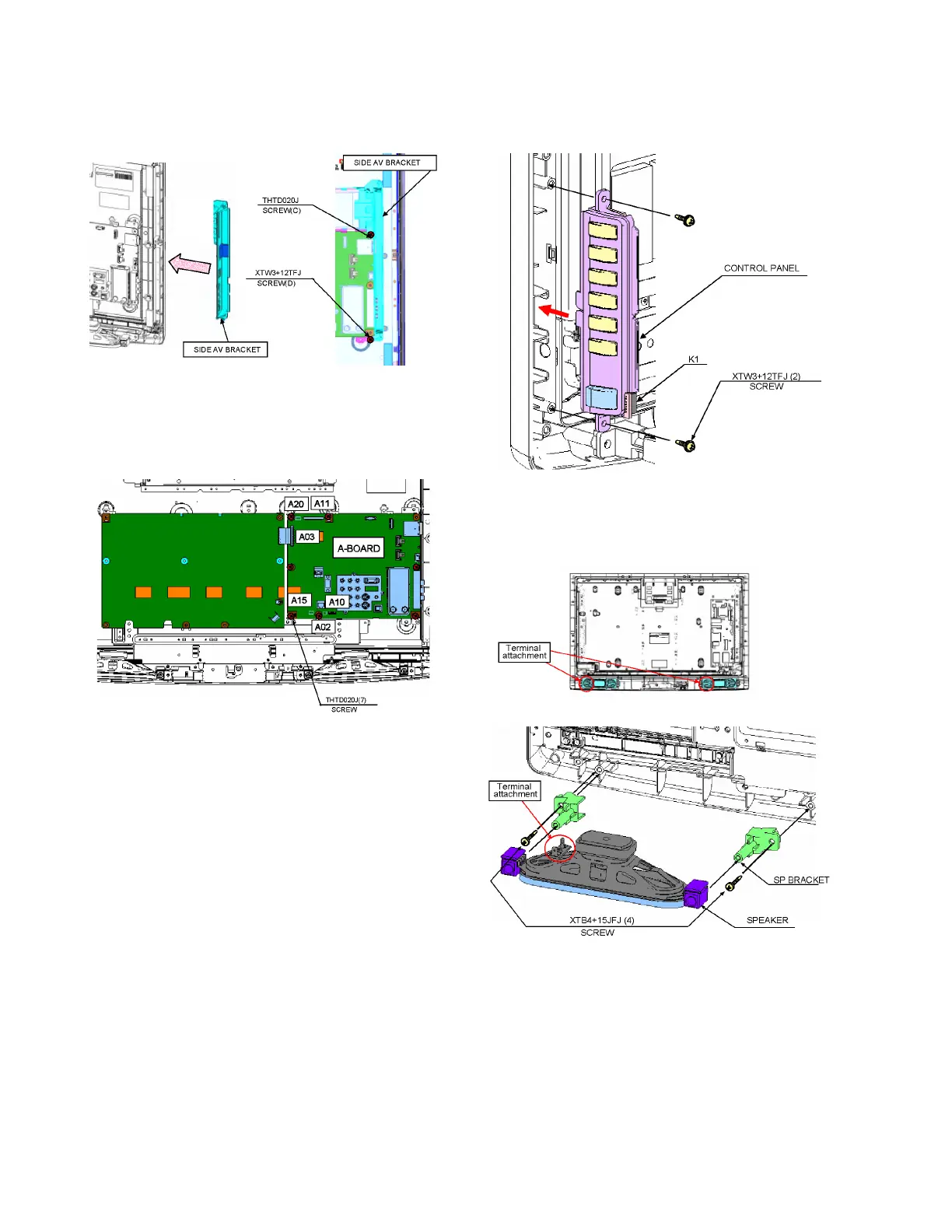

7.5. Side AV bracket
1. Remove the screw (C).
2. Remove the screw (D).
3. Remove the side AV bracket.
7.6. A-Board
1. Remove the 7 screws.
2. Disconnect the connector (A02/A03/A10/A11/A15/A20).
3. Remove the A-Board.
7.7. Control panel assy
1. Disconnect the connector (K1).
2. Remove the 2 screws.
3. Remove the control panel.
7.8. Speaker
1. Remove the 4 screws.
2. Remove the Speaker.
