Panasonic TC-P65V10 - Remove the Rear Cover Fix Holders; Remove the S-Board

26

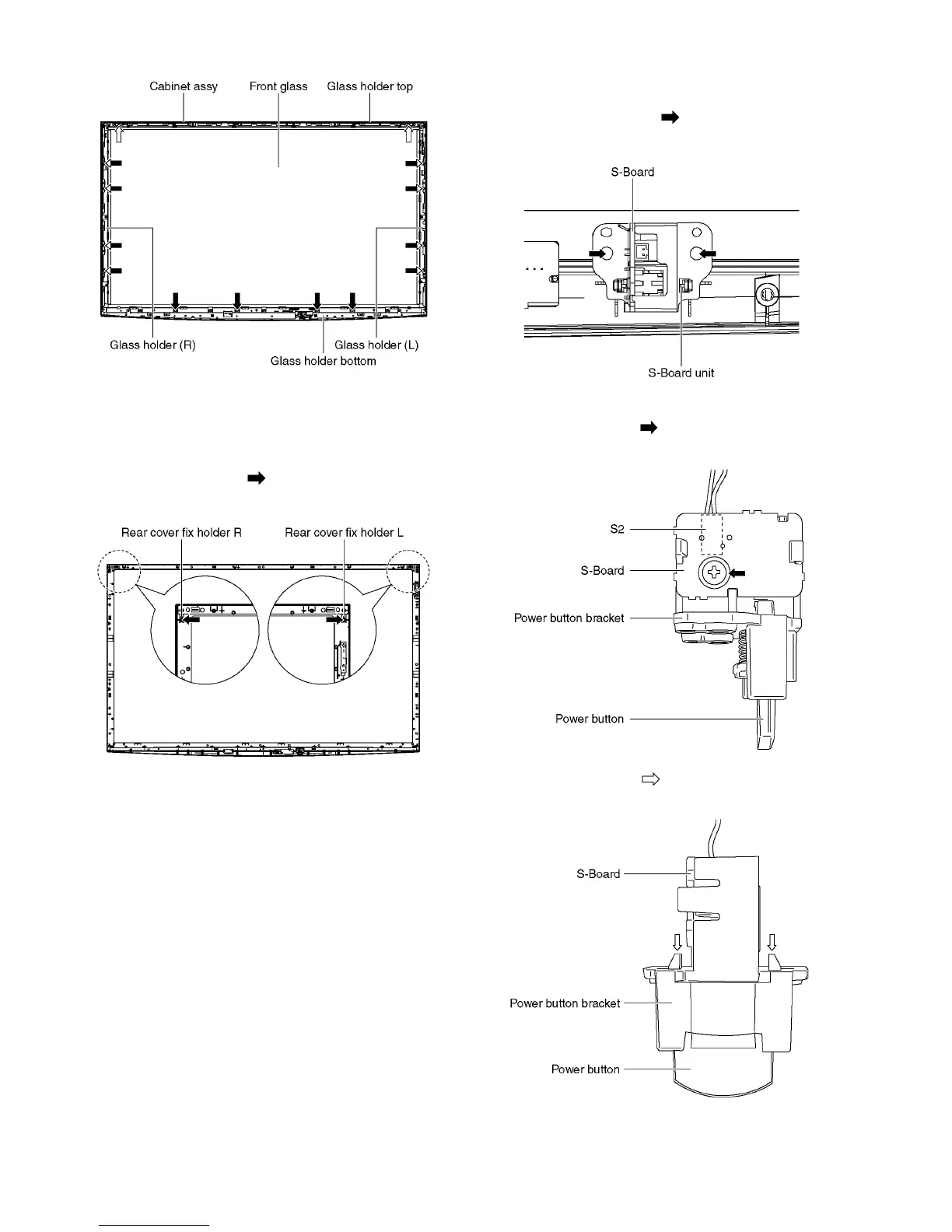

8.24. Remove the Rear cover fix
holders
1. Remove the Glass holders. (See section 8.23.)
2. Remove the screw (×1 each).
3. Remove the Rear cover fix holders (L, R).
8.25. Remove the S-Board
1. Remove the Glass holder bottom. (See section 8.23.)
2. Remove the screws (×2 ) and remove the S-Board
unit.
3. Disconnect the connector (S2).
4. Remove the screw (×1).
5. Remove the S-Board from the Power button bracket.
6. Remove the claws (×2 ).
7. Remove the Power button from the Power button bracket.
