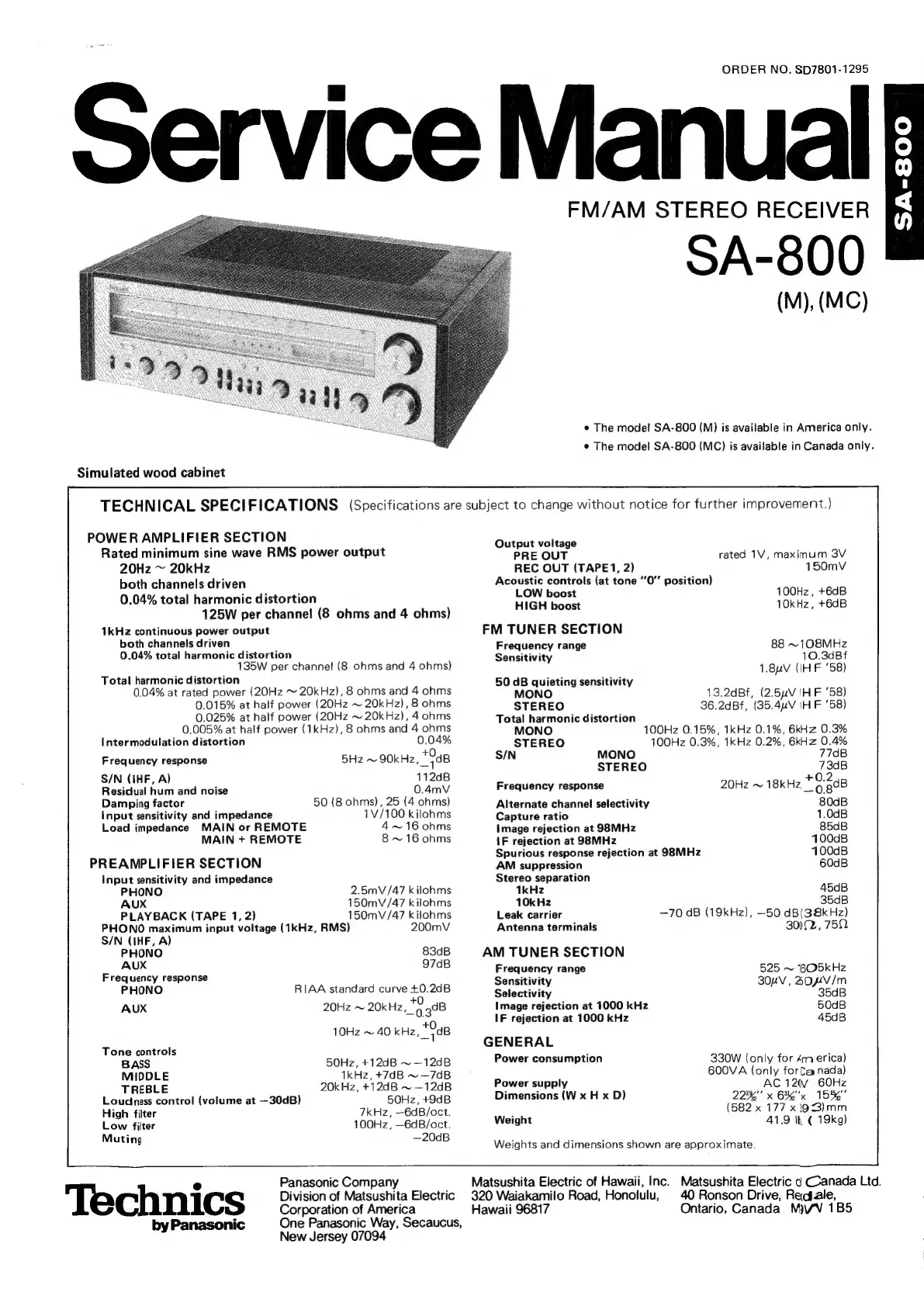

ORDER NO. SD7801-1295
Service
Manual
FM/AM STEREO RECEIVER
SA-800
(M), (MC)
e The model SA-800 (M) is available in America only.
e The model SA-800 (MC) is available in Canada only.
Simulated wood cabinet
TECHNICAL
SPECIFICATIONS
(Specifications
are
subject
to
change
without
notice
for
further
improvement.)
POWER AMPLIFIER SECTION
Rated minimum sine wave RMS power output
20Hz ~ 20kHz
both channels driven
0.04% total harmonic distortion
125W per channel (8 ohms and 4 ohms)
1kHz continuous power output
both channels driven
0.04% total harmonic distortion
Output voltage
PRE OUT
REC OUT (TAPE1, 2)
Acoustic controls (at tone “0” position)
LOW boost
HIGH boost
FM TUNER SECTION
Frequency range
Sensitivity
rated 1V, maximum 3V
150mV
100Hz, +6dB
10kHz, +6dB
88 ~108MHz
10.3dBf
Technics
135W per channel (8 ohms and 4 ohms)
Total harmonic distortion
0.04% at rated power (20Hz ~ 20kHz), 8 ohms and 4 ohms
0.015% at half power (20Hz ~ 20kHz), 8 ohms
0.025% at half power (20Hz ~ 20kHz), 4 ohms
0.005% at half power (1kHz), 8 ohms and 4 ohms
intermodulation distortion 0.04%
SHz ~ 90kHz, “dB
112dB
0.4mV
50 (8 ohms), 25 (4 ohms)
1V/100 kilohms
4 ~ 16 ohms
8 ~ 16 ohms
Frequency response
S/N (IHF, A)
Residual! hum and noise
Damping factor
Input sensitivity and impedance
Load impedance MAIN or REMOTE
MAIN + REMOTE
PREAMPLIFIER SECTION
input sensitivity and impedance
PHONO
AUX
PLAYBACK (TAPE 1, 2}
PHONO maximum input voltage (1kHz, RMS)
S/N (IHF, A)
PHONO
AUX
Frequency response
PHONO
AUX
2.5mV /47 kilohms
150mV/47 kilohms
150mV/47 kilohms
200mV
83dB
97dB
RIAA standard curve +0.2dB
+0
20Hz ~ 20k Hz,_ 9308
+0,
_798
10Hz ~ 40 kHz,
Tone controls
BASS
MIDDLE
TREBLE
Loudness control (volume at —30dB)
High filter
Low filter
Muting
50Hz, +12dB ~ —12dB
1kHz,+7dB ~—7dB
20k Hz, +12dB ~ —12dB
50Hz, +9dB
7kHz, —6dB/oct.
100Hz, —6dB/oct.
—20dB
Panasonic Company
Corporation of America
One Panasonic Way, Secaucus,
by Panasonic
New Jersey 07094
Division of Matsushita Electric 320 Waiakamilo Road, Honolulu,
Hawaii 96817
1.8uV (IH F ‘58)
50 dB quieting sensitivity
MONO
STEREO
Total harmonic distortion
MONO
STEREO
S/N MONO
STEREO
Frequency response
13.2dBf, (2.5uV 'H F 58)
36.2dBf, (35.4yV iH F ‘58)
100Hz 0.15%, 1kHz 0.1%, 6KHz 0.3%
100Hz 0.3%. 1kHz 0.2%. 6kHz 0.4%
7748
73dB
20Hz ~ 18kHz, * 0-208
80dB
1.00B
85dB
40008
400dB
60dB
Alternate channel selectivity
Capture ratio
Image rejection at 98MHz
{F rejection at 9SMHz
Spurious response rejection at 9IIMHz
AM suppression
Stereo separation
1kHz
10kHz
Leak carrier
Antenna terminals
45dB
35dB
—70 dB (19kHz), -50 dB(38kHz)
30), 750
AM TUNER SECTION
525 ~ BOSkHz
30uV, SOKV/m
35dB
50dB
45dB
Frequency range
Sensitivity
Selectivity
Image rejection at 1000 kHz
IF rejection at 1000 kHz
GENERAL
Power consumption 330W (only for &m erica)
600VA (only forCa nada)
AC 12(V 60Hz
222%" x B4"x 155%"
(582 x 177 x 193)mm
41.9 tk ( 19kg)
Power supply
Dimensions (W x H x D)
Weight
Weights and dimensions shown are approximate.
Matsushita Electric of Hawaii, Inc. Matsushita Electric ¢ Ccanada Ltd.
40 Ronson Drive, Redale,
Ontario, Canada MYWV 1B5
