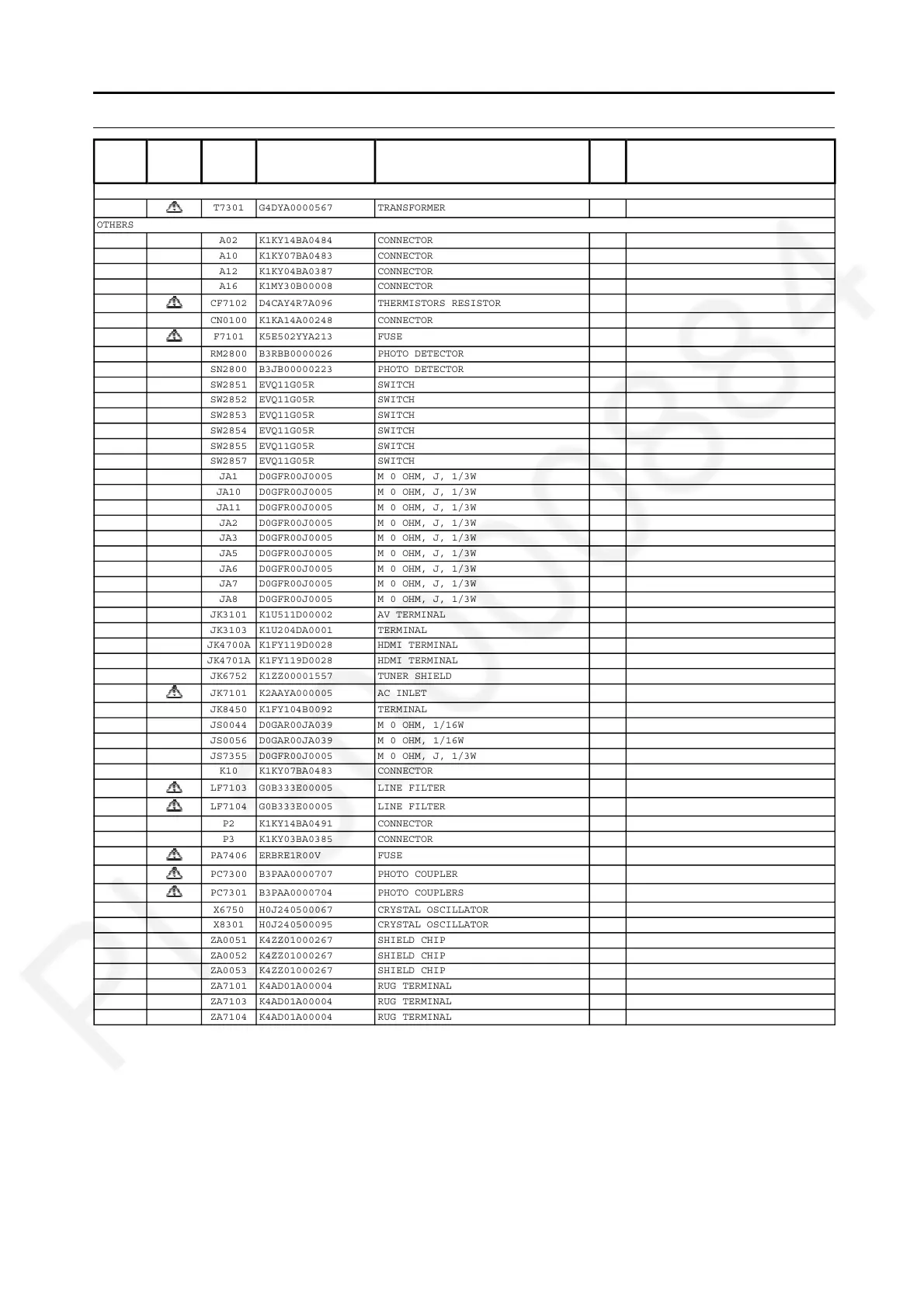

Panasonic TH-32F400A - Page 64

Change Safety
Ref.
No.
Part No. Part Name & Description Q'ty Remarks
TRANSFORMER
T7301 G4DYA0000567 TRANSFORMER
OTHERS
A02 K1KY14BA0484 CONNECTOR
A10 K1KY07BA0483 CONNECTOR
A12 K1KY04BA0387 CONNECTOR
A16 K1MY30B00008 CONNECTOR
CF7102 D4CAY4R7A096 THERMISTORS RESISTOR
CN0100 K1KA14A00248 CONNECTOR
F7101 K5E502YYA213 FUSE
RM2800 B3RBB0000026 PHOTO DETECTOR
SN2800 B3JB00000223 PHOTO DETECTOR
SW2851 EVQ11G05R SWITCH
SW2852 EVQ11G05R SWITCH
SW2853 EVQ11G05R SWITCH
SW2854 EVQ11G05R SWITCH
SW2855 EVQ11G05R SWITCH
SW2857 EVQ11G05R SWITCH
JA1 D0GFR00J0005 M 0 OHM, J, 1/3W
JA10 D0GFR00J0005 M 0 OHM, J, 1/3W
JA11 D0GFR00J0005 M 0 OHM, J, 1/3W
JA2 D0GFR00J0005 M 0 OHM, J, 1/3W
JA3 D0GFR00J0005 M 0 OHM, J, 1/3W
JA5 D0GFR00J0005 M 0 OHM, J, 1/3W
JA6 D0GFR00J0005 M 0 OHM, J, 1/3W
JA7 D0GFR00J0005 M 0 OHM, J, 1/3W
JA8 D0GFR00J0005 M 0 OHM, J, 1/3W
JK3101 K1U511D00002 AV TERMINAL
JK3103 K1U204DA0001 TERMINAL
JK4700A K1FY119D0028 HDMI TERMINAL
JK4701A K1FY119D0028 HDMI TERMINAL
JK6752 K1ZZ00001557 TUNER SHIELD
JK7101 K2AAYA000005 AC INLET
JK8450 K1FY104B0092 TERMINAL
JS0044 D0GAR00JA039 M 0 OHM, 1/16W
JS0056 D0GAR00JA039 M 0 OHM, 1/16W
JS7355 D0GFR00J0005 M 0 OHM, J, 1/3W
K10 K1KY07BA0483 CONNECTOR
LF7103 G0B333E00005 LINE FILTER
LF7104 G0B333E00005 LINE FILTER
P2 K1KY14BA0491 CONNECTOR
P3 K1KY03BA0385 CONNECTOR
PA7406 ERBRE1R00V FUSE
PC7300 B3PAA0000707 PHOTO COUPLER
PC7301 B3PAA0000704 PHOTO COUPLERS
X6750 H0J240500067 CRYSTAL OSCILLATOR
X8301 H0J240500095 CRYSTAL OSCILLATOR
ZA0051 K4ZZ01000267 SHIELD CHIP
ZA0052 K4ZZ01000267 SHIELD CHIP
ZA0053 K4ZZ01000267 SHIELD CHIP
ZA7101 K4AD01A00004 RUG TERMINAL
ZA7103 K4AD01A00004 RUG TERMINAL
ZA7104 K4AD01A00004 RUG TERMINAL
Model No. : TH-32F400A TH-32F400Z Parts List
