Change Safety
Ref.
No.
Part No. Part Name & Description Q'ty Remarks
Exploded View
K2CJ2YY00087 AC CORD
1 L0EYAA000052 SPEAKER UNIT
N2QAYB001116 REMOTE_TRANSMITTER
TBX5ZA03303A KEY BUTTON BRACKET
2 TKK5ZC50502 LED PANEL
3 TKP5ZA48902 SIDE AV BRACKET
4 TPC4GA45501 LAYER PAD
5 TPD4GA07051A CUSHION_CORNER
TPD4GA07061A CUSHION_ACCESSORY_R
TPD4GA07511 CUSHION_ACCESSORY_L
6 TPE4GH065 SET COVER
TQF4GB231 ENERGY STAR LABEL (TH-32F400Z)
TQF4GB229 ENERGY STAR LABEL (TH-32F400A)
TQZ4GC291 FAN BAG ASSY
TSCKF0700001 LVDS CABLE
7 TXFPC01BBVZ CARTON_ASSY (TH-32F400Z)
TXFPC01BXVA CARTON_ASSY (TH-32F400A)
8 TZBL4GX00371 PEDESTAL_ASSY-L
9 TZBL4GX00381 PEDESTAL_ASSY -R
10 TZBL4GX00681 STAND MOLD ASSY ASSY
TZLP225KEAA1 ASSY 32 INHOUSE PANEL
11 TZTU4GA2174
BACK COVER COMPLETE ASSY
(TH-32F400Z)
TZTU4GA2171
BACK COVER COMPLETE ASSY
(TH-32F400A)
Electrical Replacement Part List
RTL TZT/A1BBVZ A PRINT(FINISHED) (TH-32F400Z)
RTL TZT/A1BXVA A PRINT(FINISHED) (TH-32F400A)
RTL TXN/K1BXVA K PRINT(FINISHED)
RTL TXN/P1BXVA P PRINT(FINISHED)

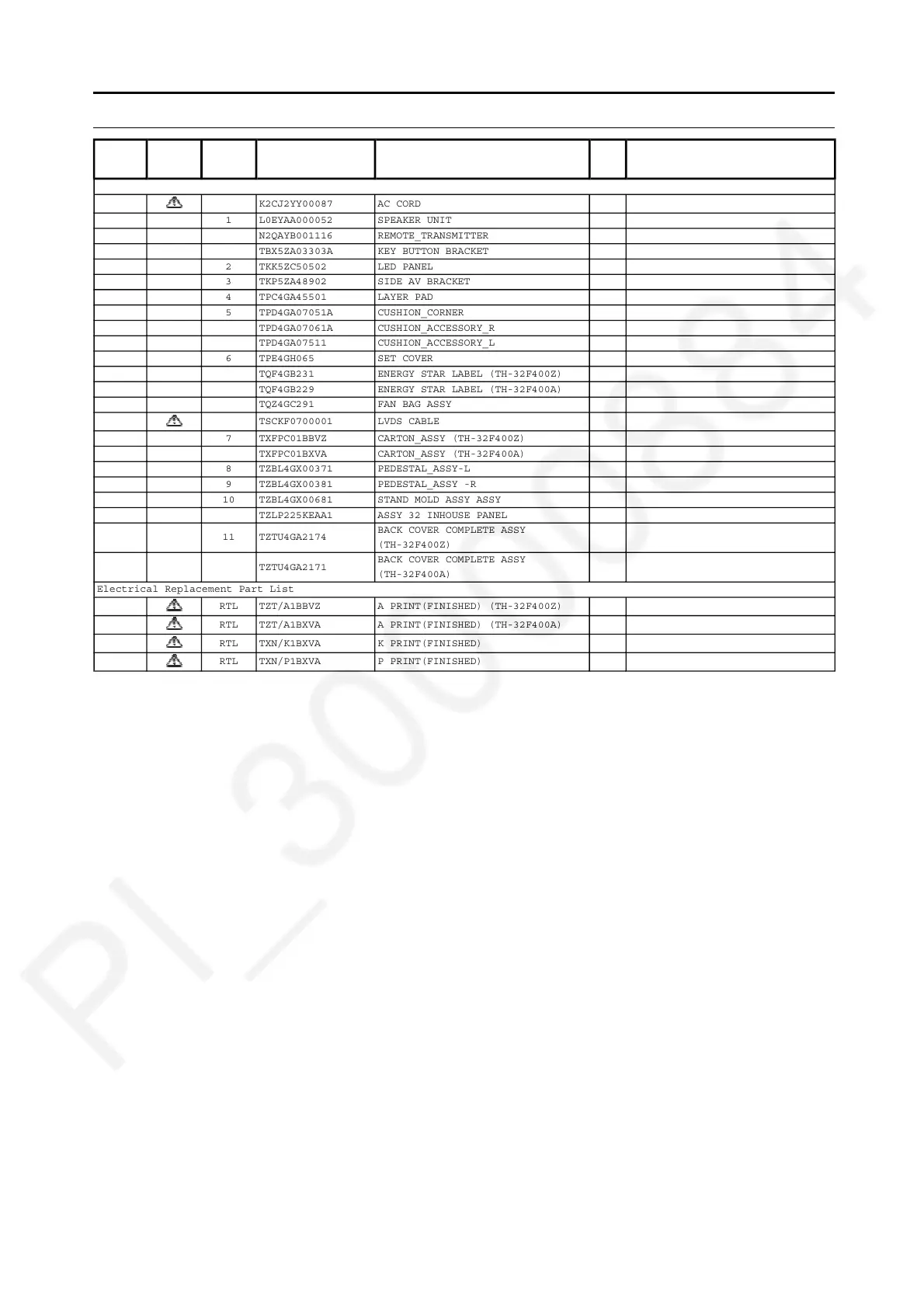

Model No. : TH-32F400A TH-32F400Z Parts List
