MULTI DISPLAY Setup
MULTI DISPLAY Setup
Ratio
On
2 2
Location
A1
Press to select Ratio (2nd step).
Press to select “2×2”, “3×3”.

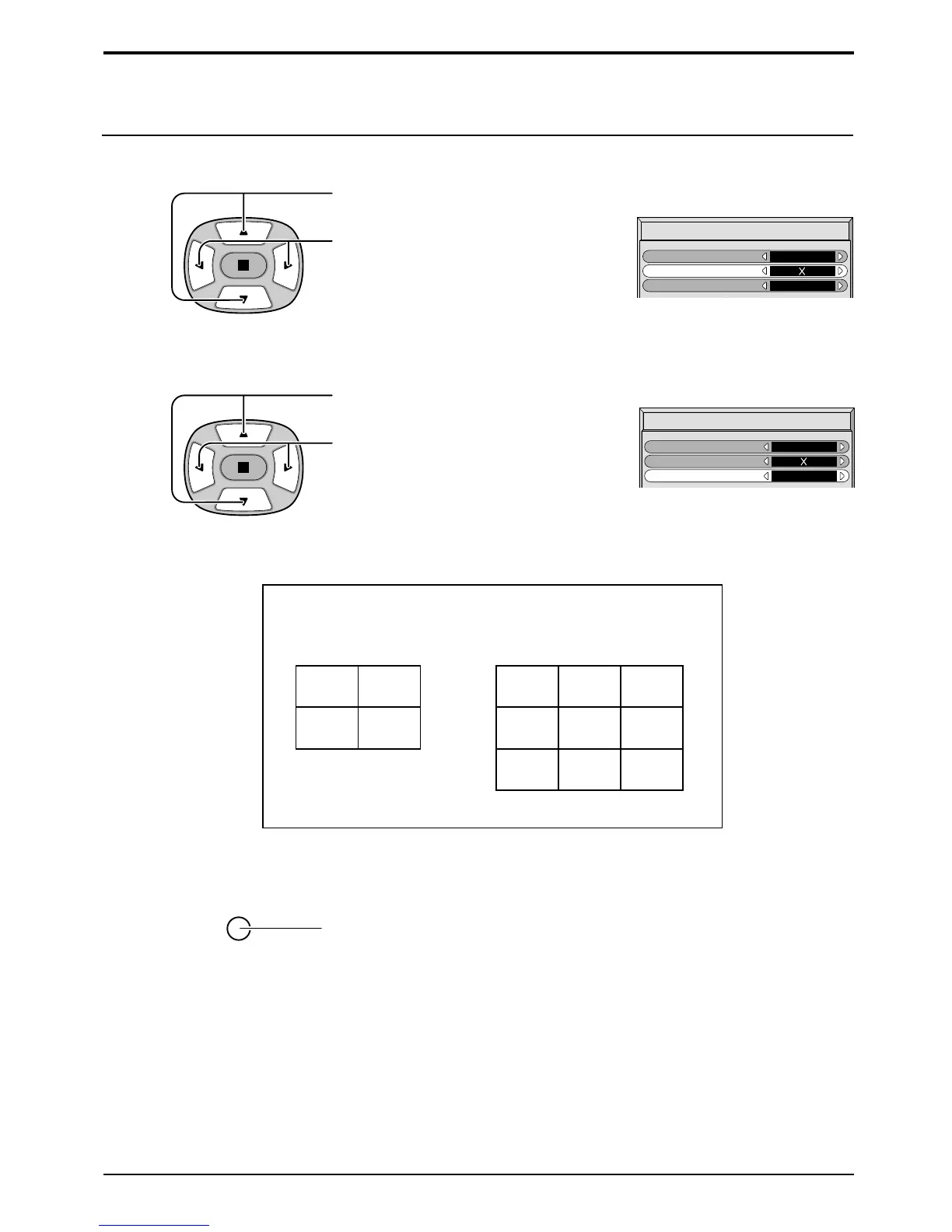

How to set the display location number for each Plasma Display
Press to select Location.
Press to select the required arrangement
number. (A1-C3 : Refer to the following)
4
5
MULTI DISPLAY Setup
MULTI DISPLAY Setup
Ratio
On
2 2
Location
A1
A1 A2
B1 B2
A1 A2 A3
B1 B2 B3
C1 C2 C3
Display Number locations for each arrangement
Setup for MULTI DISPLAY
6
R
Press twice to exit from Setup.
Notes:
(1) For PC or RGB input signals, normal multi-display magnification is only available at the VGA resolution.
(2) The multi-display capability is not functional for component signals.
(3) The MultiDisplay (multiskærmdisplay) function does not display certain input signals from the terminals of the
installed option boards listed below:
• Component input signals from the scart and RCA terminals of scart terminal board (TY-37TM5TB or TY-42TM5TB)
