36
SERIALPC IN
AUDIO
PR/CR/R
P
B/CB/B Y/G
COMPONENT/RGB INAV IN
VD
HD
S VIDEOVIDEO
RL
AUDIO
RL
AUDIO
SPEAKER
Terminals (R)
SPEAKER
Terminals (L)
Connections
COMPONENT/RGB IN and Audio IN Terminals
(see page 38 , 39)

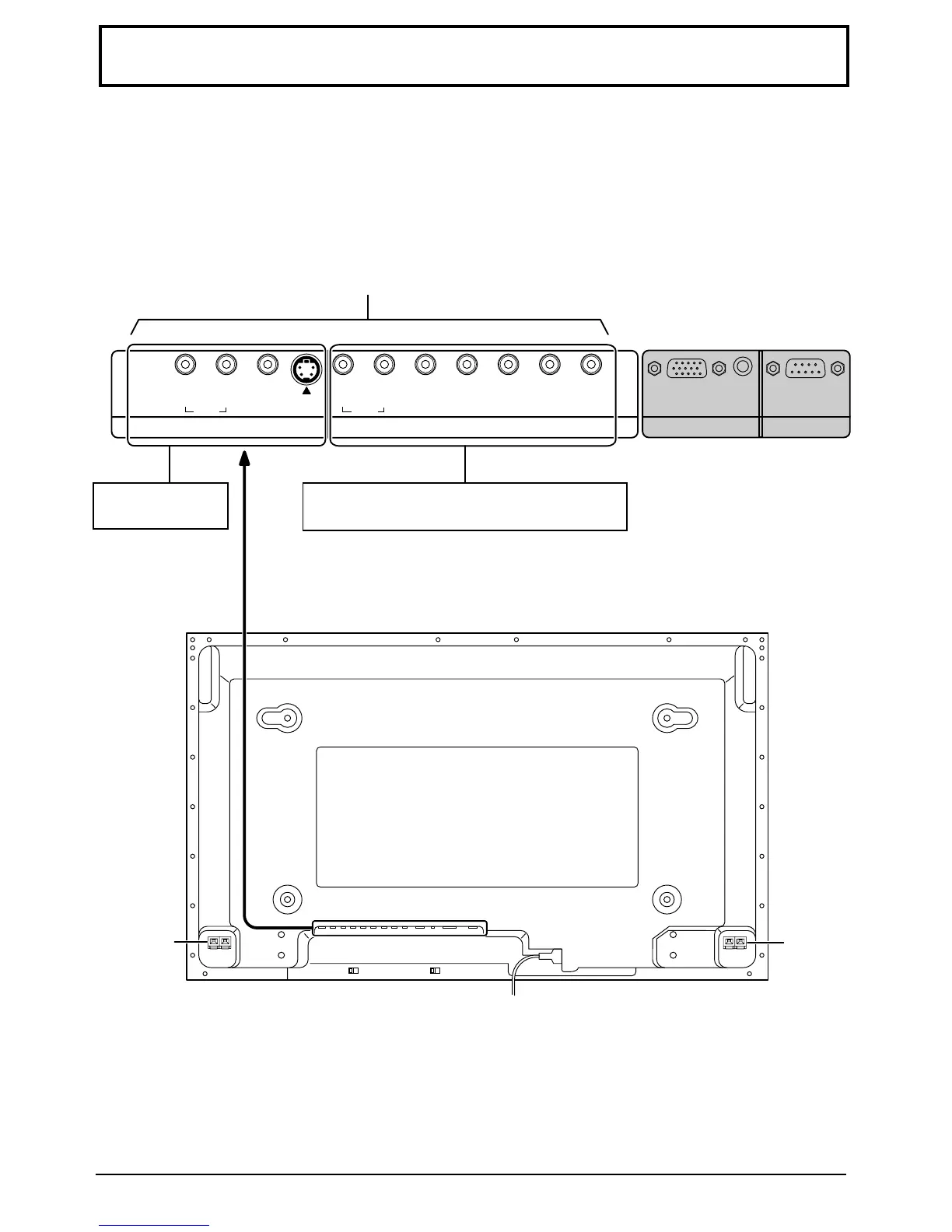

Connection to the Optional Terminal Board
By installing the optional RCA Terminal Board, the Plasma Display can handle high quality input signals such as AV
(S Video), DVD, and RGB. Below is the connecting method when the optional RCA Terminal Board is installed.
Notes:
After installing the Optional Terminal Board, the Setup menu screen on the Plasma Display will change. (The input
signal cables should be connected to the relevant terminals).
The input signals that may be selected by the INPUT button will change.
The required mode, either "Component" or "RGB" and "Component/RGB-In Select", will be available for selection.
On the Setup menu screen, the setting contents under Signal will change.
AV IN Terminals
(see page 37, 38)
Optional RCA Terminal Board
TY-37TM4ZB(TH-37PW5)
TY-42TM4ZB(TH-42PW5)

Other manuals for Panasonic TH-42PW5

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Panasonic TH-42PW5 and is the answer not in the manual?

Panasonic TH-42PW5 Specifications

General IconGeneral
Weight29500 g
I/O ports1 x D-Sub 15-pin 1 x M3 stereo plug 1 x RS232C (D-Sub 9-pin)
Comb filter3D
Pixel pitch1.08 mm
Aspect ratio16:9
Product colorSilver
Display diagonal42 \
Sound output modestereo
Display brightness650 cd/m²
Display resolution852 x 480 pixels
Display technologyPlasma
Power requirementsAC 220 - 240 V, 50/60Hz
Vertical scan range48 - 120 Hz
Horizontal scan range15.6 - 110 kHz
Contrast ratio (typical)3000:1
Power consumption (typical)295 W
