17
English

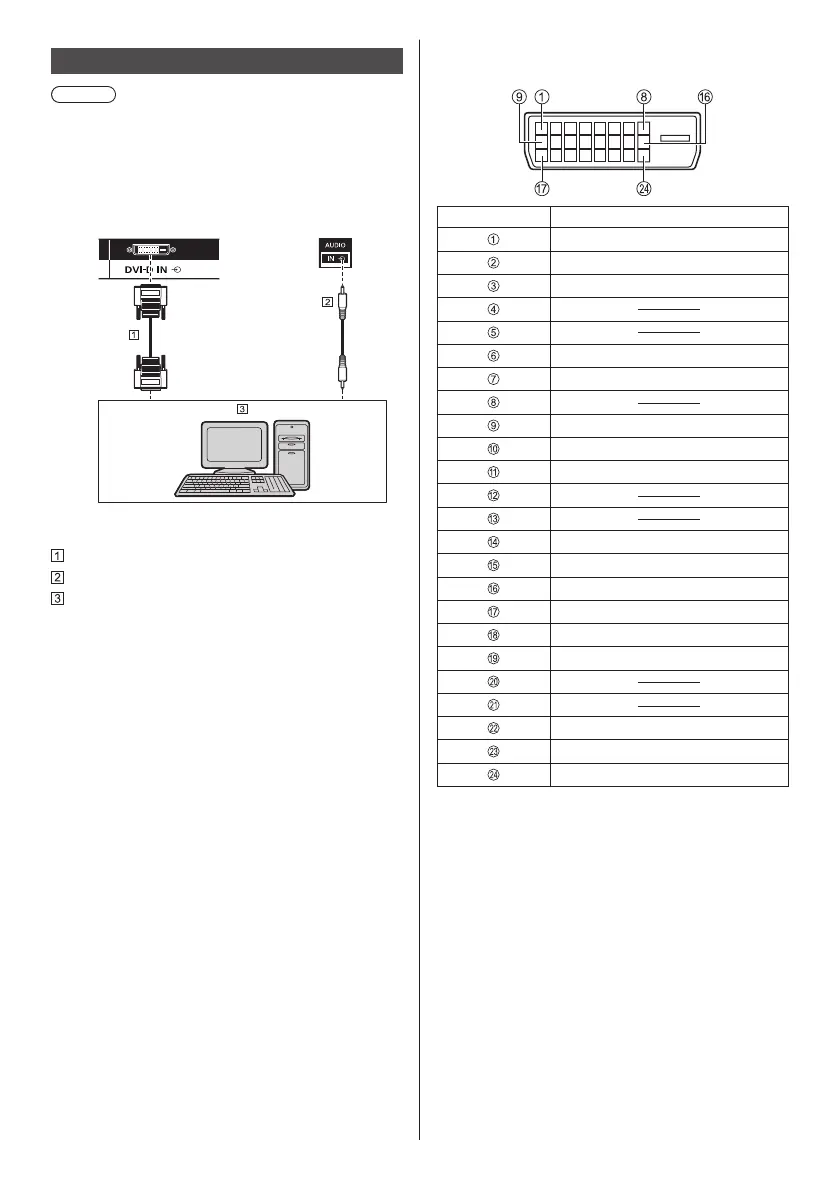

DVI-D IN terminal connection
Note
Ɣ
Additional equipment and cables shown are not
supplied with this set.
Ɣ
Use the DVI-D cable complying with the DVI
standard. Image deterioration may occur depending
on the length or the quality of the cable.
Shared with PC IN.
DVI-D video cable (Within 5 m) (not supplied)
Stereo mini plug (M3) cable (not supplied)
PC with DVI-D video out
Pin assignments and signal names for DVI-D
Input Connector
Pin No. Signal Name
T.M.D.S. data 2-
T.M.D.S. data 2+
T.M.D.S. data 2 shield
DDC clock
DDC data
T.M.D.S. data 1-
T.M.D.S. data 1+
T.M.D.S. data 1 shield
+5 V DC
GND (Ground)
Hot plug detect
T.M.D.S. data 0-
T.M.D.S. data 0+
T.M.D.S. data 0 shield
T.M.D.S. clock shield
T.M.D.S. clock+
T.M.D.S. clock-
