Maintenance and Adjustment
Replacing Pen Tip and Eraser Tip of Electronic Pen
If the pen tip and eraser tip of the electronic pen are worn, they do not slide smoothly. Replace them with new ones
as soon as possible because keeping using them may cause a scratch on the display or malfunction.
Notice
Turn off the electronic pen before replacing the pen tip / eraser tip.

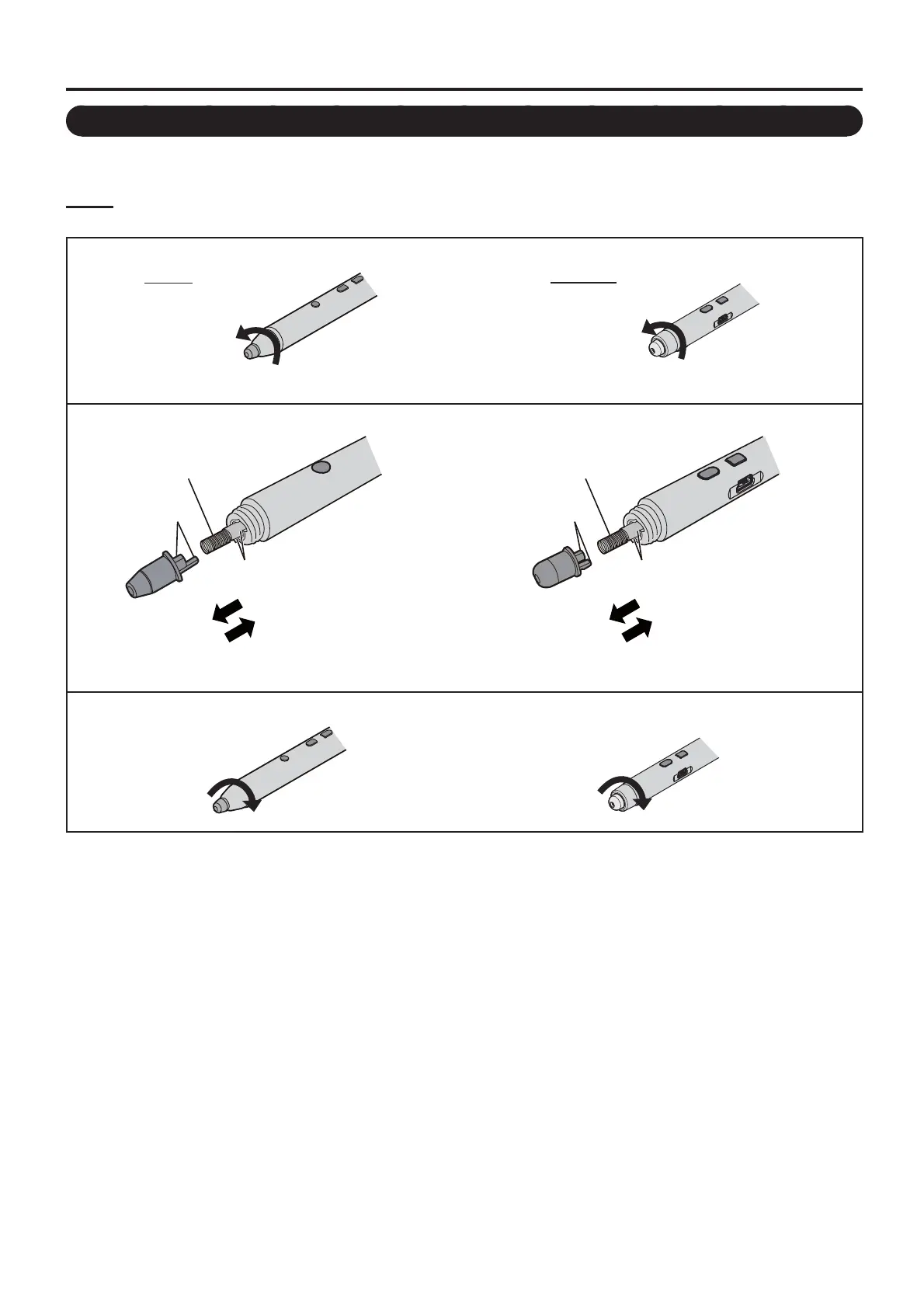

1. Remove the pen tip cover / eraser tip cover
Pen tip
Eraser tip
Raising the pen makes replacement easier.•
2. Remove the used pen tip / eraser tip and attach the new pen tip / eraser tip
Remove the used pen tip
Attach the new pen tip
Projections
Cutouts
Spring
Remove the used eraser tip
Attach the new eraser tip
Projections
Cutouts
Spring
Align the projection of pen tip / eraser tip with the cutout of pen body.•
Be careful not to lose the spring when replacing the pen tip / eraser tip.•
3. Attach the pen tip cover / eraser tip cover
