TH-50PF30U

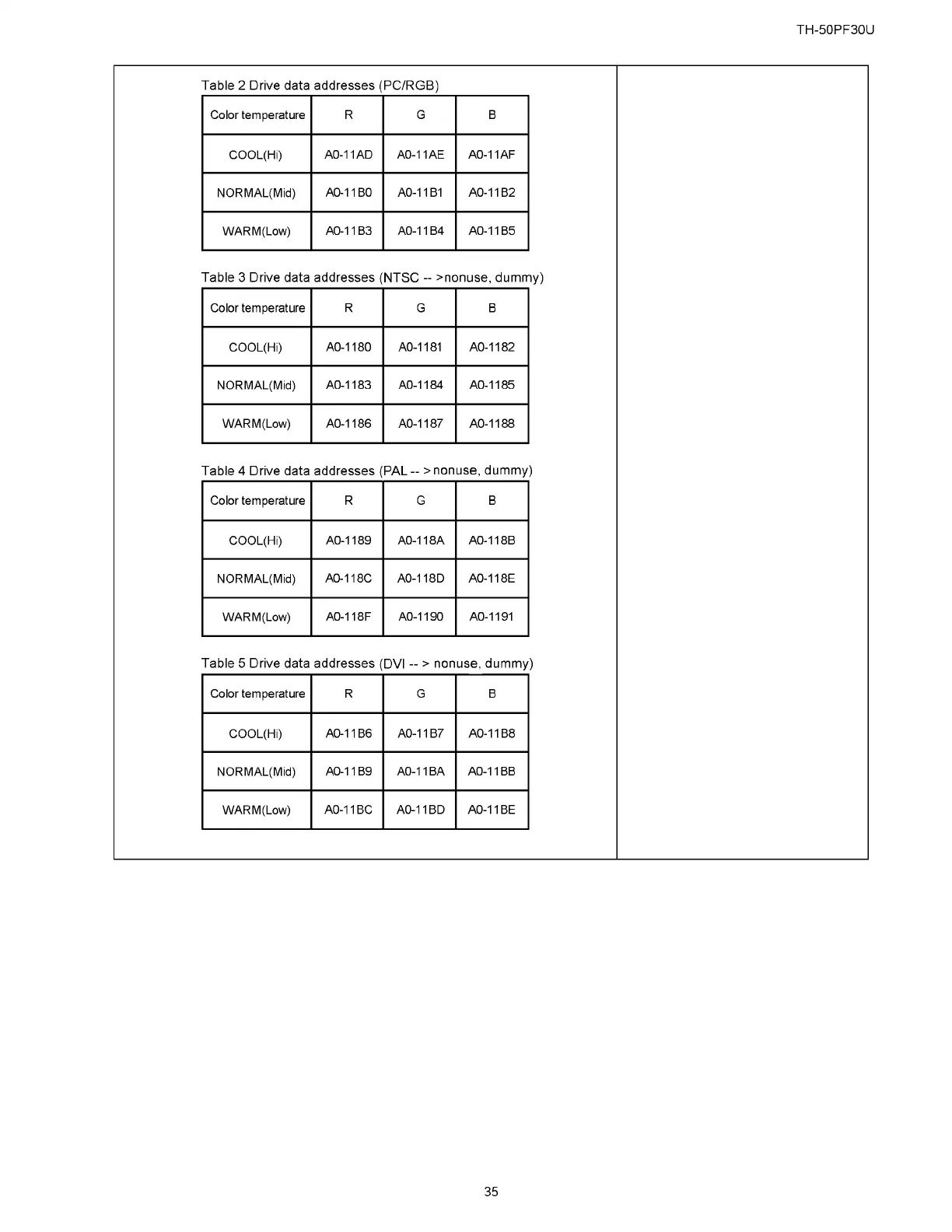

Table 2 Drive data addresses (PC/RGB)
Color temperature R G В
COOL(Hi)
AO-11 AD A0-11AE A0-11AF
NORMAL(Mid)
AO-11 BO AO-11B1 AO-11B2
WARM(Low)
AO-11B3 AO-11B4 AO-11B5
Table 3 Drive data addresses (NTSC - >nonuse, dummy)
Color temperature R G В
COOL(Hi)
AO-1180 AO-1181 AO-1182
NORMAL(Mid)
AO-1183 AO-1184 AO-1185
WARM(Low) AO-1186 AO-1187 AO-1188
Table 4 Drive data addresses (PAL - > nonuse, dummy)
Color temperature R G В
COOL(Hi)
AO-1189 A0-118A A0-118B
NORMAL(Mid)
A0-118C A0-118D A0-118E
WARM(Low)
A0-118F AO-1190 AO-1191
Table 5 Drive data addresses (DVI — > nonuse, dummy)
Color temperature R G В
COOL(Hi)
AO-11B6 AO-11B7 AO-11B8
NORMAL(Mid)
AO-11B9 AO-11 BA AO-11BB
WARM(Low)
AO-11BC AO-11BD AO-11 BE
