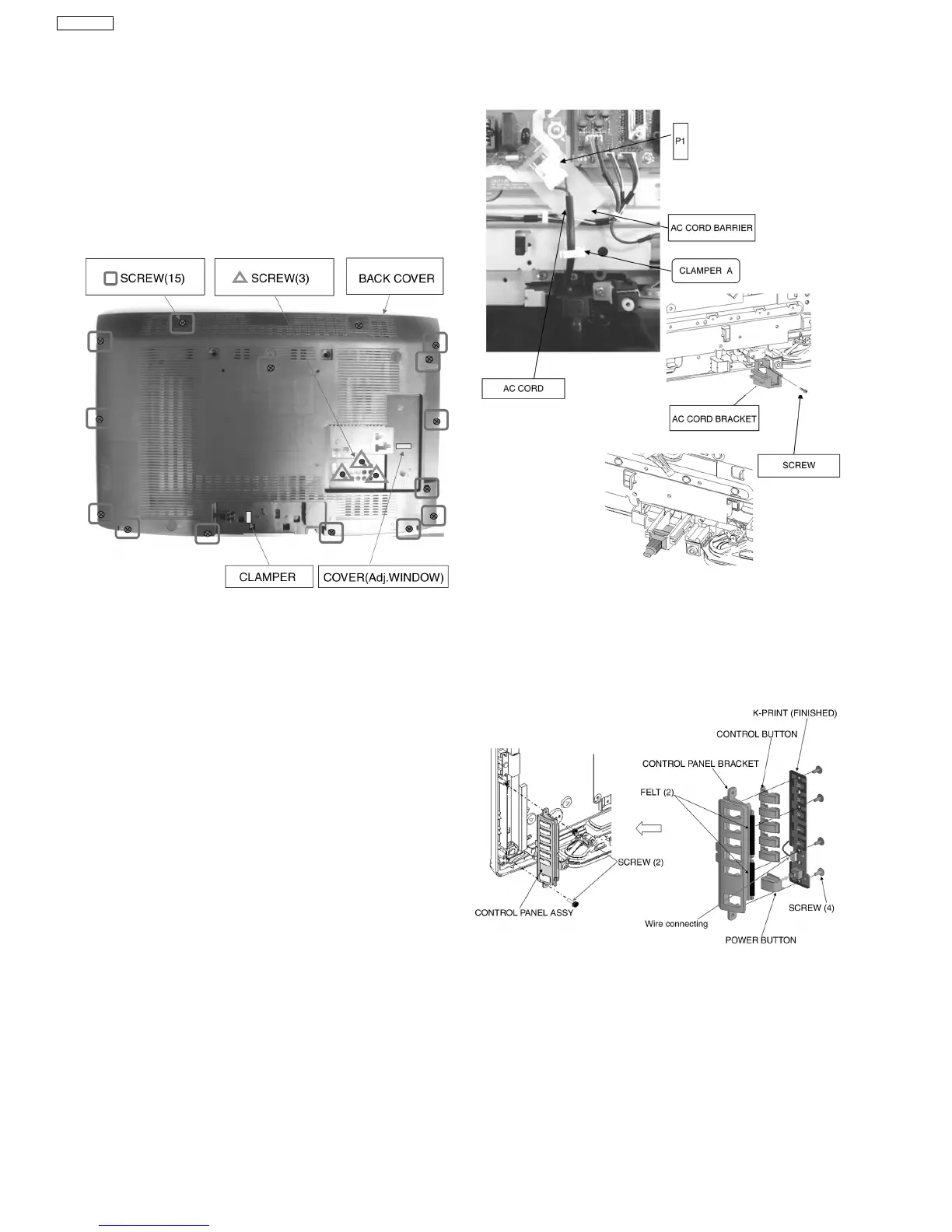

9.1. Remove the back cover
1. Lay the main unit down with the back cover facing upwards.
2. Please refer to the Operating Instruction about the pedestal
bracket.
3. Remove screws (×15, ×3).
4. Remove back cover.
9.2. Remove AC cord
1. Remove the back cover. (See 9.1)
2. Disconnect the AC cord from AC cord bracket .
3. Unlock the cable clamper A,disconnect connector P1.
4. Remove AC cord.
9.3. Control panel assy
1. Remove the back cover (See 9.1)
2. Remove screws(×2) and remove control panel assy.
3. Remove screws(×4), then remove K-PCB,control
button,control panel bracket.
