Panasonic TH-L32X10A

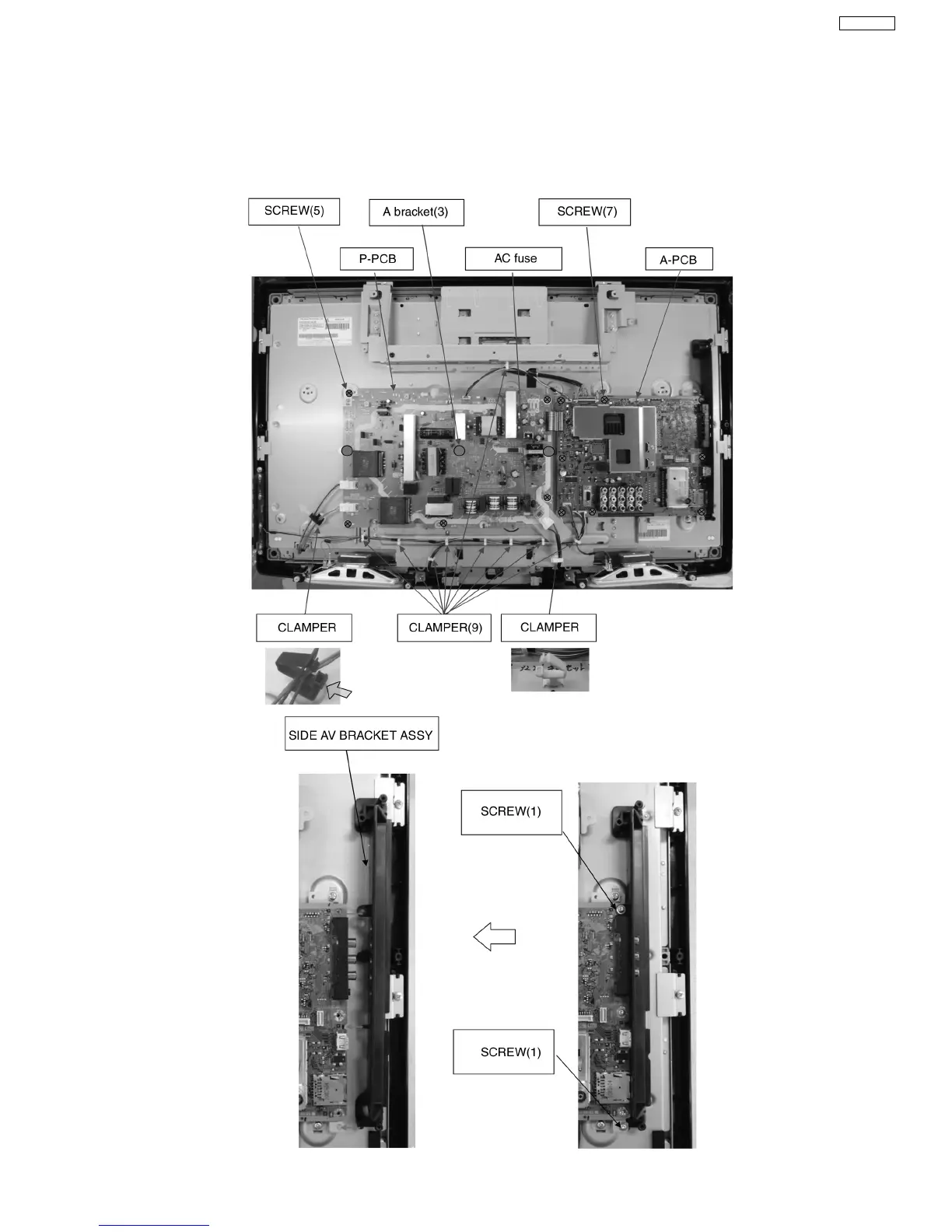

9.4. Side AV stand bracket,A-board,P-board
1. Take off pedestal bracket. (See 9.1)
2. Remove screws(×2) and side AV stand bracket.
3. Unlock the cable from cable clamper,disconnect the connector.
4. Remove screws(×5), take off A-board;Remove screws(×7), take off P-board.
15
TH-L32X10A
