Panasonic TX-28DK2 - Audio; Video Connections; Via the Rear AV1; AV2(S) 21 Pin Scart Terminals

40
Input/Output from
AV2 Scart Socket
Q-- Link data
Input/Output from
AV1 Scart Socket
VCR
S-- VIDEO VCR
Q-- LINK COMP ATIBLE VCR
S-- VIDEO CAMCORDER

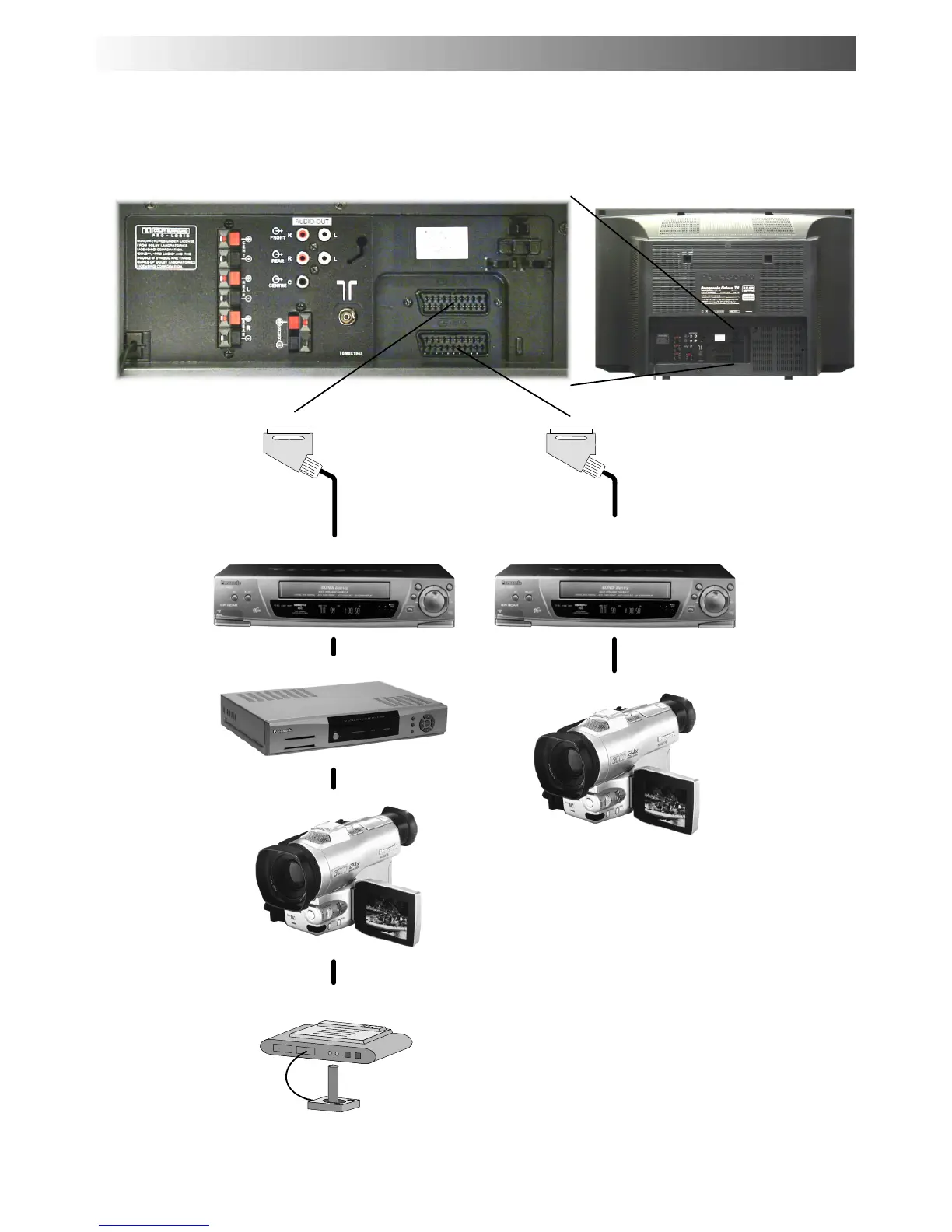

Rear AV1/AV2(S) 21 Pin Scart terminals
Notes:
Additional equipment and cables shown are not supplied with this TV set
Do not connect a computer with TTL output (5V) to this set
Scart cable
Scart cable
VCR
CAMCORDER
GAMES CONSOLE / COMPUTER (RGB)
SATELLITE RECEIVER
AUDIO / VIDEO CONNECTIONS
