Panasonic TX-28DK2 - Rear Dolby Surround out RCA Terminals; Audio out Using External Amplifiers and Speakers

41

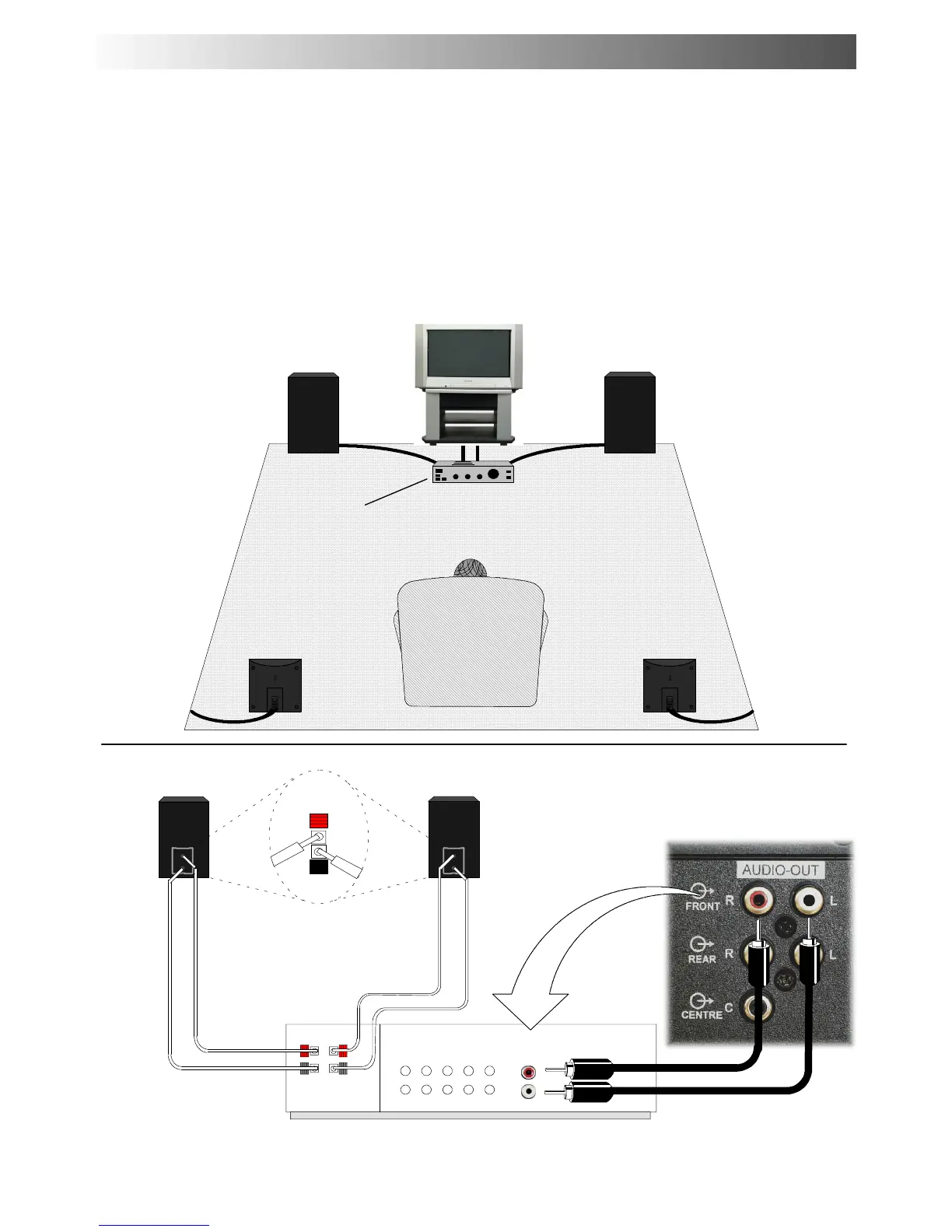

Rear Dolby Surround Out RCA terminals ---
Audio out using external amplifiers and speakers
The Audio Out sockets on the rear of the TV allow you to create your own custom sound output system using
additional external amplifiers and speakers. You may decide, for example, to use an external amplifier and speakers
for the Front surround output.
Utilising an existing stereo hi-- fi system comprising one amplifier, connected to the FRONT DOLBY SURROUND
OUT sockets and two speakers to allow separate front left and right channels.
The internal speaker can be switched off in the Surround menu.
Use Phono (RCA) connectors
(not supplied)
--- B l a c k
terminal
+Red
terminal
+Red
terminal
--- B l a c k
terminal
Existing hi---fi speaker used
as front right surround speaker
Rear view of Hi--- Fi Amplifier
RL
PH.
CD
TAPE
TUNER
SPEAKERS
---
+
R
L
PLAY REC
Existing hi---fi speaker used
asfrontleftsurroundspeaker
Right Rear
Surround Speaker
Left Rear
Surround Speaker
Front
Right
Speaker
(not
supplied)
Front
Left
Speaker
(not
supplied)
External Amplifier
(not supplied)
Black (--)
Speaker
Red (+)
AUX
Output from the
FRONT AUDIO OUT Sockets
Connect (R) Right to Right input (R) of AUX.
Connect (L) Left to Left input (L) of AUX.
AUDIO / VIDEO CONNECTIONS
