Panasonic TX-32LXD80F - Conductor Views

sss
IC’S
Q2069 C7
IC1101 E1 Q2070 C7
IC1104 C7 Q2071 C7
IC2106 E6 Q3000 A4
IC2107 E5 Q3001 A4
IC2301 C7 Q3002 A5
IC4510 D2 Q3003 A5
IC4514 C1 Q3004 B5
IC4515 C2 Q3005 B5
IC5602 E7 Q4501 C1
IC5660 E1 Q4514 D1
IC5751 E3 Q4515 D1
IC5752 D3 Q4702 C1
IC8001 C4 Q5600 D6
IC8002 C5 Q5601 C5
IC8003 C5 Q5602 D5
IC8403 B3 Q5605 E6
IC8601 B1 Q5606 E6
Q5607 E6
TRAN’S
Q5608 E6
Q1101 C7 Q5609 E6
Q1102 C6 Q5610 E6
Q1103 C6 Q8401 B3
Q1280 C7 Q8402 B3
Q1281 C6
Q2001 D6
DIODE’S
Q2020 D6 D1107 D1
Q2063 C7 D3052 C5
Q2067 B4 D3054 C5
Q2068 B4 D4450 E1
Conductor Views

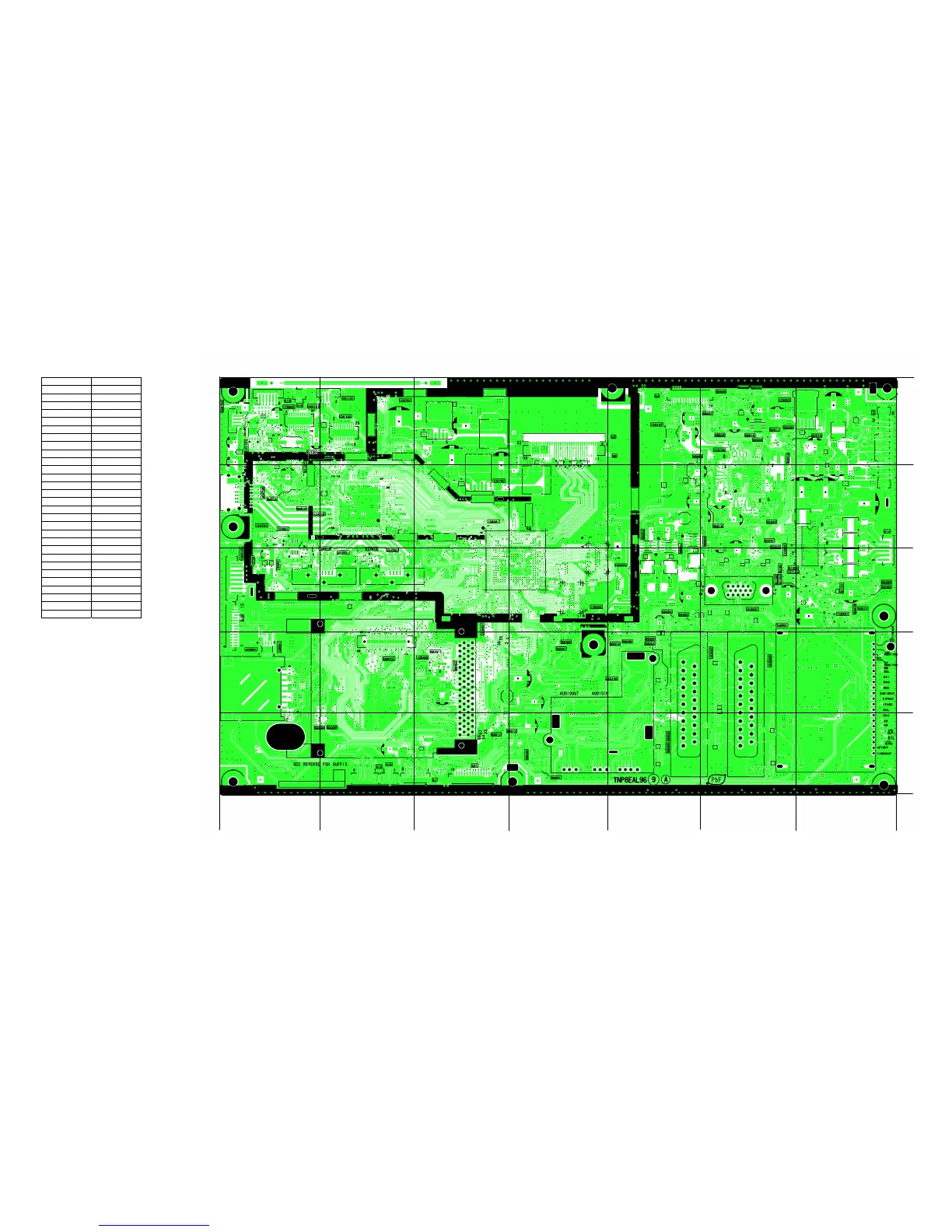

A-BOARD TNP8EAL96 - top
1
2
3
4
A
B
C
D
6
5
7
E
58
