Panasonic TX-32LXD80F - Chassis Board Layout; Location of Lead Wiring

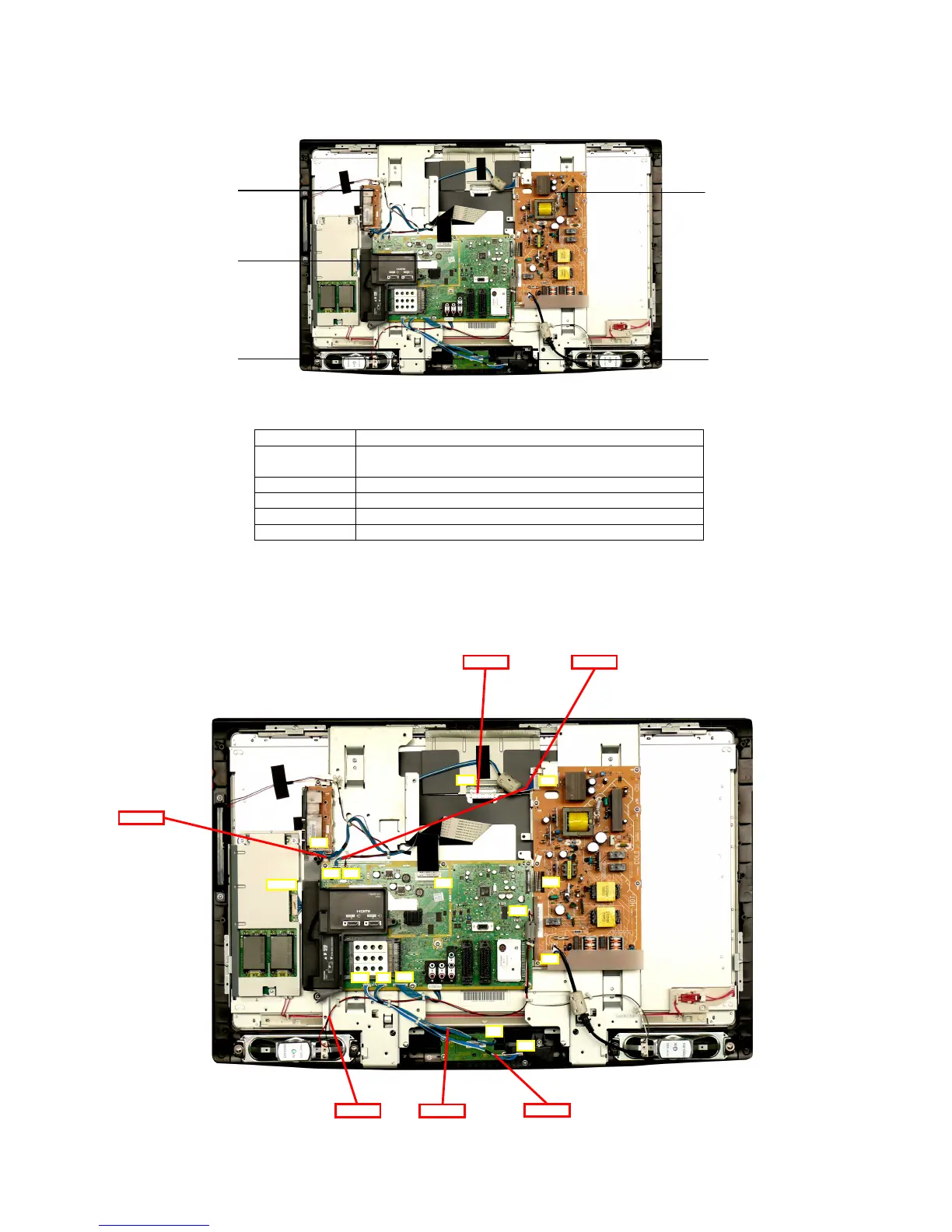

Chassis Board Layout
Location of Lead Wiring
To find the Part Number of required wire in Replacement Parts List click on the wire name in red box.
Board Name Function
A-Board Tuner, PC, AVSW, HDMI,CI Slot, Global Core,
GENX, AV Terminal, SD Slot, Speaker out, ADV
Power Unit Power Supply
V-Board Remote Receiver, Cats, R/G LED, Time Led
G-Board Side AV Connector
K-Board Main Switch
V-BOARD
A-BOARD
POWER UNIT
G-BOARD
9
P3
A1-V1
A12-K1
A14-SPK
CN-A,P
A51-G51
A5-PAN
K-BOARD
P1
A
14
A51
A13
A1A12
A10
G51
V1
K1
A
5
CN3
CN101
P2
