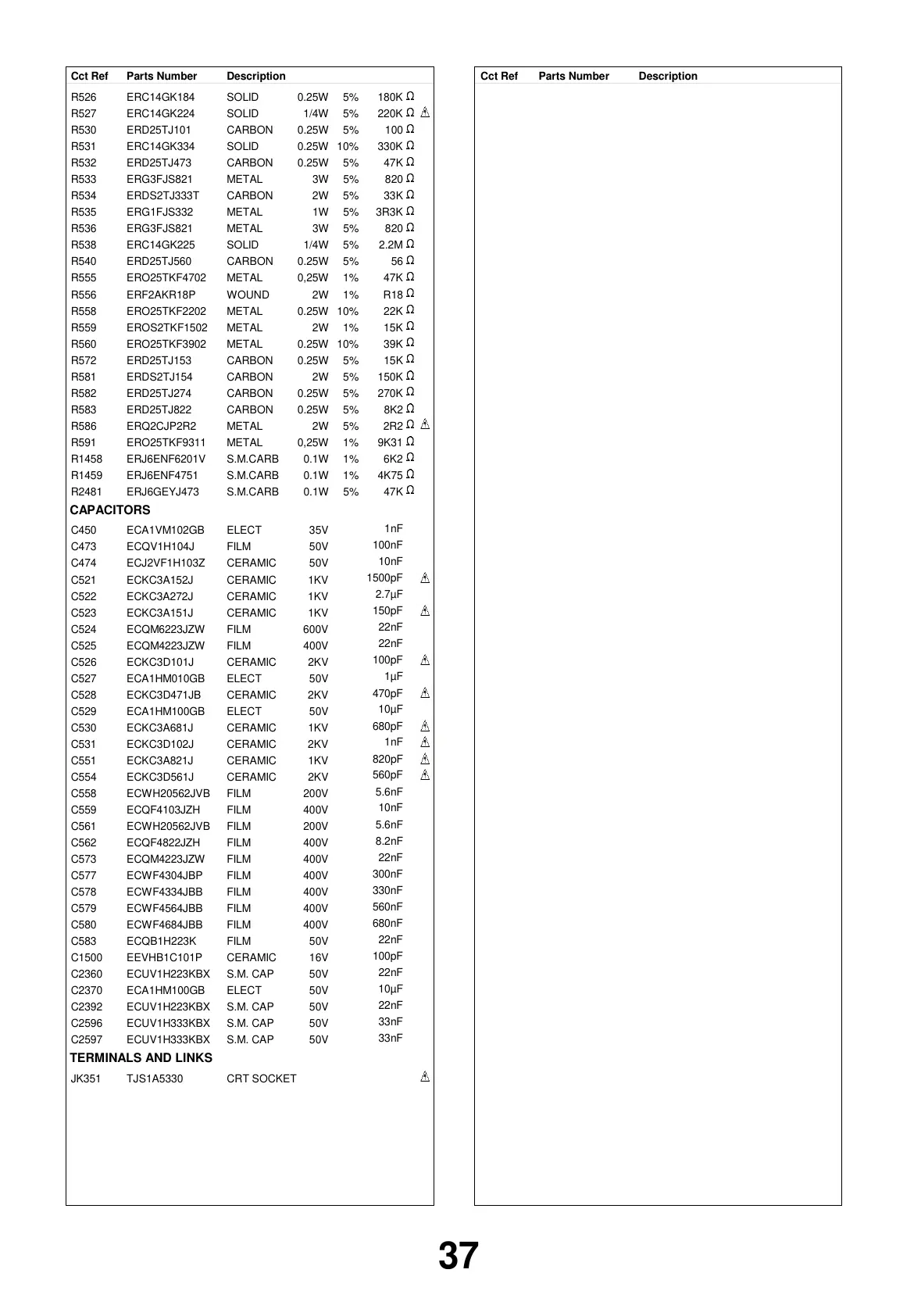

Panasonic TX-32PB50 - Page 37

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
SOLIDR526 ERC14GK184 0.25W 5% 180K
SOLIDR527 ERC14GK224 1/4W 5% 220K
CARBONR530 ERD25TJ101 0.25W 5% 100
SOLIDR531 ERC14GK334 0.25W 10% 330K
CARBONR532 ERD25TJ473 0.25W 5% 47K
METALR533 ERG3FJS821 3W 5% 820
CARBONR534 ERDS2TJ333T 2W 5% 33K
METALR535 ERG1FJS332 1W 5% 3R3K
METALR536 ERG3FJS821 3W 5% 820
SOLIDR538 ERC14GK225 1/4W 5% 2.2M
CARBON R540 ERD25TJ560 0.25W 5% 56
METALR555 ERO25TKF4702 0,25W 1% 47K
WOUND R556 ERF2AKR18P 2W 1% R18
METALR558 ERO25TKF2202 0.25W 10% 22K
METALR559 EROS2TKF1502 2W 1% 15K
METALR560 ERO25TKF3902 0.25W 10% 39K
CARBONR572 ERD25TJ153 0.25W 5% 15K
CARBONR581 ERDS2TJ154 2W 5% 150K
CARBONR582 ERD25TJ274 0.25W 5% 270K
CARBON R583 ERD25TJ822 0.25W 5% 8K2
METAL R586 ERQ2CJP2R2 2W 5% 2R2
METALR591 ERO25TKF9311 0,25W 1% 9K31
S.M.CARBR1458 ERJ6ENF6201V 0.1W 1% 6K2
S.M.CARBR1459 ERJ6ENF4751 0.1W 1% 4K75
S.M.CARBR2481 ERJ6GEYJ473 0.1W 5% 47K
CAPACITORS
ELECT C450 ECA1VM102GB 35V
1nF
FILMC473 ECQV1H104J 50V
100nF
CERAMICC474 ECJ2VF1H103Z 50V
10nF
CERAMIC C521 ECKC3A152J 1KV
1500pF
CERAMICC522 ECKC3A272J 1KV
2.7µF
CERAMICC523 ECKC3A151J 1KV
150pF
FILMC524 ECQM6223JZW 600V
22nF
FILMC525 ECQM4223JZW 400V
22nF
CERAMICC526 ECKC3D101J 2KV
100pF
ELECT C527 ECA1HM010GB 50V
1µF
CERAMIC C528 ECKC3D471JB 2KV
470pF
ELECT C529 ECA1HM100GB 50V
10µF
CERAMICC530 ECKC3A681J 1KV
680pF
CERAMIC C531 ECKC3D102J 2KV
1nF
CERAMIC C551 ECKC3A821J 1KV
820pF
CERAMIC C554 ECKC3D561J 2KV
560pF
FILMC558 ECWH20562JVB 200V
5.6nF
FILMC559 ECQF4103JZH 400V
10nF
FILMC561 ECWH20562JVB 200V
5.6nF
FILMC562 ECQF4822JZH 400V
8.2nF
FILMC573 ECQM4223JZW 400V
22nF
FILMC577 ECWF4304JBP 400V
300nF
FILMC578 ECWF4334JBB 400V
330nF
FILMC579 ECWF4564JBB 400V
560nF
FILMC580 ECWF4684JBB 400V
680nF
FILMC583 ECQB1H223K 50V
22nF
CERAMICC1500 EEVHB1C101P 16V
100pF
S.M. CAPC2360 ECUV1H223KBX 50V
22nF
ELECT C2370 ECA1HM100GB 50V
10µF
S.M. CAPC2392 ECUV1H223KBX 50V
22nF
S.M. CAPC2596 ECUV1H333KBX 50V
33nF
S.M. CAPC2597 ECUV1H333KBX 50V
33nF
TERMINALS AND LINKS
CRT SOCKET JK351 TJS1A5330
