Panasonic TX-32PD30D - Waveform Pattern Table

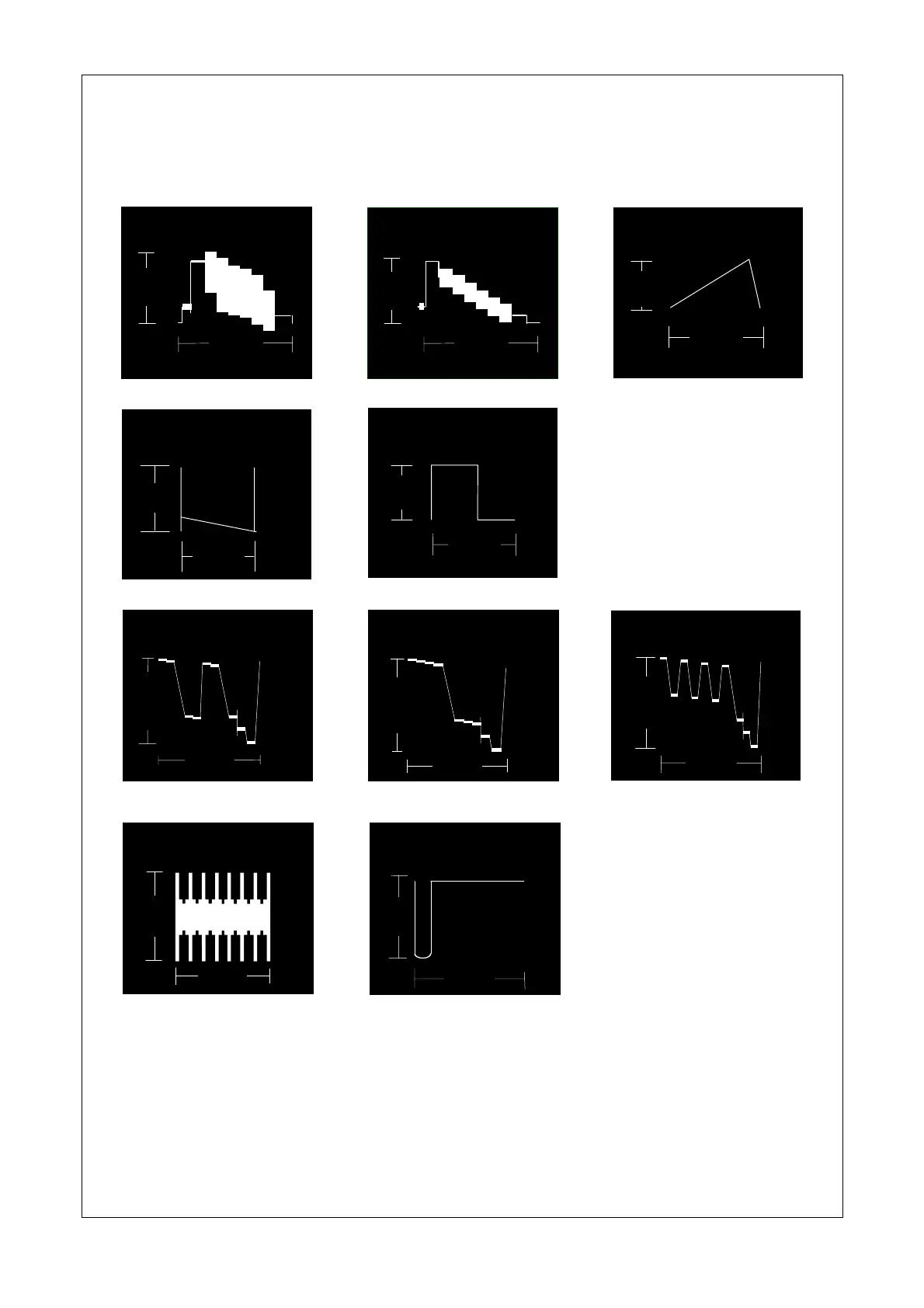

WAVEFORM PATTERN TABLE
Note: All waveforms have been taken using a standard colour bar pattern.
5
Video Out
IC1305 Pin 14
2.2V
64µS
R - Out
IC1309 Pin 11
32µS
4V
G - Out
IC1309 Pin 9
4V
32µS
B - Out
IC1309 Pin 7
4V
32µS
32µS
4V
H - Drive
IC1301 Pin 156
Vert Drive
IC451 Pin 5
10mS
0.9V
Vert Out
IC451 Pin 3
10mS
88V
SVM Out
IC1301 Pin 252
1V
32µS
E/W Out
IC1301 Pin 154
32µS
8V
Luminance In
IC3003 Pin 10
0.9V
32µS
