6 Location of Controls and Components

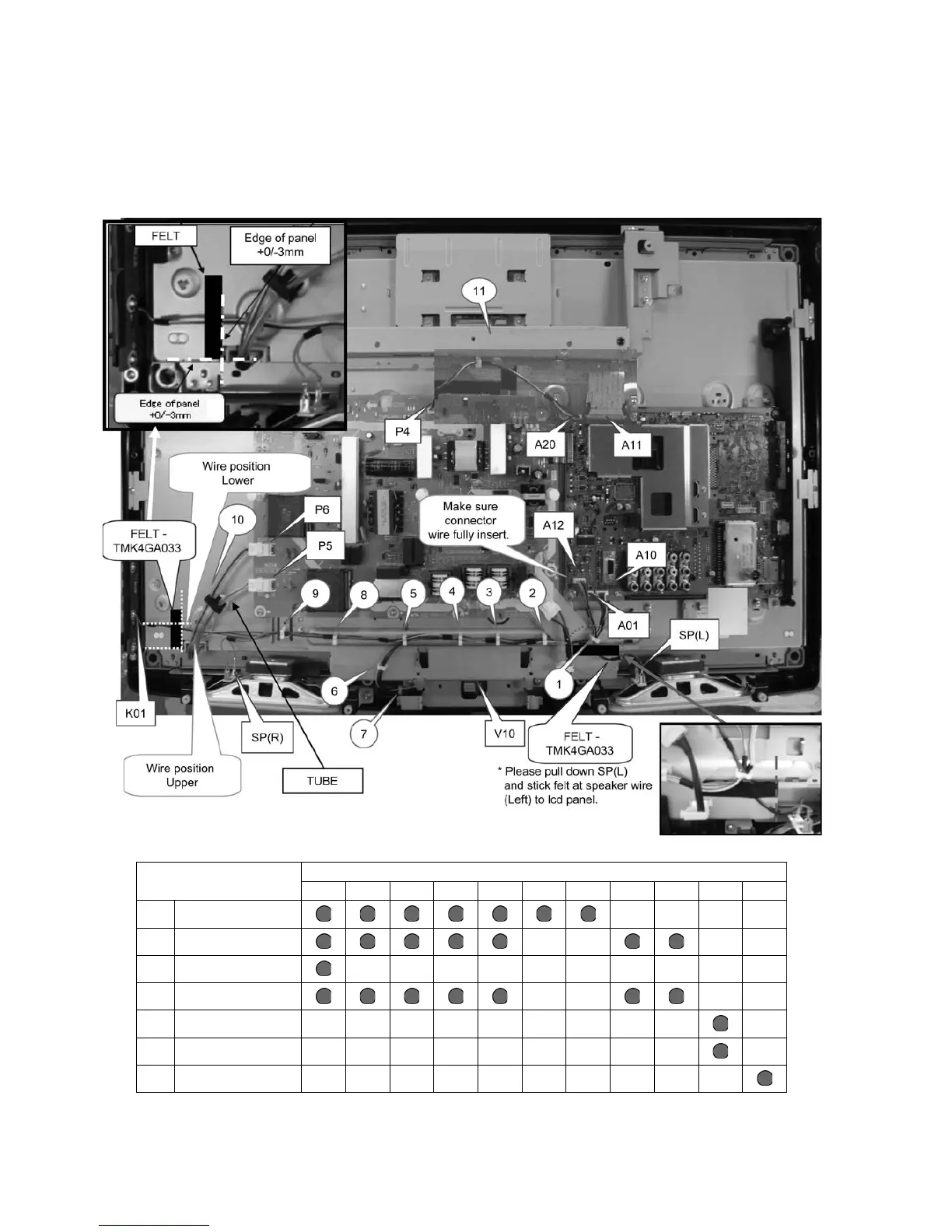

6.1. Wire Dressing
1. Wiring No. 1 ~ No.7
2. Remove dust of terminal of LVDS and PB connector. (by ion blow) Pos. A11
3. Insert LVDS into A11.
Wire
Clamper
1234567891011
No.1 A10 ~ V10
No.2 A01 ~ K01
No.3 A12 ~ SP(L)
No.4 A12 ~ SP(R)
No.5 ~ P5
No.6 ~ P6
No.7 A20 ~ P4
